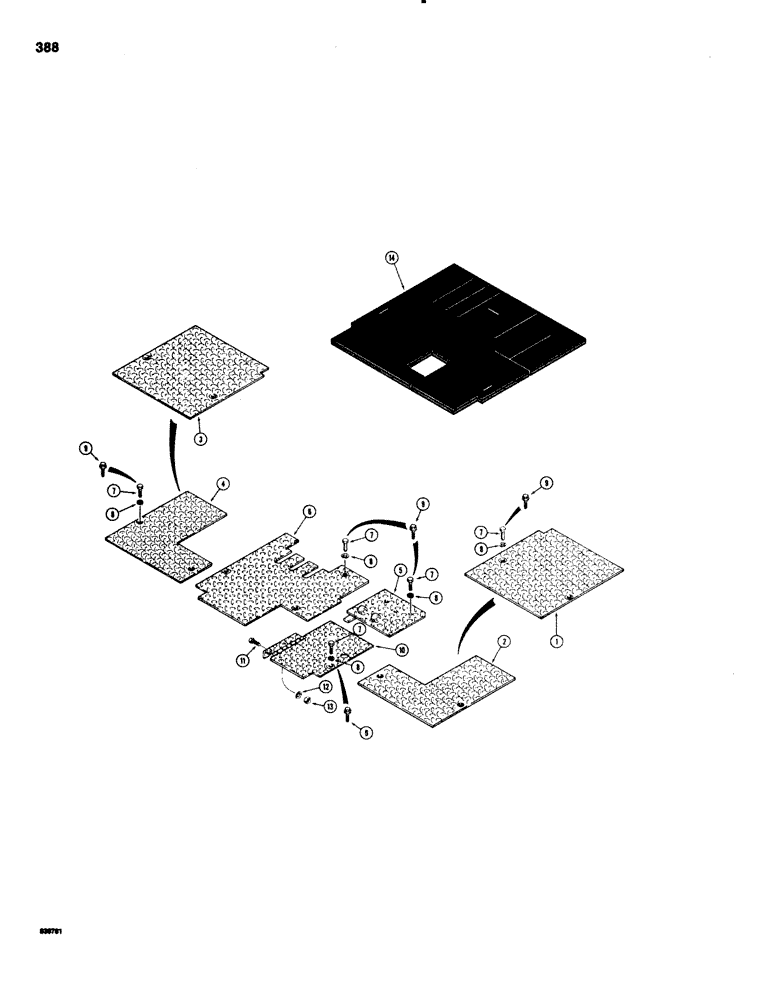

Запчасти Case 1150C (388) - FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

R27193

PLATE - step, right-hand, dozer and drawbar models

1шт.

2

R27150

PLATE - step, right-hand, loader models

1шт.

3

R27192

PLATE - step, left-hand, dozer and drawbar models

1шт.

4

R27149

PLATE - step, left-hand, loader models

1шт.

5

R27198

PLATE

- floor, right-hand, front, accelerator pedal

1шт.

6

R37517

PLATE

- floor, left-hand side, brake pedals

1шт.

7

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

10шт.

8

92-8

LOCK WASHER,1/2"

if used 1/2"

10шт.

9

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces refs. 7 and 8 on some models, if used Hex Flg, 1/2"-13 x 1", G8, Full Thd

10шт.

10

R27194

PLATE - floor, right-hand, rear, hinged

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

14

R29945

MAT

FLOORMAT - models without cab, if used, for floormats used on models with cab see Figures 406 - 410

1шт.
