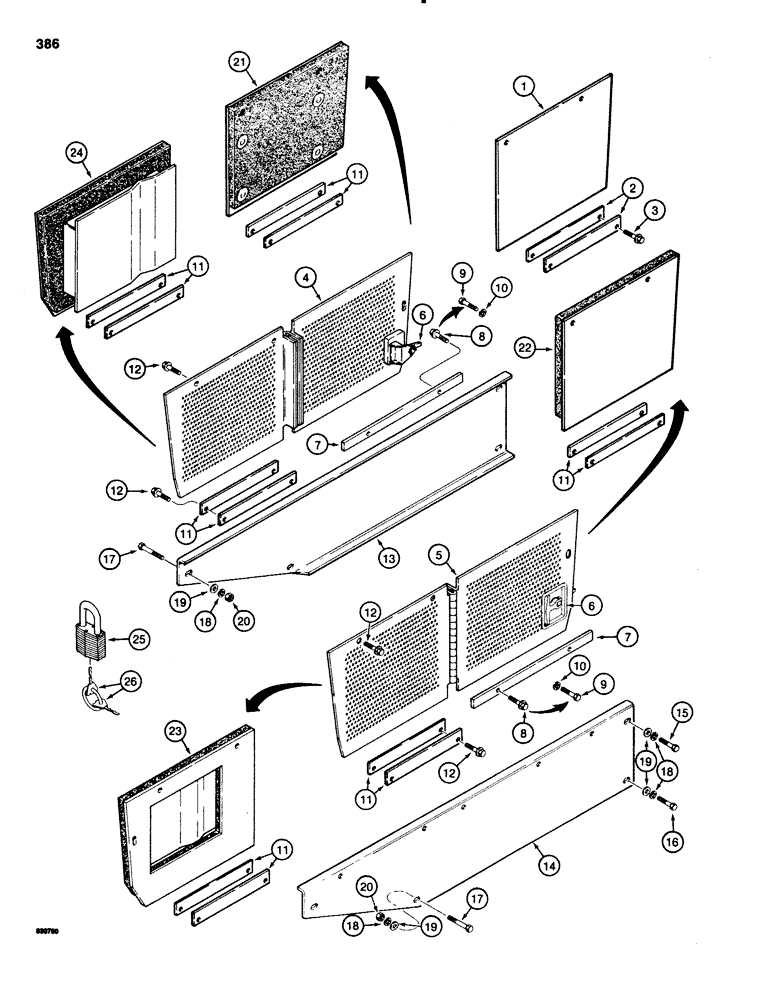

Запчасти Case 1150C (386) - SIDE SHIELDS - LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R35351

PANEL

SHIELD - side, front, if used

2шт.

2

R34023

STRIP

- side shield, lower, used in front with ref. 1 side shield if used

4шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces 1-1/4" long regular hex head bolt, lock washer and flat washer used on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

8шт.

4

R40859

SHIELD

- side, hinged, left-hand, if used

1шт.

5

R40860

SHIELD

- side, hinged, right-hand, if used, Includes: Ref. 6

1шт.

6

S225099

LATCH

- R40859 and R40860 side shields

1шт.

7

R40862

LARGE PLATE

STRIP - side shield, long, used in front with hinged side shields if used

2шт.

8

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , No longer used in this position, replace with refs. 9 and 10 Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

R34023

STRIP

- side shield, short, used in rear postion with hinged side shields, used in front and rear positions with noise reduction side shields

4-8шт.

12

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces 1-1/4" long regular hex head bolt and lock washer used on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

8шт.

13

R35353

SHIELD

- lower, left-hand

1шт.

14

R35354

SHIELD

- lower, right-hand

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

8шт.

19

95-8

WASHER,1/2"

flat 1/2"

8шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

21

R38135

SHIELD

- side, front, left-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

22

R38136

GUARD

SHIELD - side, front, right-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

23

R38163

GUARD

SHIELD - side, rear, right-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

24

R38162

SHIELD

- side, rear, left-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

25

D93753

PADLOCK

- side shields, if used, Includes: Ref. 26

2шт.

26

R29555

KEY

- for Master padlock only

2шт.

26

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
