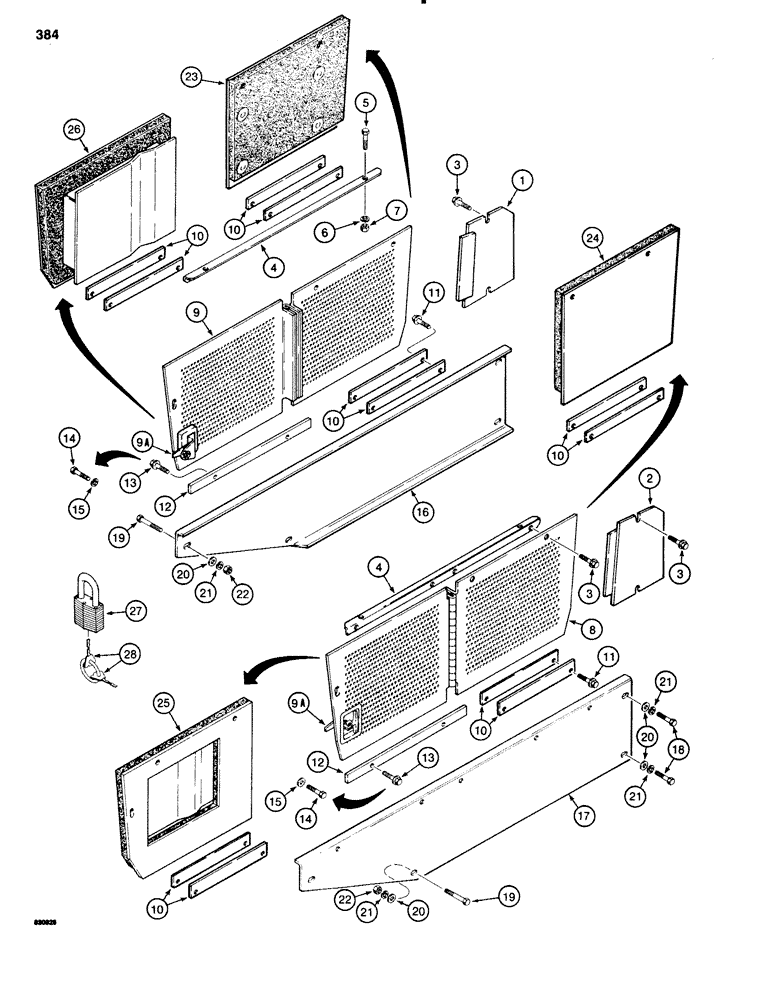

Запчасти Case 1150C (384) - SIDE SHIELDS - DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R27296

COVER

PANEL - access, left-hand

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

2

R27297

COVER

PANEL - access, right-hand

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces 1-1/4" long regular hex head bolt, lock washer and flat washer used on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

8шт.

4

R27299

ANGLE

BRACKET - side shield mounting, upper

2шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

8

R40859

SHIELD

- side, hinged, left-hand, if used

1шт.

9

R40860

SHIELD

- side, hinged, right-hand, if used, Includes: Ref. 9A

1шт.

9a

S225099

LATCH

- R40859 and R40860 side shields

1шт.

10

R34023

STRIP

- side shield, lower, used in front position with hinged side shields, used in front and rear positions with noise reduction side shields

4-8шт.

11

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces 1-1/4" long regular hex head bolt, lock washer and flat washer used on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

12

R40862

LARGE PLATE

STRIP - side shield, lower, rear, used with hinged side shields only

2шт.

13

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , No longer used in this position, replace with refs. 14 and 15 Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

R38233

SHIELD - lower, left-hand

1шт.

17

R35348

SHIELD

- lower, right-hand

1шт.

18

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

95-8

WASHER,1/2"

flat 1/2"

8шт.

21

92-8

LOCK WASHER,1/2"

8шт.

22

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

23

R38135

SHIELD

- side, front, left-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

24

R38136

GUARD

SHIELD - side, front, right-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

25

R38163

GUARD

SHIELD - side, rear, right-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

26

R38139

SHIELD

- side, rear, left-hand, noise reduction, includes pad, if used

1шт.

For noise reduction pads and retainers, see Figure 402.

1шт.

27

D93753

PADLOCK

- side shields, if used, Includes: Ref. 28

2шт.

28

R29555

KEY

- for Master padlock only

2шт.

28

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
