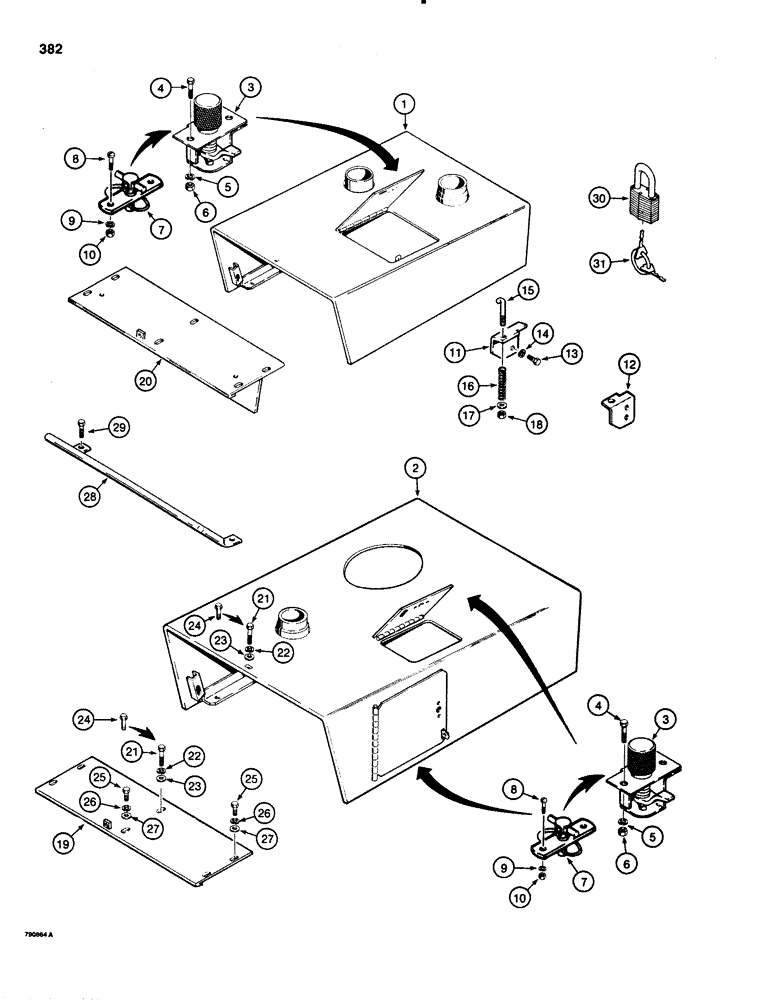

Запчасти Case 1150C (382) - HOOD, DOZER AND DRAWBAR MODELS, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R44860

HOOD

models without turbocharger, if used

1шт.

When replacing a hood that uses R25164 fasteners, Ref. 3, also order L102515 fasteners, Ref. 7, and corresponding hardware.

1шт.

1

R44861

HOOD

forestry, models without turbocharger, if used, not shown

1шт.

When replacing a hood that uses R25164 fasteners, Ref. 3, also order L102515 fasteners, Ref. 7, and corresponding hardware.

1шт.

2

R46062

HOOD

models with turbocharger, air cleaner access on right-hand side, as shown, if used

1шт.

When replacing a hood that uses R25164 fasteners, Ref. 3, also order L102515 fasteners, Ref. 7, and corresponding hardware.

1шт.

2

R44845

HOOD

forestry, models with turbocharger, if used, not shown

1шт.

When replacing a hood that uses R25164 fasteners, Ref. 3, also order L102515 fasteners, Ref. 7, and corresponding hardware.

1шт.

1

R44863

HOOD

models without turbocharger, if used

1шт.

When replacing a hood that uses R25164 fasteners, Ref. 3, also order L102515 fasteners, Ref. 7, and corresponding hardware.

1шт.

2

R46060

HOOD

models with turbocharger, air cleaner access on top of hood, not shown, if used

1шт.

When replacing a hood that uses R25164 fasteners, Ref. 3, also order L102515 fasteners, Ref. 7, and corresponding hardware.

1шт.

3

R25164

FASTENER

access door, if used, all models

1-2шт.

4

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

All models Hex, 1/4"-20 x 3/4", G5, Full Thd

2-4шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , All models 1/4"

2-4шт.

6

25-104

NUT,1/4"-20, G5

All models 1/4"-20, G5

2-4шт.

7

L102515

LATCH

FASTENER - access door, if used, all models

1-2шт.

8

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE - No. 10 - 24 NC x 1/2", all models

2-4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, , All models #10

2-4шт.

10

129-7

NUT,Hex, #10 - 24

hex, No. 10 - 24 NC, all models

2-4шт.

11

R27284

ANGLE

J-bolt retaining, left-hand, all models

1шт.

12

R27285

ANGLE

J-bolt retaining, right-hand, all models

1шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

All models Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

all models 1/2"

4шт.

15

D33958

BOLT

J-type, hood retaining, all models

4шт.

16

F60482

SPRING

J-type bolt, all models

4шт.

17

195-25

WASHER,3/8"

flat, , all models 3/8"

4шт.

18

131-6

LOCK NUT,3/8"-16, GC

hex, self-locking, 3/8" - 16 NC, all models

4шт.

19

R42578

PLATE

hood extension, includes decals, standard, if used, all models

1шт.

20

R49679

COVER

PLATE - hood extension, includes decals, noise reduction, if used, for pad see Figure 402, all models

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used, all models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

if used, all models 1/2"

2шт.

23

195-33

WASHER,1/2"

flat, , if used, all models 1/2"

2шт.

24

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces refs. 21 - 23 on some models, if used, all models Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

All models Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

26

92-6

LOCK WASHER,3/8"

all models 3/8"

3шт.

27

195-25

WASHER,3/8"

flat, , all models 3/8"

3шт.

28

R43780

HANDRAIL - bolt-on, if used, see Figures 362 and 364 for handrail that welds onto main frame upright, all models

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

All models Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

30

D93753

PADLOCK

engine oil dipstick and air cleaner access doors, if used, all models, Includes: Ref. 31

1-2шт.

31

R29555

KEY

for Master padlock only, all models

2шт.

31

D93751

SET OF 2 KEYS

for Yale padlock only, all models

2шт.
