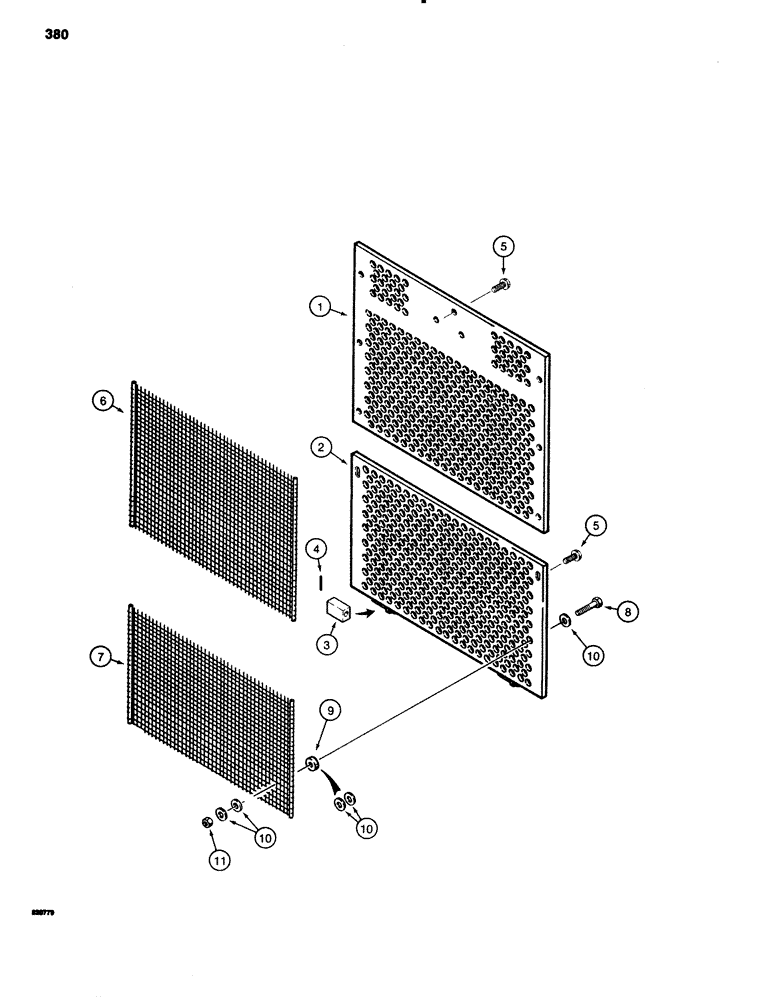

Запчасти Case 1150C (380) - HEAVY DUTY (HINGED) GRILLE AND BRUSH SCREENS (09) - CHASSIS/ATTACHMENTS

1

R40844

GRILLE

- upper, bolt-on

1шт.

2

R41759

SIEVE

GRILLE - lower, hinged at bottom

1шт.

3

R40842

BLOCK

- hinged grille mounting, weld on

2шт.

4

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

5

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated, Replaces 1-1/2" long regular hex head bolt, lock washer, and flat washer used on some models

9шт.

6

R43129

GUARD

SCREEN - brush, inside of grille, upper

1шт.

7

R27890

BRUSH

SCREEN - brush, inside of grille, lower

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

16шт.

9

R20553

WASHER

SPACER - brush screen, no longer used, service each spacer with two 39519 washers (ref. 10)

16шт.

10

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, 3/8"

64шт.

11

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

16шт.
