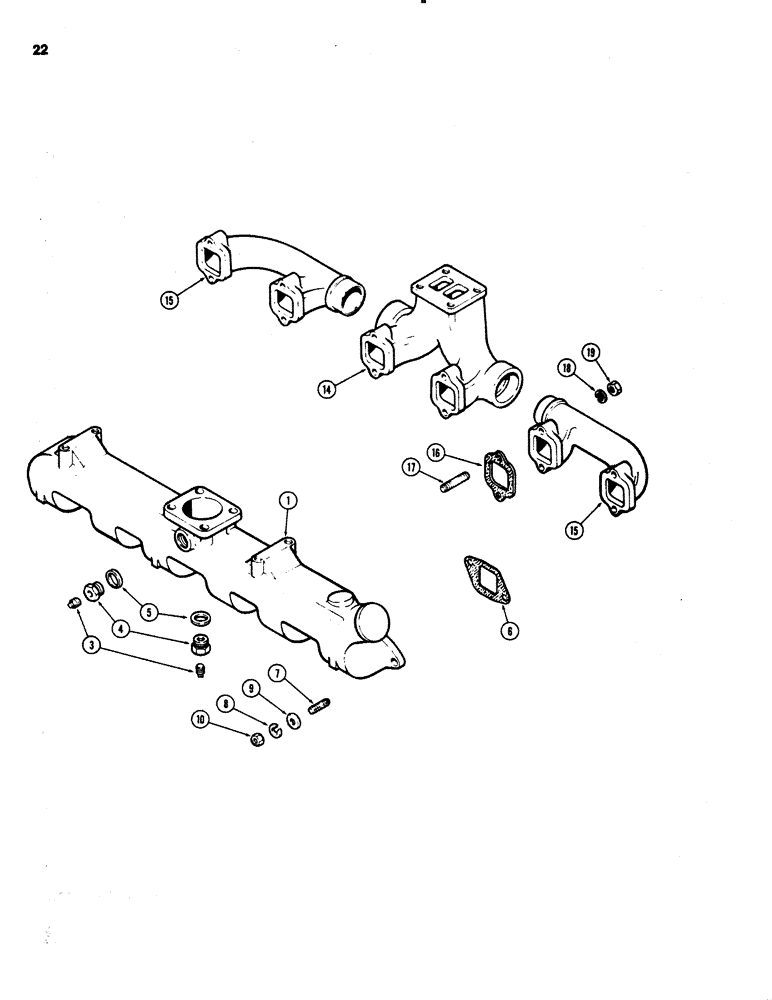

Запчасти Case 1150C (022) - MANIFOLDS, 451BD DIESEL ENGINE, FOR ALTITUDE COMPENSATING ENG. INTAKE MANIFOLD (02) - ENGINE

A154446

MANIFOLD

ASSEMBLY - intake (Replaces A66087), Includes: Ref. 1, 3, 4 and 5

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - (Order A154446)

1шт.

3

221-1849

PLUG

1/8 inch PT, socket head

2шт.

4

L10283

PLUG

heater hole

2шт.

5

A20916

MANIFOLD GASKET

heater hole plug

2шт.

6

A58662

MANIFOLD GASKET

intake manifold

6шт.

7

A59077

STUD

intake manifold, 3/8 x 1-13/16 inch NC

12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

195-25

WASHER,3/8"

3/8 x 13/16 x 1/16 inch (9.52 x 20.64 x 1.59 mm)

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

3/8 inch NC hex

12шт.

14

A76322

MANIFOLD

exhaust, center

1шт.

15

A65917

MANIFOLD

exhaust, ends

2шт.

16

A58895

GASKET

exhaust manifold

6шт.

17

A140924

STUD

exhaust manifold, 3/8 x 2-5/8 inch NC

12шт.

18

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

19

131-903

NUT,3/8"-16

3/8 inch NC hex, Seez-Pruf, exhaust manifold

12шт.
