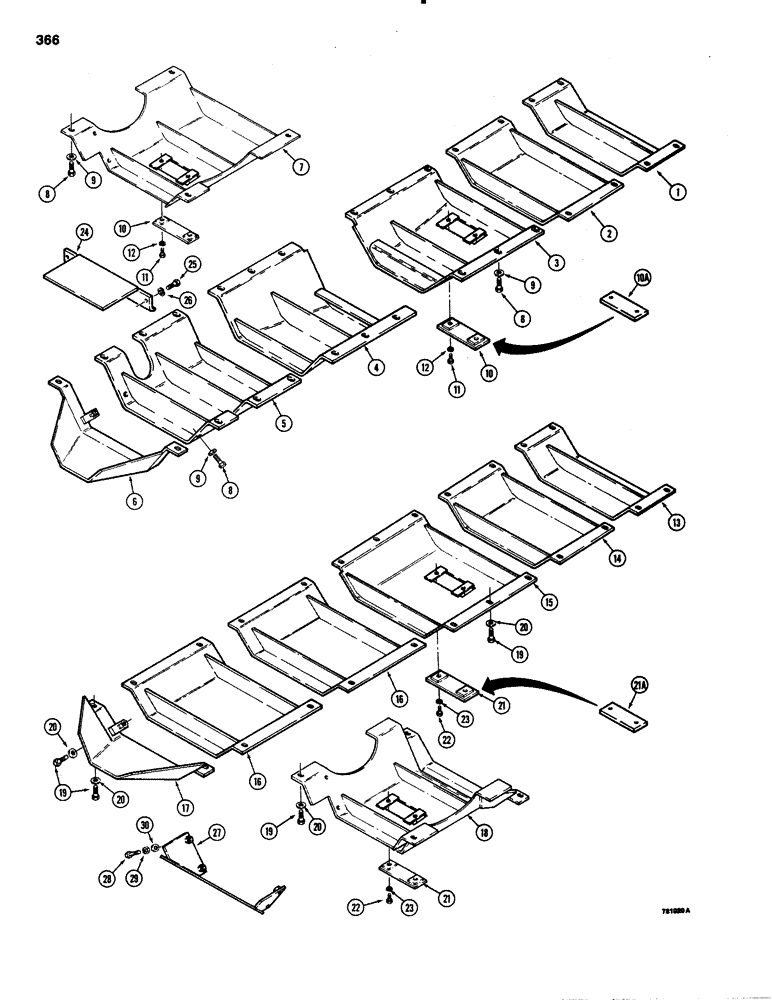

Запчасти Case 1150C (366) - UNDERCARRIAGE GUARDS, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R26803

GUARD ASSY.

cleanout

1шт.

2

R26805

GUARD

center

1шт.

3

R36544

GUARD

oil pan

1шт.

4

R36545

GUARD ASSY.

rear

1шт.

5

R38229

GUARD

at pivot shaft

1шт.

6

R26861

GUARD

rear, transmission, if used

1шт.

7

R26356

GUARD ASSY.

transmission, full, if used

1шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

30шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

hardened

30шт.

10

R26886

PLATE

drain cover, with welded tapped blocks, if used

1-2шт.

10a

R48231

COVER

PLATE - drain cover, flat, one-piece, if used

1-2шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

12

92-6

LOCK WASHER,3/8"

2-4шт.

13

R26803

GUARD ASSY.

cleanout, loader models

1шт.

14

R26805

GUARD

center, loader models

1шт.

15

R26800

oil pan, loader models

1шт.

16

R26797

GUARD

rear, loader models

2шт.

17

R26793

GUARD

rear, transmission, if used, loader models

1шт.

18

R27909

GUARD

transmission, full, if used, loader models

1шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Loader models Hex, 5/8"-11 x 2", G5

24шт.

20

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

hardened, loader models

24шт.

21

R26886

PLATE

drain cover, with welded tapped blocks, if used, loader model

1-2шт.

21a

R48231

COVER

PLATE - drain, flat, one-piece, if used, loader models

1-2шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Loader models Hex, 3/8"-16 x 3/4", G5, Full Thd

2-4шт.

23

92-6

LOCK WASHER,3/8"

loader models 3/8"

2-4шт.

24

R43211

GUARD

rear, transmission, all models with W5A Hyster Winch, if used, all models w/ winch full

1шт.

25

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Rear guard on all models w/ winch used full trans Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear guard on all models w/ winch used full trans 5/8"

2шт.

27

R46337

WASHER

W5B Hyster Winch, if used, rear guard on all models w/ winch used full trans

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Rear guard on all models w/ winch used full trans Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

rear guard on all models w/ winch used full trans 1/2"

4шт.

30

95-8

WASHER,1/2"

flat, rear guard on all models w/ winch used full trans 1/2"

4шт.
