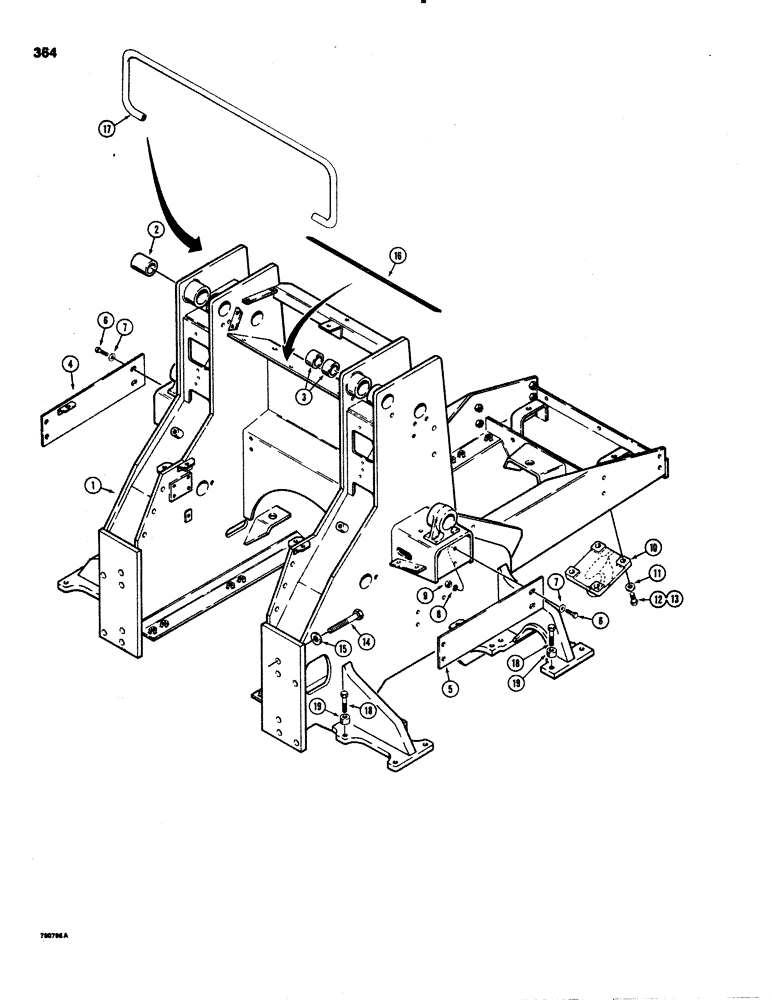

Запчасти Case 1150C (364) - MAIN FRAME AND PULL HOOK, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R40601

FRAME ASSY

FRAME - engine and main, Includes: Ref. 2 and 3

1шт.

2

D47245

BUSHING

- outer, if used

2шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- inner, 1-1/8" (28 mm) long, use two per side, replaces single 2-1/4" (57 mm) long bushing used in production, if used

4шт.

4

R27101

PLATE - side, left-hand

1шт.

5

R27102

PLATE - side, right-hand

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

7

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

10

71671

PLATE ASSY.

HOOK - pull, if used

1шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, used on all models

4шт.

12

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used on models with pull hook Hex, 3/4"-10 x 2", G5

4шт.

13

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used on models without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

14

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 2-1/2", grade 8, use with Loctite

12шт.

15

D30196

WASHER

- hardened, 1"

12шт.

16

R39424

SEAL - cab models

1шт.

17

R43780

HANDRAIL - weld on, if used, for bolt-on handrail see Figure 382 (Replaced R25551)

1шт.

18

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

20шт.

19

R30398

SPACER

- mounting

20шт.
