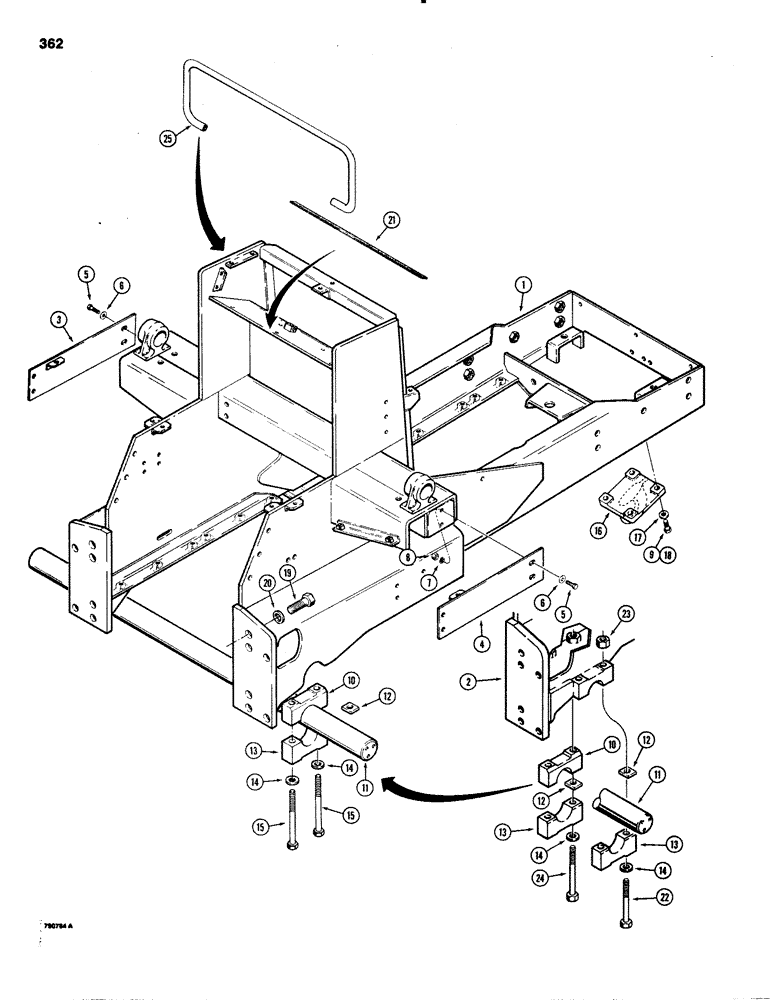

Запчасти Case 1150C (362) - MAIN FRAME, PIVOT SHAFT, AND PULL HOOK, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R36529

FRAME

- engine and main, 62" (1575 mm) gauge standard dozer and drawbar models

1шт.

2

R38225

FRAME

- engine and main, 74" (1880 mm) gauge LGP dozer models

1шт.

3

R26878

PLATE - side frame, left-hand

1шт.

4

R26879

PLATE - side frame, right-hand

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

6

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

9

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

Used on models without pull hook Hex, 3/4"-10 x 1 1/4", G5

4шт.

10

R26859

BODY

CLAMP - pivot shaft, top, 4 used on 62" (1575 mm) gauge standard dozer models and drawbar models, 2 used on 74" (1880 mm) gauge LGP dozer models

2-4шт.

11

R26860

SHAFT

- pivot, 62" (1575 mm) gauge standard dozer models and drawbar models

1шт.

11

R31363

SHAFT

- pivot, 74" (1880 mm) gauge LGP dozer models

1шт.

12

R26802

SPACER

- clamp, all models

4шт.

13

R26857

CLAMP

- pivot shaft, bottom, all models

4шт.

14

D30196

WASHER

- hardened, 1", all models

8шт.

15

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

- hex head, 1" - 8 NC x 9", used on 62" (1575 mm) gauge standard dozer models and drawbar models

8шт.

16

71671

PLATE ASSY.

HOOK - pull, if used

1шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, used on all models

4шт.

18

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used on models with pull hook Hex, 3/4"-10 x 2", G5

4шт.

19

26-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex head, 1" - 8 NC x 1-1/2", grade 8, use with Loctite

12шт.

20

D30196

WASHER

- hardened, 1"

12шт.

21

R39424

SEAL - cab models, if used

1шт.

22

15-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

- hex head, 1" - 8 NC x 8", used on 74" (1880 mm) gauge LGP dozer models, outer clamps

4шт.

23

25-1016

NUT,1"-8, G5

Used on 74" (1880 mm) gauge LGP dozer models, outer clamps 1"-8, G5

4шт.

24

15-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

- hex head, 1" - 8 NC x 9", used on 74" (1880 mm) gauge LGP dozer models, inner clamps

4шт.

25

R26644

HANDRAIL - weld on, if used, for bolt-on handrail see Figure 382

1шт.
