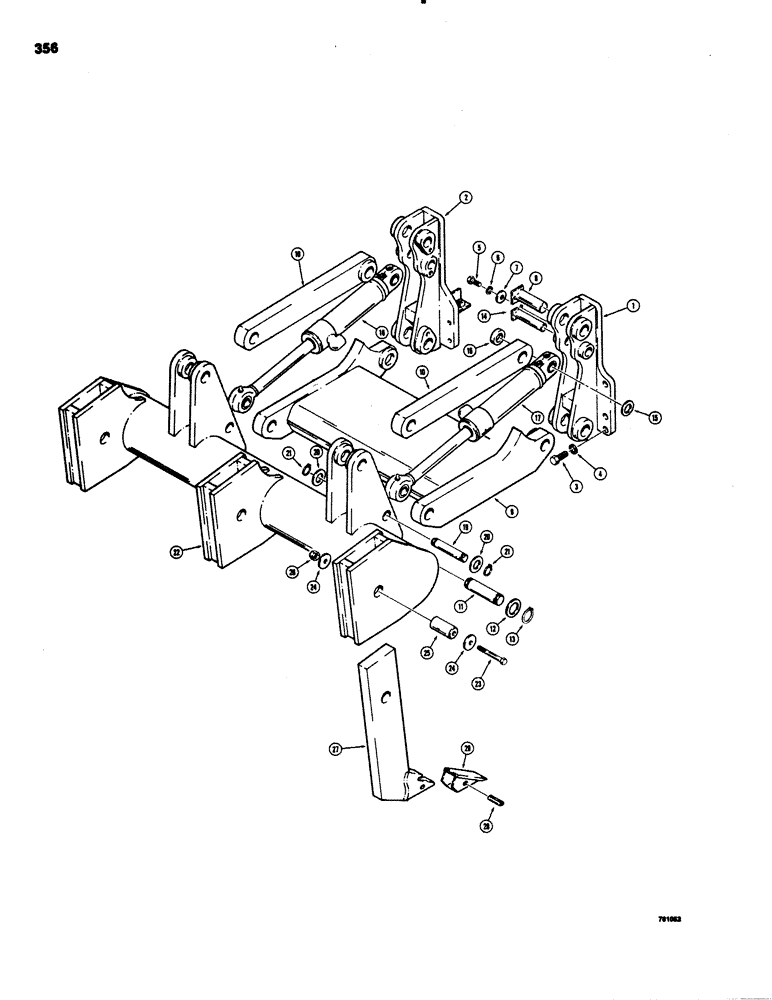

Запчасти Case 1150C (356) - RIPPER (09) - CHASSIS/ATTACHMENTS

1

R38913

PLATE

BRACKET - mounting, right-hand

1шт.

2

R38914

PLATE

BRACKET - mounting, left-hand

1шт.

3

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4", grade 8

18шт.

4

D30196

WASHER

- hardened

18шт.

5

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

6шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

195-41

WASHER,5/8"

6шт.

8

R38745

PIN

- mounting, lower and upper, Serial Range: arms-brackets

4шт.

9

R38907

ARM

- ripper, lower

1шт.

10

R36114

ARM

- ripper, upper

2шт.

11

R26748

PIN

- mounting, lower and upper arms to tool bar

4шт.

12

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2"

8шт.

13

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

8шт.

14

R38178

PIN

- mounting, cylinder

2шт.

15

R26690

WASHER

SPACER - washer, outer

2шт.

16

R26689

RING

SPACER - washer, inner

2шт.

17

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - ripper, right-hand, parts list Figure 292

1шт.

18

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - ripper, left-hand, parts list Figure 292

1шт.

19

R30449

PIN

- cylinder to tool bar

2шт.

20

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4"

4шт.

21

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

22

R36116

TOOL

BAR - tool, ripper shank

1шт.

23

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex head, 5/8" - 11 NC x 5-1/2"

3шт.

24

195-44

WASHER,5/8" x 2 3/8" x .165"

- flat, 5/8"

6шт.

25

R26693

PIN

- mounting, shank

3шт.

26

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 11 NC

3шт.

27

R38915

SHANK

- ripper tooth

3шт.

28

L32090

PIN

PIN - flex, No. 25

3шт.

29

R26685

TOOTH

POINT - tooth, No. 25

3шт.
