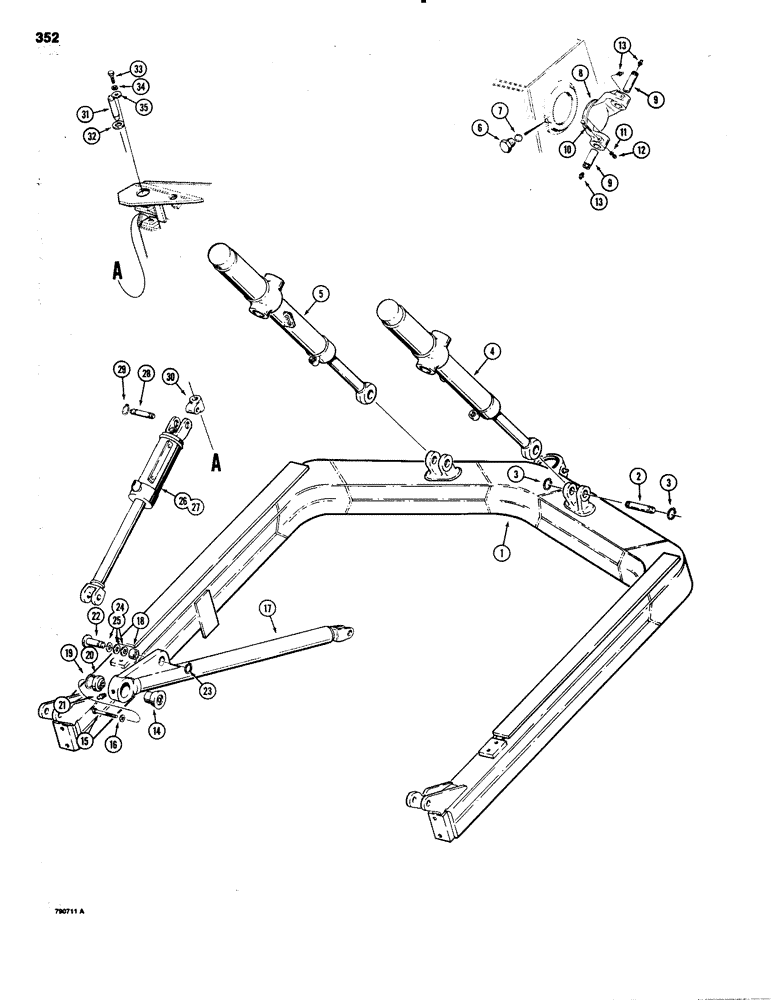

Запчасти Case 1150C (352) - ANGLE TILT PITCH DOZER MODELS, CYLINDER AND STRUT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

C-FRAME - dozer, see Figure 348 for correct C-frame

1шт.

2

D32930

PIN,38.1mm OD x 127mm L

- lift, Serial Range: cylinder-C-frame

2шт.

3

D25279

SNAP RING,M35, Int

- pin

4шт.

4

G101270

CYLINDER

- lift, right-hand, parts list Figure 284

1шт.

5

G101271

CYLINDER

- lift, left-hand, parts list Figure 284

1шт.

6

D28481

PLUG

- trunnion

2шт.

7

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

50шт.

8

R45785

TRUNNION

- lift

2шт.

9

D36176

PIN,38.1mm OD x 63.5mm L

- trunnion

4шт.

10

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

14

R46802

PIN

- strut to slide bracket

2шт.

15

26-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

- hex head, 1" - 8 NC x 4-1/2", grade 8

2шт.

16

D51030

WASHER

- special, pin retaining

2шт.

R38538

STAY

STRUT ASSEMBLY - dozer angle, Includes: Ref. 17 - 21

2шт.

17

NSS

NOT SOLD SEPARAT

STRUT - dozer angle

1шт.

18

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- tilt cylinder mounting

1шт.

19

49477

RING, SNAP

3.156", Int, #315, bushing

1шт.

20

D23601

HOUSING

BUSHING - self-aligning

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

D52386

PIN

- tilt, Serial Range: cylinder-strut

2шт.

23

D25279

SNAP RING,M35, Int

- pin

2шт.

24

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- shim, 1/8" (2.6 mm) thick, if used

6шт.

25

D30042

WASHER

- shim, 3/16" (4.8 mm) thick, if used

4шт.

26

G101268

CYLINDER

- tilt, right-hand, parts list Figure 288

1шт.

27

G101269

CYLINDER

- tilt, left-hand, parts list Figure 288

1шт.

28

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - tilt cylinder and strut to dozer blade

4шт.

29

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

8шт.

30

70315

UNIVERSAL JOINT

BRACKET - blade mounting

4шт.

31

D95312

PIN

-, Serial Range: bracket-blade

4шт.

32

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat, 1-1/2", use as shim

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

R29595

WASHER

- flat, pin retaining

4шт.
