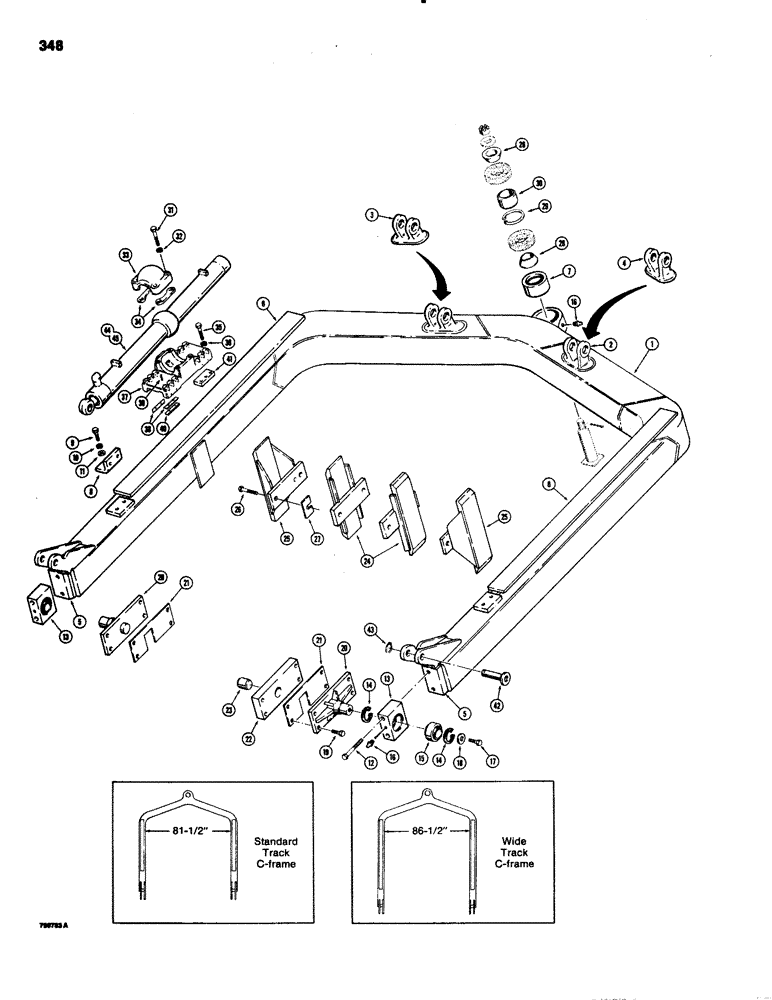

Запчасти Case 1150C (348) - ANGLE TILT PITCH DOZER MODELS, C-FRAME AND ANGLE CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R43701

FRAME ASSY

C-FRAME ASSEMBLY - standard track, see illustration for identification, Includes: Ref. 2 - 7, must also order refs. 8 - 11 below

1шт.

R43701 standard track C-frame models are originally equipped with 16" or 17" track shoes. R43702 wide track C-frame models are originally equipped with 18", 20", or 22" track shoes.

1шт.

Included in Kit R37982

1шт.

1

R43702

FRAME ASSY

C-FRAME ASSEMBLY - wide track, see illustration for identification, Includes: Ref. 2 - 7, must also order refs. 8 - 11 below

1шт.

R43701 standard track C-frame models are originally equipped with 16" or 17" track shoes. R43702 wide track C-frame models are originally equipped with 18", 20", or 22" track shoes.

1шт.

Included in Kit R37983

1шт.

2

NSS

NOT SOLD SEPARAT

LUG - left-hand and right-hand, welds inside C-frame, if used

2шт.

3

R44236

WELDABLE LUG

LUG - left-hand, welds on top of C-frame, if used

1шт.

4

R44237

WELDABLE LUG

LUG - right-hand, welds on top of C-frame, if used

1шт.

R37491

KIT

- trunnion block, R43701 standard track C-frame, includes one tapped block (Ref. 5) and instructions, Includes: Ref. 5

2шт.

R37490

KIT

- trunnion block, R43702 wide track C-frame, includes one tapped block (Ref. 5) and instructions, Includes: Ref. 5

2шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - tapped

1шт.

R29559

SLIDE

KIT - slide rail, both C-frames, Includes: Ref. 6

2шт.

6

D51086

SLIDE

RAIL - slide

1шт.

R48124

INSERT

KIT - sleeve, pivot casting rework, Includes: Ref. 7 & instructions

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE - pivot casting rework

1шт.

8

R44949

SUPPORT

- guard, bolt-on, may replace welded guard on some models, if used

2шт.

9

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

R24718

WASHER

- hardened, 1/2"

4шт.

12

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- hex head, 3/4" - 10 NC x 6-1/2", grade 8

4шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

R32525

BLOCK

ASSEMBLY - trunnion, Includes: Ref. 13 - 15

2шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - trunnion

1шт.

14

L13903

SNAP RING,3.562", Int, #354

Ring, Snap, , bushing 3.562", Int, #354

2шт.

15

D51018

SPHERICAL BEARING,57.15mm ID x 90.49mm OD x 50.01mm W

- self-aligning

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

17

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

18

R25495

DISC

WASHER - special

2шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

19

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

standard track Hex, 3/4"-10 x 2", G8

8шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

19

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex head, 3/4" - 10 NC x 3-3/4", grade 8, wide track

8шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

20

R34513

TRUNNION

- push

2шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

21

R32808

SHIM,.059" Thk

Trunnion .059" Thk

1шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

22

R26682

PLATE

SPACER - trunnion, wide track models only

2шт.

23

R26764

PIPE CLAMP

PIN - dowel, wide track models only

2шт.

24

R32806

BRACKET

- rub, standard track, if used

2шт.

25

R32804

BRACKET

- rub, wide track, if used

2шт.

26

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

4шт.

27

R32807

SHIM,.059" Thk

Rub bracket .059" Thk

1шт.

28

R37022

SPACER

- bushing

2шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

29

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, , bushing 4.331", Int, #433

1шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

30

R37021

SPHERICAL BEARING,63.5mm ID x 111.13mm OD x 64.64mm W

- self-aligning, blade mounting

1шт.

Included in Kit R37982

1шт.

Included in Kit R37983

1шт.

31

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

8шт.

32

92-8

LOCK WASHER,1/2"

8шт.

33

D51009

CAP

- slide bracket

2шт.

34

D51024

SHIM,.030" Thk

Cap .030" Thk

1шт.

35

26-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex head, 1/2" - 13 NC x 3", grade 8

24шт.

36

92-8

LOCK WASHER,1/2"

24шт.

37

R46805

SUPPORT

BRACKET - slide, interchangeable with R30998 slide bracket

2шт.

38

R31721

SHIM,.016" Thk

Slide bracket .016" Thk

1шт.

39

135-450

GROOVED PIN,5/16" x 1", Type B, Hardened

PIN, GROOVED, , Tapered 5/16" x 1", Type B, Hardened

32шт.

40

R30874

SPACER

STRIP - wear

16шт.

41

R30999

BLOCK

- slide

8шт.

42

D51014

PIN

- mounting, angle cylinder

2шт.

43

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

44

G101267

CYLINDER

- angle, standard track, if used, parts list Figure 290

2шт.

45

G101266

CYLINDER ASSY.

CYLINDER - angle, wide track, if used, parts list Figure 290

2шт.

R37982

FRAME

KIT - C-frame replacement, R43701 standard track, Includes: Ref. 1, 12, 16, 17, 18, 19, 20, 21, 28, 29 & 30

1шт.

R37983

FRAME

KIT - C-frame replacement, R43702 wide track, Includes: Ref. 1, 12, 16, 17, 18, 19, 20, 21, 28, 29 & 30

1шт.
