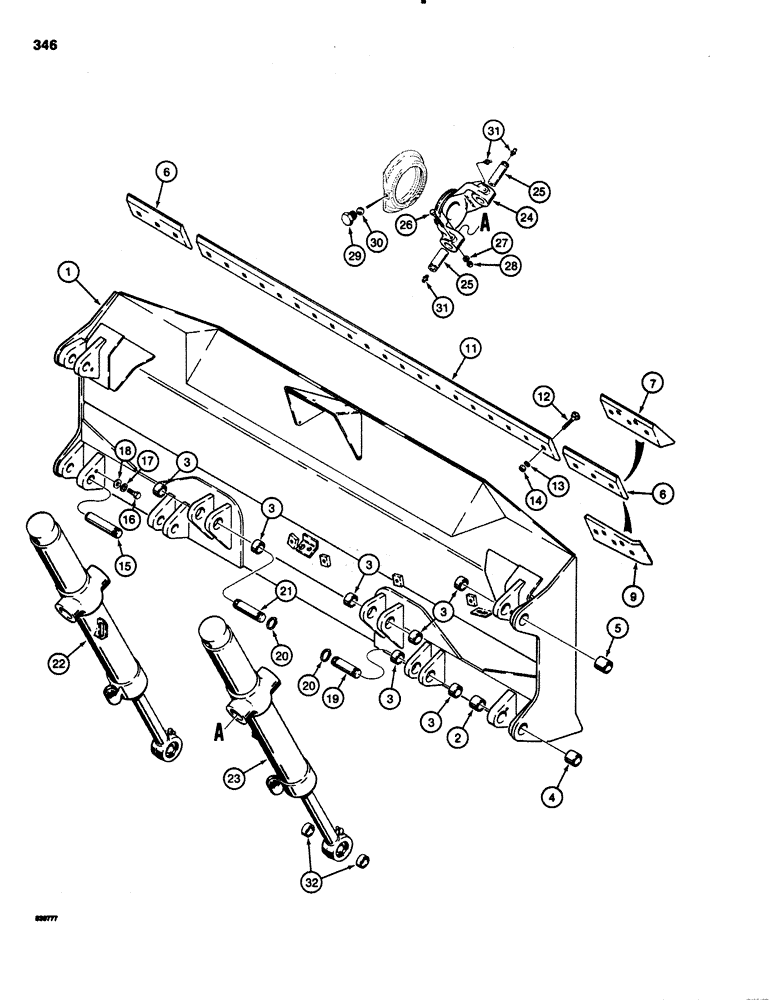

Запчасти Case 1150C (346) - TILT DOZER, BLADE AND LIFT CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R42521

BLADE

ASSEMBLY - dozer, 96" (2438 mm) wide, without hose guard, not shown, Includes: Ref. 2 - 5

1шт.

1

R42522

BLADE

ASSEMBLY - dozer, 104" (2642 mm) wide, with hose guard, Includes: Ref. 2 - 5

1шт.

1

R42524

BLADE

ASSEMBLY - dozer, 124" (3150 mm) wide, with hose guard, Includes: Ref. 2 - 5

1шт.

2

D34354

BUSHING,44.68mm ID x 53.98mm OD x 38.1mm L

- 1-1/2" (38 mm) long

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- 1" (25 mm) long

7шт.

4

D33054

BUSHING

- 1-5/8" (41 mm) long

1шт.

5

R26655

BUSHING

- 1-7/8" (48 mm) long

1шт.

6

R42503

END ASSY.

CUTTING EDGE - end, standard, interchangeable with R26567 standard cutting edge, if used

2шт.

7

R31855

EDGE, CUTTING

CUTTING EDGE - right-hand end, heavy duty, (With 5 Bolt Holes) if used

1шт.

8

R31854

EDGE, CUTTING

CUTTING EDGE - left-hand end, heavy duty, (With 5 Bolt Holes) if used, not shown

1шт.

9

R42509

END ASSY.

CUTTING EDGE - right-hand end, hot cupped, if used

1шт.

10

R42508

END ASSY.

CUTTING EDGE - left-hand, hot cupped, if used, not shown

1шт.

11

R42529

EDGE, CUTTING

CUTTING EDGE - center, used with 96" (2438 mm) wide blade, interchangeable with D29981 cutting edge, uses 18 bolts

1шт.

11

R42530

KNIFE

CUTTING EDGE - center, used with 104" (2642 mm) wide blade, interchangeable with R22973 cutting edge, uses 20 bolts

1шт.

11

R42532

EDGE, CUTTING

CUTTING EDGE - center, used with 124" (3150 mm) wide blade, uses 25 bolts

1шт.

12

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8" - 11 NC x 2-1/4", grade 8

1шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8

1шт.

15

R26723

PIN

- push beam to blade, outer

1шт.

16

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

19

R26724

AXLE PIN

PIN - push beam to blade, inner

2шт.

20

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

8шт.

21

R26725

PIN,152.4mm OD x 44.45mm L

- Lift, Serial Range: cylinder-blade

2шт.

22

REF

INSTRUCTION

CYLINDER - dozer lift, left-hand, parts list Figure 282

1шт.

23

REF

INSTRUCTION

CYLINDER - dozer lift, right-hand, parts list Figure 282

1шт.

24

R45785

TRUNNION

- lift cylinder

2шт.

25

D36176

PIN,38.1mm OD x 63.5mm L

- trunnion

4шт.

26

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

29

D28481

PLUG

- trunnion

2шт.

30

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

50шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

6шт.

32

R26587

SPACER

- lift cylinder rod

4шт.
