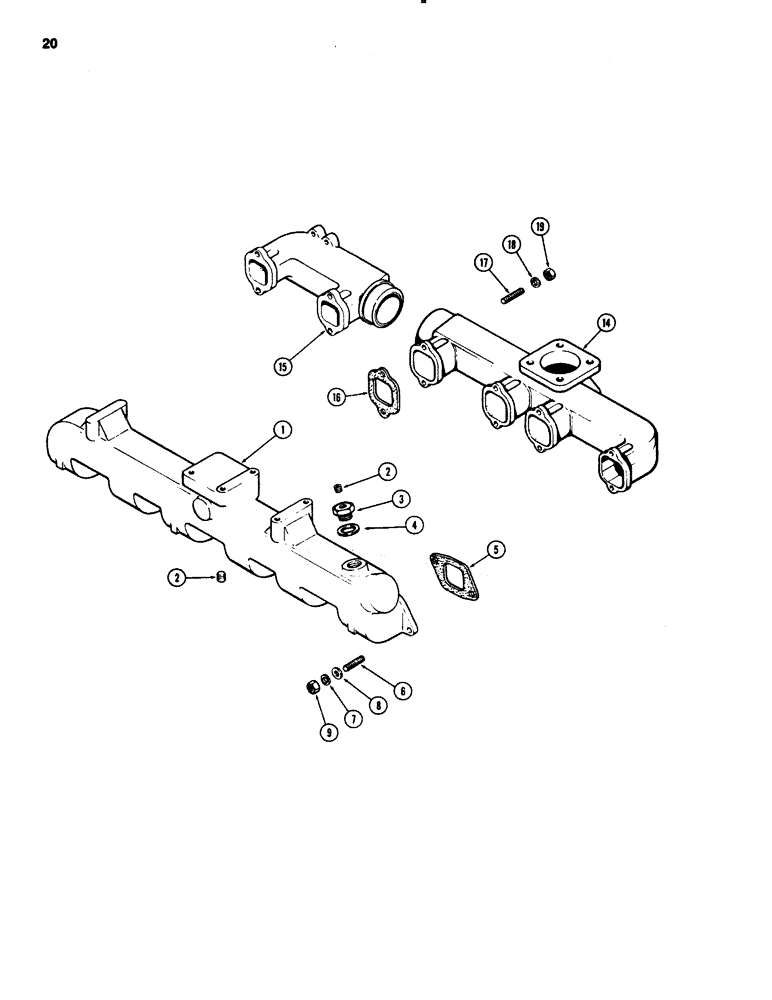

Запчасти Case 1150C (020) - MANIFOLDS, 451BD DIESEL ENGINE, FOR NATURALLY ASPIRATED ENG INTAKE MANIFOLD (02) - ENGINE

A154447

TUBE ASSY.

MANIFOLD ASSEMBLY - intake (Replaces A66099), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - (Order A154447)

1шт.

2

221-1849

PLUG

1/8 inch PT, socket head

2шт.

3

L10283

PLUG

heater hole

1шт.

4

A20916

MANIFOLD GASKET

heater hole plug

1шт.

5

A58662

MANIFOLD GASKET

intake manifold

6шт.

6

A59077

STUD

intake manifold, 3/8 x 1-13/16 inch NC

12шт.

7

92-6

LOCK WASHER,3/8"

12шт.

8

195-25

WASHER,3/8"

3/8 x 13/16 x 1/16 inch

12шт.

9

25-166

NUT,3/8"-16, G5, Hvy

3/8 inch NC hex

12шт.

14

A64966

MANIFOLD

exhaust, front

1шт.

15

A58664

MANIFOLD

exhaust, rear

1шт.

16

A58666

MANIFOLD GASKET

exhaust manifold

6шт.

17

A59077

STUD

exhaust manifold, 3/8 x 1-13/16 inch NC

12шт.

18

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

19

131-903

NUT,3/8"-16

3/8 inch NC hex Seez-Pruf, exhaust manifold

12шт.
