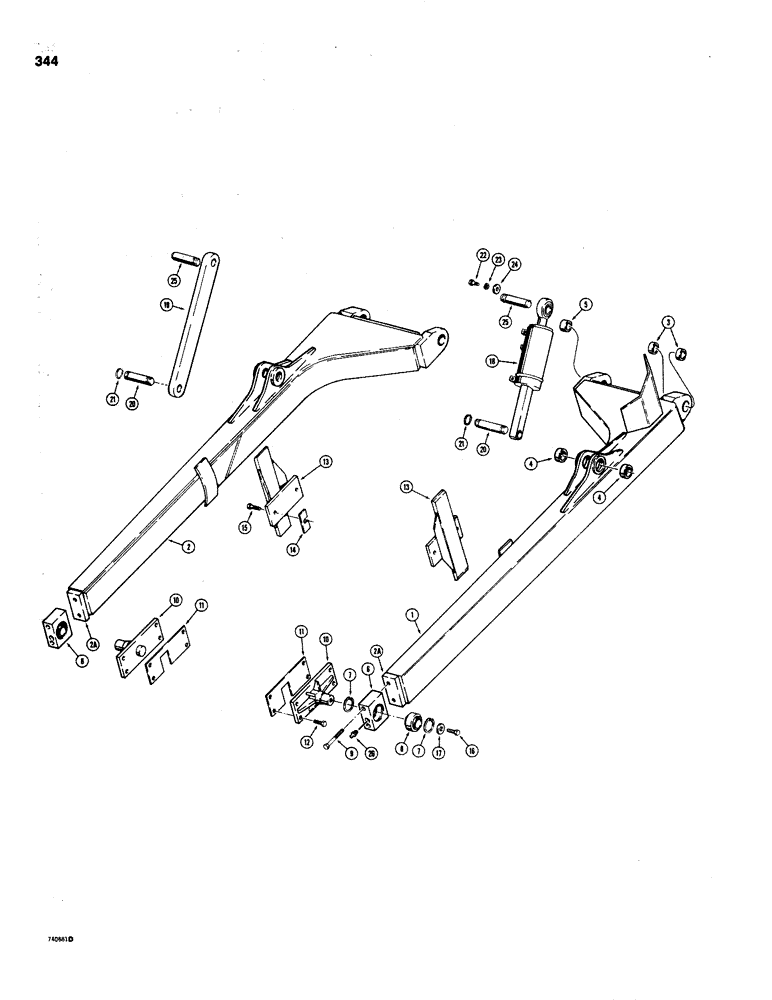

Запчасти Case 1150C (344) - TILT DOZER MODELS, PUSH BEAMS, TILT CYLINDER AND STRUT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

R42809

FRAME

PUSH BEAM - right-hand

1шт.

2

R42808

FRAME

PUSH BEAM - left-hand, Includes: Ref. 2A - 5

1шт.

R37489

BLOCK

KIT - trunnion block, R42809 and R42808 push beams, Includes: Ref. 2A

1шт.

2a

NSS

NOT SOLD SEPARAT

BLOCK - tapped

1шт.

3

D49287

BUSHING

- blade mounting, outer, right-hand push beam only

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tilt cylinder mounting, right-hand push beam only

2шт.

5

D40089

BUSHING

- blade mounting, inner, right-hand push beam only

1шт.

R32525

BLOCK

CAP ASSEMBLY - push beam, Includes: Ref. 6 - 8

2шт.

6

NSS

NOT SOLD SEPARAT

BLOCK - cap

1шт.

7

L13903

SNAP RING,3.562", Int, #354

Ring, Snap, , bushing 3.562", Int, #354

2шт.

8

D51018

SPHERICAL BEARING,57.15mm ID x 90.49mm OD x 50.01mm W

- self-aligning

1шт.

9

26-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 8

- hex head, 3/4" - 10 NC x 6-1/2", grade 8

4шт.

10

R34513

TRUNNION

- push, 96" (2438 mm) wide blade

2шт.

10

R34517

TRUNNION

- push, 104" (2642 mm) and 124" (3150 mm) wide blades

2шт.

11

R32808

SHIM,.059" Thk

Trunnion .059" Thk

1шт.

12

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

8шт.

13

R31816

BRACKET

- rub, 104" (2642 mm) and 124" (3150 mm) wide blades

2шт.

13

R32802

BRACKET

- rub, 96" (2438 mm) wide blade

2шт.

14

R32807

SHIM,.059" Thk

Rub bracket .059" Thk

1шт.

15

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

4шт.

16

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

17

R25495

DISC

WASHER - special

2шт.

18

G33933

CYLINDER BLOCK

CYLINDER - tilt, parts list Figure 286

1шт.

19

R37276

STRUT

- blade, left-hand side only

1шт.

20

R26724

AXLE PIN

PIN - strut and tilt cylinder to push beams

2шт.

21

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

25

R26726

PIN

- strut and tilt, Serial Range: cylinder-blade

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.
