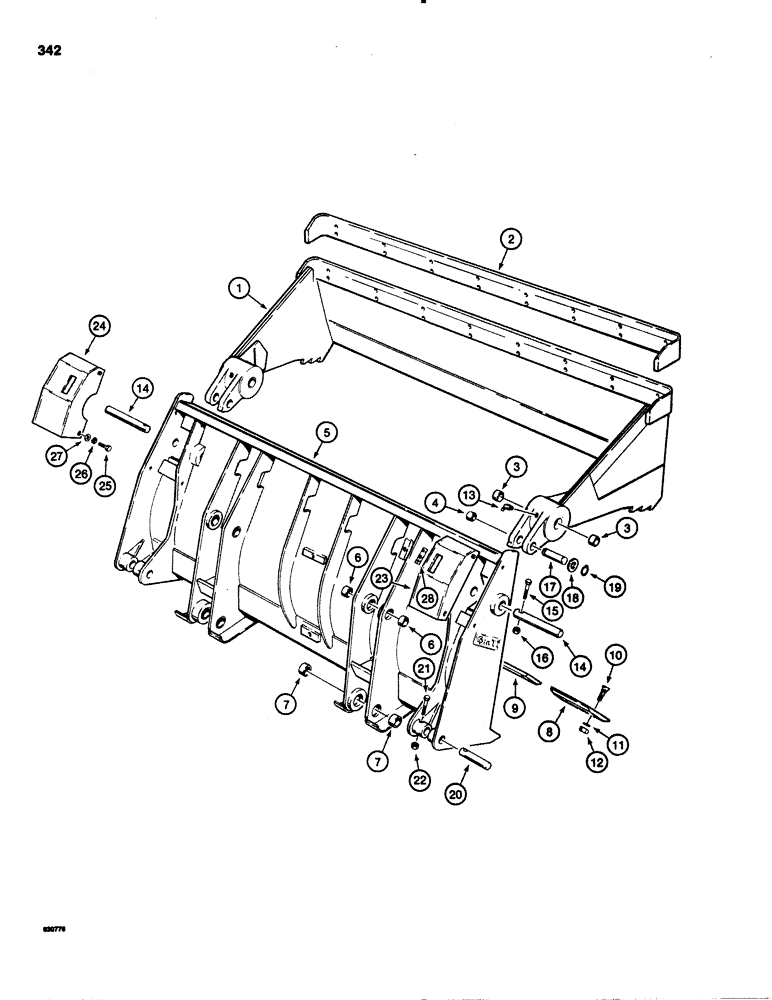

Запчасти Case 1150C (342) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

R25493

BUCKET ASSEMBLY - clam, machinery item, see Figure 002 for ordering, Includes: Ref. 1 - 28

1шт.

1

R30011

CLAMSHELL BUCKET

CLAM ASSEMBLY - bucket, Includes: Ref. , Includes: Ref. 2 - 4

1шт.

R53329

EDGE

BLADE welded, on back of clam assembly

1шт.

2

R29987

BLADE

CUTTING EDGE - clam assembly

1шт.

3

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- clam pivot

4шт.

4

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- cylinder pivot

4шт.

5

R48991

HALF BLADE

BLADE ASSEMBLY - bucket (Replaced R25492), Includes: Ref. 6 and 7

1шт.

6

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- upper

4шт.

7

R26958

BUSHING

- lower

4шт.

8

D50492

BLADE

CUTTING EDGE - blade, ends

2шт.

9

D50497

BLADE

CUTTING EDGE - blade, center

1шт.

10

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

PLOW BOLT - 3/4" - 10 NC x 2-1/2"

15шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

15шт.

12

25-1012

NUT,3/4"-10, G5

15шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

14

D50491

PIN

- pivot, blade

2шт.

15

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex head, 3/8" - 16 NC x 4-1/2"

2шт.

16

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

17

D38481

PIN

- clam cylinder, rod end

2шт.

18

95-28

WASHER,1 7/8" x 4" x .179"

- flat, 1-7/8" (48 mm) ID

4шт.

19

D25280

SNAP RING,#175, Ext

Ring, Snap, , cylinder pin #175, Ext

4шт.

20

D50490

PIN

- clam cylinder, closed end

2шт.

21

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

22

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

23

R29976

GUARD

- cylinder, right-hand

1шт.

24

R29975

GUARD

- cylinder, left-hand

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

26

92-8

LOCK WASHER,1/2"

8шт.

27

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

28

REF

INSTRUCTION

DECAL - indicator, clam bucket position, see Figure 458

1шт.

R32697

PIVOT

Located to the left of Ref. 1

1шт.

R32698

goes into pivot

1шт.
