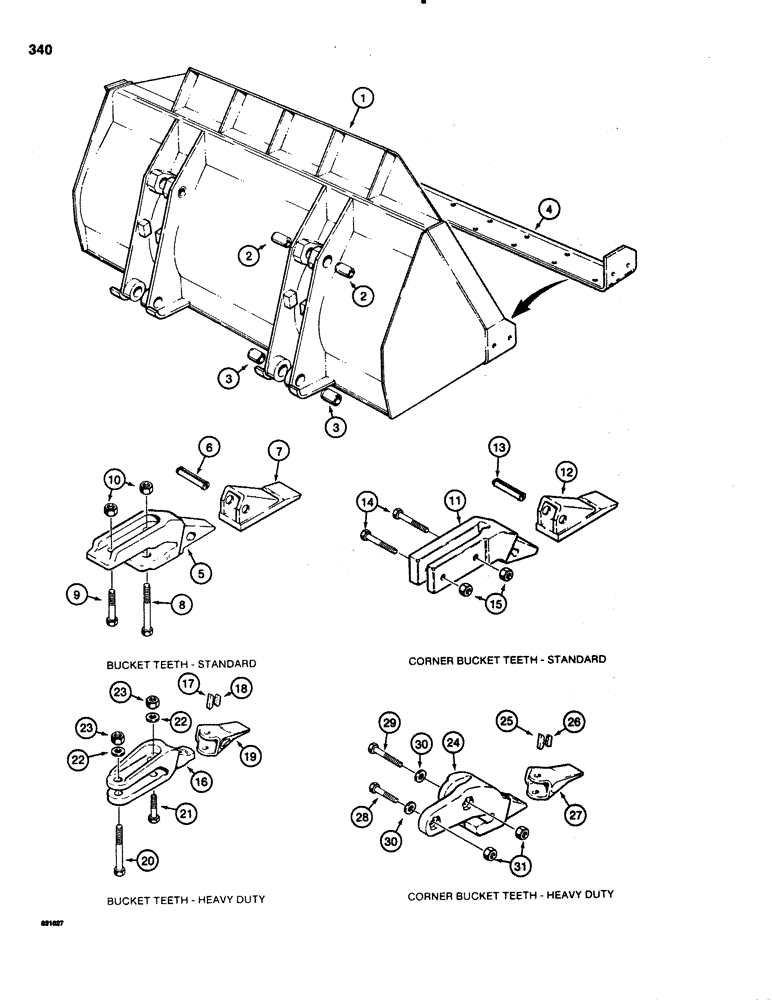

Запчасти Case 1150C (340) - LOADER BUCKET, 1-3/4 CUBIC YARD BUCKET (1.306 CUBIC METER), HEAVY DUTY BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BUCKET ASSEMBLY - does not use corner teeth, no longer available, not shown, order R48419 bucket assembly, Includes: Ref. 2 - 4

1шт.

1

R48419

BUCKET ASSEMBLY - uses corner teeth, machinery item, see Figure 002 for ordering, Includes: Ref. 2 - 4

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- bucket, upper

4шт.

3

R26958

BUSHING

- bucket, lower

4шт.

4

R29987

BLADE

CUTTING EDGE - for bucket without corner teeth, if used, not shown

1шт.

4

R45464

EDGE

CUTTING EDGE - for bucket with corner teeth, if used

1шт.

D49545

TOOTH

- bucket, center, Includes: Ref. 5 - 7

6-8шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly

1шт.

6

L32090

PIN

FLEX PIN - tooth assembly

1шт.

7

L32089

POINT

- tooth assembly

1шт.

8

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex head, 5/8" - 11 NC x 3-1/2", grade 8

6-8шт.

9

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", grade 8

6-8шт.

10

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC

16шт.

R46452

SHANK

TOOTH ASSEMBLY - corner, right-hand, not shown, Includes: Ref. 11 - 13

1шт.

R46453

SHANK

TOOTH ASSEMBLY - corner, left-hand, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

SHANK - R46452 and R46453 tooth assemblies, left-hand shown

1шт.

12

L32089

POINT

- tooth assembly

1шт.

13

L32090

PIN

PIN - flex

1шт.

14

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex head, 5/8" - 11 NC x 3"

4шт.

15

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC

4шт.

R35708

TOOTH

ASSEMBLY - bucket, center, Includes: Ref. 16 - 19

6-8шт.

16

NSS

NOT SOLD SEPARAT

SHANK - tooth assembly

1шт.

17

R31916

PIN

- tooth assembly

1шт.

18

R31917

KEY

LOCK - pin

1шт.

19

R35707

TOOTH

POINT - tooth assembly

1шт.

20

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex head, 5/8" - 11 NC x 3", grade 8

6-8шт.

21

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8

6-8шт.

22

NLS

NO LONGER SERVICED

- hardened

16шт.

23

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC

16шт.

R45058

TOOTH

ASSEMBLY - corner, right-hand, not shown, Includes: Ref. 24 - 27

1шт.

R45059

TOOTH

ASSEMBLY - corner, left-hand, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

SHANK - R45058 and R45059 tooth assemblies, left-hand shown

1шт.

25

R31916

PIN

- tooth assembly

1шт.

26

R31917

KEY

LOCK - pin

1шт.

27

R35707

TOOTH

POINT - tooth assembly

1шт.

28

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-3/4", grade 8

2шт.

29

26-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex head, 5/8" - 11 NC x 3", grade 8

2шт.

30

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

4шт.

31

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC

4шт.
