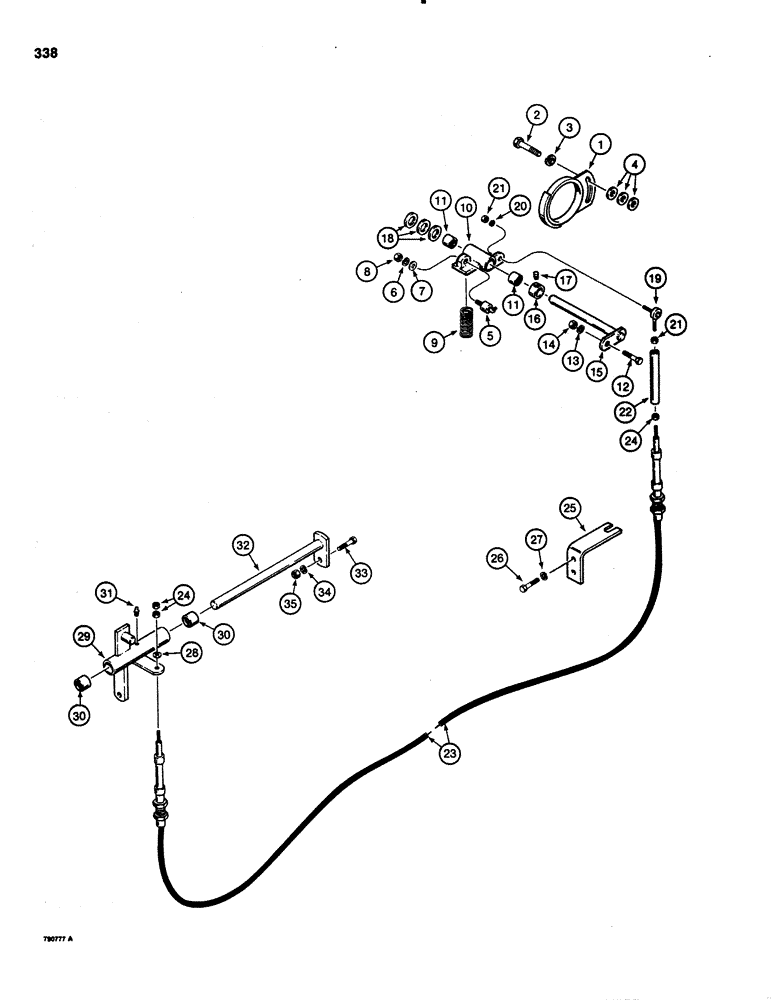

Запчасти Case 1150C (338) - LOADER HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R27857
TUBE - height adjustment
1шт.
2
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
3
92-8
LOCK WASHER,1/2"
1шт.
4
195-33
WASHER,1/2"
- flat, 1/2"
7шт.
5
9706704
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
FOLLOWER - cam
1шт.
6
92-6
LOCK WASHER,3/8"
1шт.
7
195-25
WASHER,3/8"
- flat, 3/8"
1шт.
8
25-116
NUT,Hex, 3/8"-24, G5
- hex, 3/8" - 24 NF
1шт.
9
R27874
SPRING
- height, actuator
1шт.
10
R27856
LEVER
- actuating, Includes: Ref. 11
1шт.
11
R27370
NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"
BUSHING - lever
2шт.
12
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
1шт.
13
92-6
LOCK WASHER,3/8"
1шт.
14
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
15
R27861
SHAFT
- lever mounting
1шт.
16
D43620
COLLAR
- locking, uses 83-55 set screw, if used
1шт.
17
83-55
SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt
If used Hex Soc, 5/16"-18 x 5/16", Cup Pt
1шт.
16
D81756
COLLAR
ASSEMBLY - locking, includes 178-888 set screw, if used, Includes: Ref. 17
1шт.
17
178-888
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
- 1/4" - 20 NC, if used
1шт.
18
195-41
WASHER,5/8"
1шт.
19
R43267
ANGLE
BALL JOINT - male
1шт.
20
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
21
25-114
NUT,1/4"-28, G5
- hex, 1/4" - 28 NF
2шт.
22
R27869
CONNECTOR, ELEC
SLEEVE - cable
1шт.
23
R27872
CABLE
- height control
1шт.
25
R27812
BRACKET
- cable retaining
1шт.
26
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
27
92-6
LOCK WASHER,3/8"
2шт.
28
195-12
WASHER,#10
- flat, 3/16"
1шт.
29
R27537
ROCKER
ARM - height control, Includes: Ref. 30 and 31
1шт.
30
R27649
NEEDLE BEARING,0.75" ID x 1" OD x 0.687"
BUSHING - rocker arm
2шт.
31
219-410
LUBE NIPPLE,3/16" NPTF
1шт.
32
R27844
SHAFT
- rocker arm
1шт.
33
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
34
92-6
LOCK WASHER,3/8"
1шт.
35
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
1шт.
Выбрано товаров: 37
