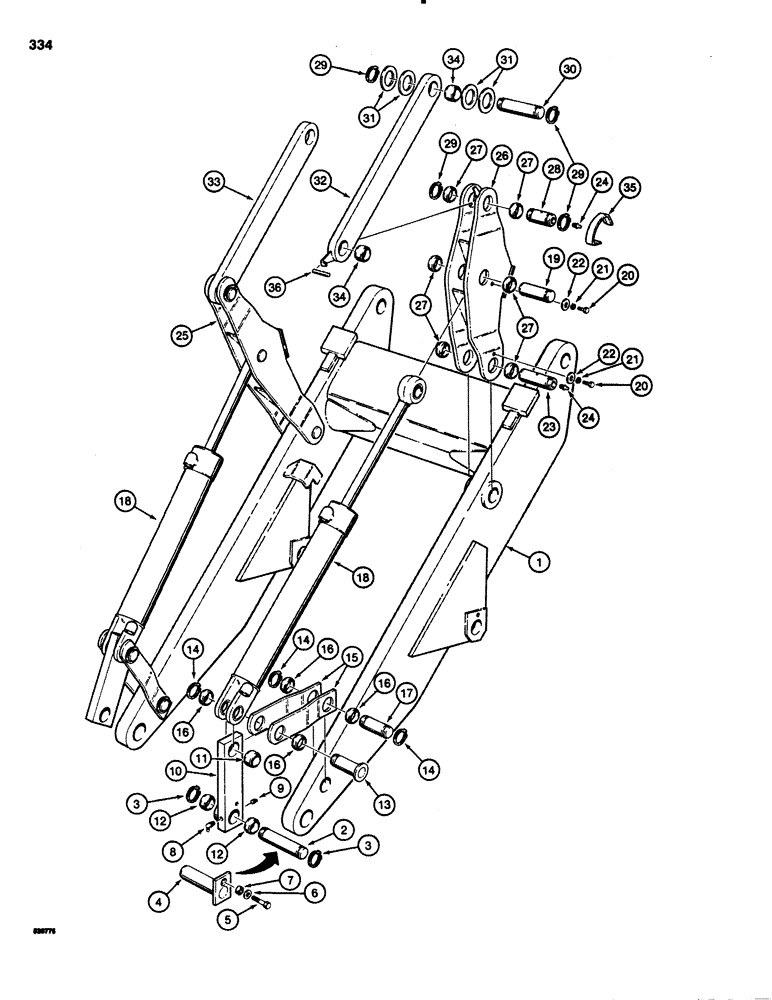

Запчасти Case 1150C (334) - LOADER LIFT FRAME, BUCKET CYLINDERS AND LINKS (09) - CHASSIS/ATTACHMENTS

1

R41181

FRAME - loader lift, for bushings see Figure 332

1шт.

2

R29924

PIN

- bucket link to main frame, if used

2шт.

3

D26919

SNAP RING,#200, Ext

Ring, Snap, , R29924 pin (ref. 2) only, if used #200, Ext

4шт.

4

R32858

PIN

- bucket link to main frame, if used

2шт.

5

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite, if used Hex, 3/4"-10 x 2", G8

2шт.

6

D31328

WASHER

- R32858 pin (ref. 4) retaining, if used

2шт.

7

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin, if used

2шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

9

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, if used

2шт.

10

R31809

LINK

- bucket cylinder to main frame, Includes: Ref. 11 and 12

2шт.

11

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- pivot, bucket cylinder

1шт.

12

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- pivot, main frame

2шт.

13

R27024

PIN

- bucket cylinder, closed end

2шт.

14

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

6шт.

15

R27145

LEVER

LINK - bucket cylinder to lift frame, Includes: Ref. 16

4шт.

16

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- link

2шт.

17

D40218

PIN

- links to lift frame

2шт.

18

G34765

CYLINDER

- bucket tilt, parts list Figure 278

2шт.

19

R41198

PIN

- bucket cylinder, rod end

2шт.

20

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Use with Loctite Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

21

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

22

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

4шт.

23

R48926

PIN

- bucket lever to lift frame

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

25

R41187

LEVER

- bucket tilt, left-hand

1шт.

26

R41188

LEVER

- bucket tilt, right-hand, Includes: Ref. 27

1шт.

27

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

- R41187 and R41188 levers

6шт.

28

R41197

PIN

- bucket lever to bucket link

2шт.

29

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

8шт.

30

R27061

PIN

- bucket, Serial Range: link-bucket

2шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- flat

8шт.

32

R27164

LINK

- bucket, right-hand

1шт.

33

R27020

LINK

- bucket, left-hand, Includes: Ref. 34

1шт.

34

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- R27164 and R27020 links

2шт.

35

R27638

INDICATOR

- clam bucket

1шт.

36

D51707

PIN

POINTER - clam bucket

1шт.
