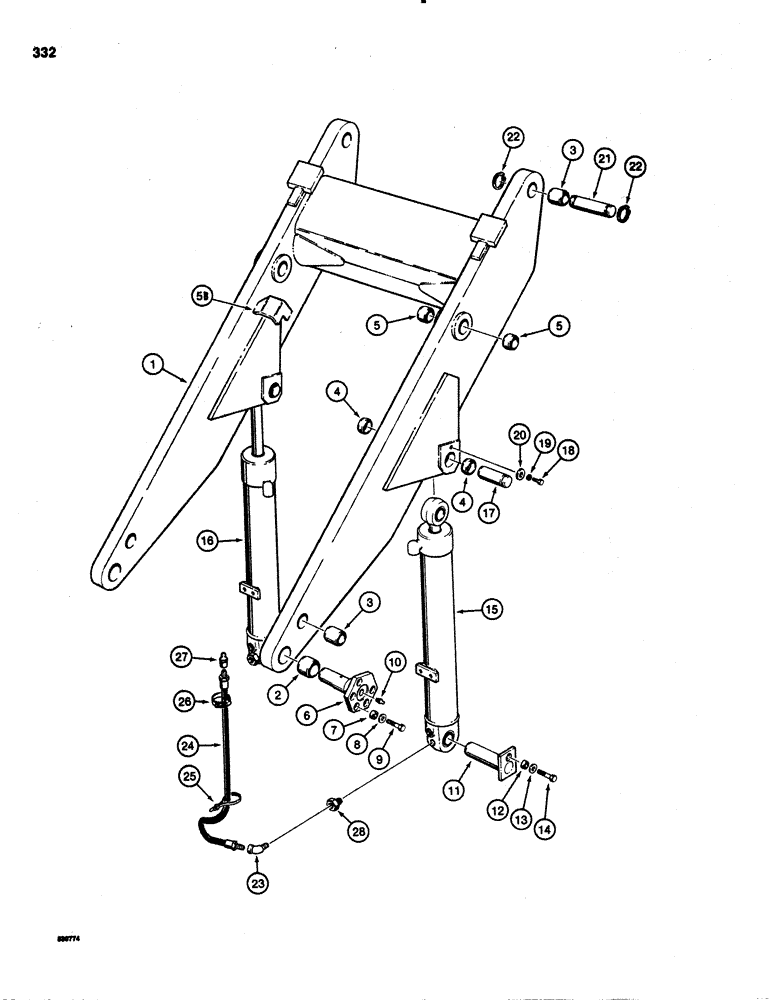

Запчасти Case 1150C (332) - LOADER LIFT FRAME, MOUNTING PARTS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

R41181

FRAME - loader lift, Includes: Ref. 2 - 5B

1шт.

2

R27011

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

- pivot, lift frame at main frame

2шт.

3

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- pivot, bucket tilt links

4шт.

4

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- lift cylinder pivot

4шт.

5

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- pivot, bucket tilt lever

4шт.

5a

R41185

SUPPORT

BRACKET - rub, right-hand, not shown, opposite of ref. 5B

1шт.

5b

R41186

SUPPORT

BRACKET - rub, left-hand

1шт.

6

R45895

PIN

- lift frame to main frame, with five holes, replaces pin with four holes, uses two mounting bolts per pin

2шт.

7

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin

2-4шт.

8

D31328

WASHER

- special

2-4шт.

9

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite Hex, 3/4"-10 x 2", G8

2-4шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

11

R30127

PIN

- lift cylinder to main frame

2шт.

12

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

SPACER - pin

2шт.

13

D31328

WASHER

- special

2шт.

14

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite Hex, 3/4"-10 x 2", G8

2шт.

15

G34836

CYLINDER

- loader lift, right-hand, parts list Figure 276

1шт.

16

G34837

CYLINDER

- loader lift, left-hand, parts list Figure 276

1шт.

17

R27086

PIN

- lift cylinder to loader lift frame

2шт.

18

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

19

192-165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, pin retaining

2шт.

21

R27061

PIN

- loader lift, Serial Range: frame-bucket

2шт.

22

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

4шт.

23

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- 45 degree, 1/8" NPT

2шт.

24

R40124

HOSE

- lube, 25" (635 mm) long

2шт.

25

R38237

STRAP

TIE STRAP - lube hose

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, adjustable

2шт.

27

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

GREASE FITTING - straight, 1/8" NPT, female

2шт.

28

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

REDUCER - 1/4" - 1/8"

2шт.
