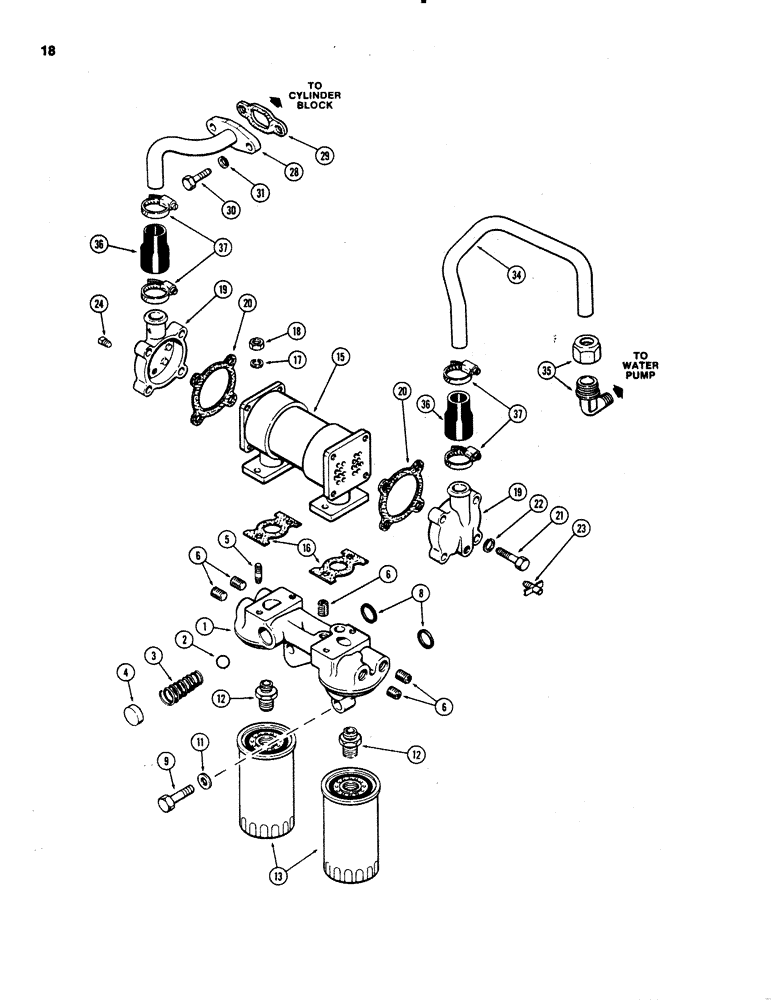

Запчасти Case 1150C (018) - OIL FILTER AND COOLER, 451BD DIESEL ENGINE, FOR ALTITUDE COMPENSATING ENG. (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter and cooler (Replaces A64107), Includes: Ref. 2 - 6

1шт.

2

211-17

BALL,3/4" Dia

- relief (Replaces A21090 valve)

1шт.

3

A146897

SPRING

- relief valve (Replaces A58669)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-1/4 inch cup type (31.75 mm)

1шт.

5

G102128

BOLT

- cooler mounting, 3/8 x 1-1/2 inch NC

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2 inch PT, socket head

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

SEAL - ring, base to block, 15/16 x 1-1/8 x 1/8 inch (23.81 x 28.58 x 3.18 mm)

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Base to block Hex, 1/2"-13 x 2", G5

1шт.

9

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base to block, 1/2 x 3 inch NC hex

1шт.

11

195-33

WASHER,1/2"

- 1/2 x 1-1/16 x 1/8 inch (12.7 x 26.99 x 3.17 mm)

2шт.

12

A63916

ADAPTER

- filter to base, 1 inch - 8 NC and 1 inch - 12 NF external threads

2шт.

13

A44081

ENGINE OIL FILTER

FILTER - oil

2шт.

15

A63917

COOLER

- oil

1шт.

16

A65359

GASKET

-, Serial Range: cooler-base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- 3/8 inch NC hex

4шт.

19

A64349

HOOD

COVER - oil cooler ends

2шт.

20

A63920

GASKET

- end covers

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8 x 1-1/2 inch NC hex

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

DRAIN - oil cooler

1шт.

24

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8 inch PT, square head

1шт.

28

A64350

TUBE

- oil, Serial Range: cooler-block

1шт.

29

A58670

GASKET

- tube

1шт.

30

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Tube to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

34

A65844

TUBE

- oil cooler to water pump

1шт.

35

222-5038

ELBOW,90 Degree, 1 5/16"-12 x 3/4" NPT, Hi-seal

ASSEMBLY - tube to water pump

1шт.

36

A64353

HOSE

- cooler end, Serial Range: covers-tubes

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30.16 to 44.45 mm)

4шт.
