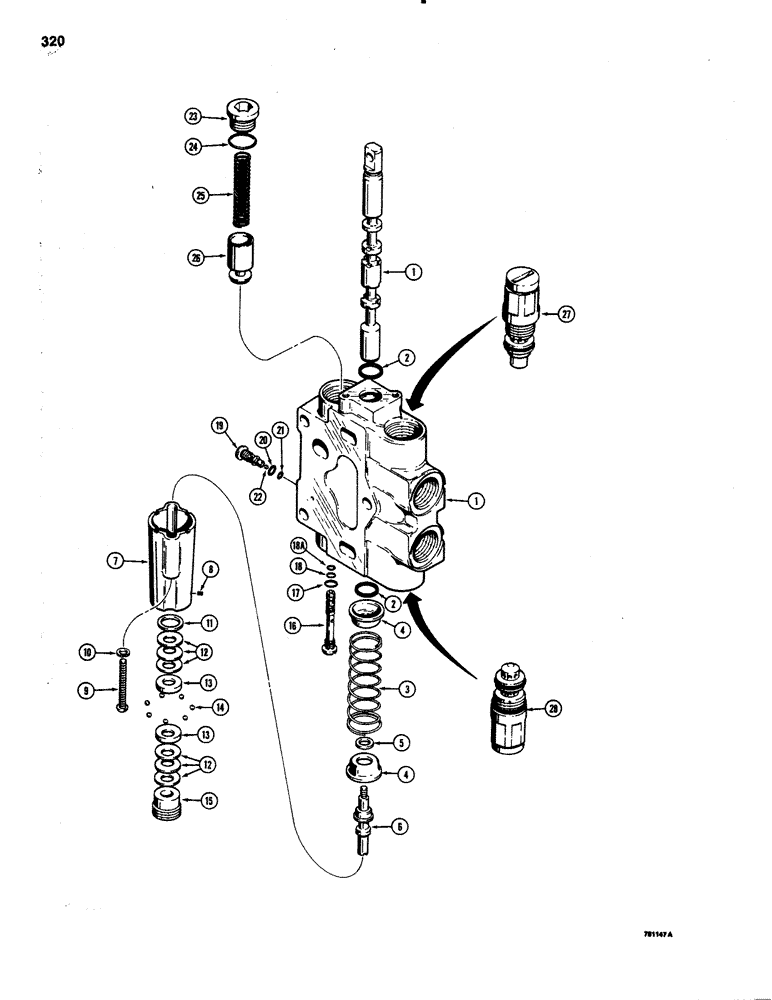

Запчасти Case 1150C (320) - D87084 LOADER LIFT SECTION (08) - HYDRAULICS

D87084

VALVE

SECTION - loader lift, identification No. 308, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

G46908

O-RING

- spool

2шт.

3

R30192

SPRING

CENTERING SPRING - spool

1шт.

4

R30191

WASHER

- centering spring

2шт.

5

R30198

WASHER

SPACER - spool

1шт.

6

D78447

SHAFT

- detent

1шт.

7

R30190

HOUSING

- detent

1шт.

8

R30195

SCREW

SET SCREW - detent housing

1шт.

9

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head slotted, 1/4" - 20 NC x 2-1/4"

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

D78438

WASHER

- special

1шт.

12

D78437

WASHER

BELLEVILLE SPRING - detent

6шт.

13

D78439

RETAINER

- balls, detent

2шт.

14

211-257

BALL,1/4" Dia

(6 mm), Steel 1/4" Dia

7шт.

15

R30194

PLUG

- detent adjusting

1шт.

D87080

VALVE

SHUTTLE - primary, Includes: Ref. 16 - 18A and kit

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

N6632

SEAL KIT

- seal, Includes: Ref. 17, 18 and 18A

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - outer, 3/8" (9 mm) ID

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - center, 1/4" (6 mm) ID

1шт.

18a

NSS

NOT SOLD SEPARAT

O-RING - inner, 7/32" (5 mm) ID

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 19 - 21 and kit

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

22

211-255

BALL,3/16 Dia

steel (5 mm) 3/16 Dia

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 24 Hex Soc, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

25

R30189

SPRING

- load check

1шт.

26

D87082

VALVE POPPET

POPPET - load check

1шт.

27

D78449

VALVE

- anticavitation, parts list Figure 330

1шт.

28

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 328

1шт.

The pressure setting of this circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the circuit relief valve or according to the service manual.

1шт.
