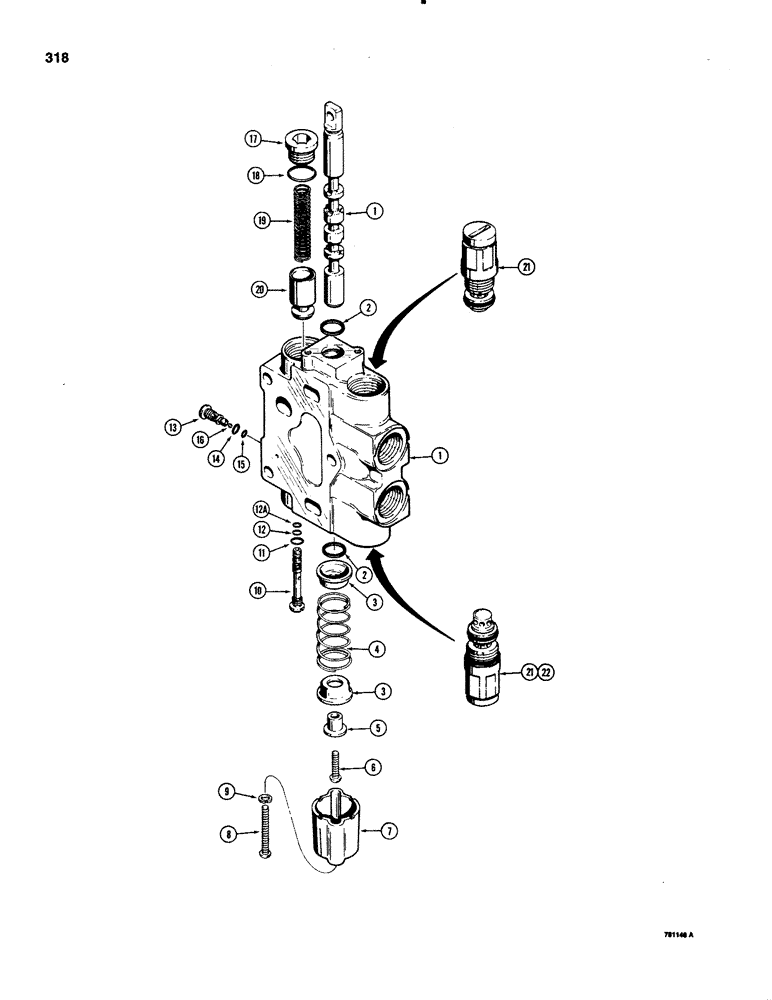

Запчасти Case 1150C (318) - D87085 AND D87076 SECTIONS, RIPPER AND CLAM BUCKET (08) - HYDRAULICS

D87085

VALVE

SECTION - clam bucket or ripper, loader models, identification No. 218

1шт.

D87076

VALVE

SECTION - ripper, loader or dozer models, identification No. 216, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SPOOL - section

1шт.

2

A59956

O-RING,0.739" ID x 0.879" OD

- spool

2шт.

3

CASR30191

RETAINER

- centering spring

2шт.

4

R30192

SPRING

CENTERING SPRING - spool

1шт.

5

D78452

BUSHING

SPACER - spool

1шт.

6

113-64

PREV TORQUE BOLT,Locking, 1/4"-20 x 1", G5

BOLT, Locking, 1/4"-20 x 1", G5

1шт.

7

D78454

HOUSING

- centering spring

1шт.

8

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

MACHINE SCREW - round head slotted, 1/4" - 20 NC x 2-1/4"

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

D87080

VALVE

SHUTTLE - primary, Includes: Ref. 10 - 12A

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

N6632

SEAL KIT

- seal, Includes: Ref. 11, 12 and 12A

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - outer, 3/8" (9 mm) ID

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - center, 1/4" (6 mm) ID

1шт.

12a

NSS

NOT SOLD SEPARAT

O-RING - inner, 7/32" (5 mm) ID

1шт.

A47210

PLUG

SHUTTLE - secondary, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

16

211-255

BALL,3/16 Dia

steel (5 mm) 3/16 Dia

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

19

R30189

SPRING

- load check

1шт.

20

D87082

VALVE POPPET

POPPET - load check

1шт.

21

D78442

VALVE

CIRCUIT RELIEF VALVE - parts list Figure 328, D87076 section uses 2, D87085 section uses 1

1-2шт.

The pressure setting of this circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the circuit relief valve or according to the service manual.

1шт.

22

D75858

VALVE, PRESSURE RELI

VALVE - anticavitation and circuit relief, parts list Figure 328, D87085 section only

1шт.
