(308[1]) - R40905 TWO SPOOL VALVE DOZER MODEL

Запчасти Case 1150C (308[1]) - R40905 TWO SPOOL VALVE DOZER MODEL (08) - HYDRAULICS

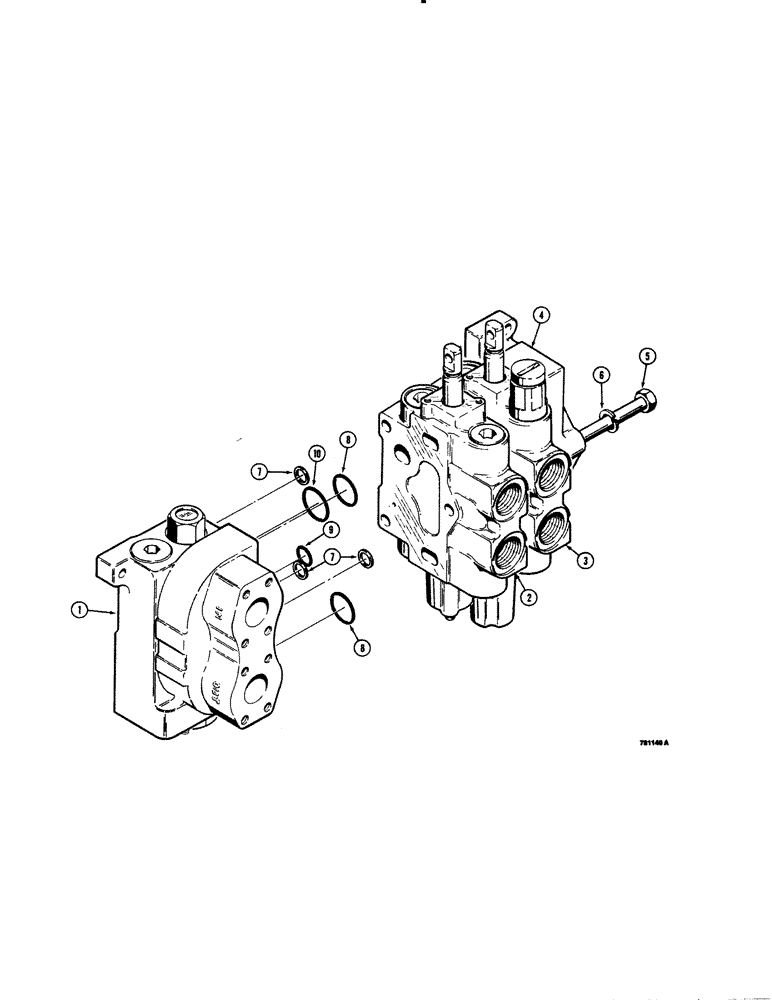

Схема запчастей Case 1150C - (308[1]) - R40905 TWO SPOOL VALVE DOZER MODEL (08) - HYDRAULICS
9
3
2
10
7
8
4
8
7
6
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R40905

VALVE

CONTROL VALVE ASSEMBLY - two spool, dozer, Includes: Ref. 1 - 10

1шт.

1

D87071

VALVE

SECTION - inlet and outlet, identification No. 106, parts list Figure 316

1шт.

2

D87073

SEGMENT

SECTION - dozer tilt, identification No. 217, parts list Figure 326

1шт.

3

D87074

VALVE

SECTION - dozer lift, identification No. 307, parts list Figure 324

1шт.

4

D87072

COVER ASSY

COVER - end

1шт.

5

D74373

BOLT

- tie

3шт.

6

92-7

LOCK WASHER,7/16"

3шт.

7

D77566

SHIM,.0030" Thk

Sections .0030" Thk

9шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16" (32 mm) OD

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1" (25 mm) OD

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2" (37 mm) OD

1шт.
