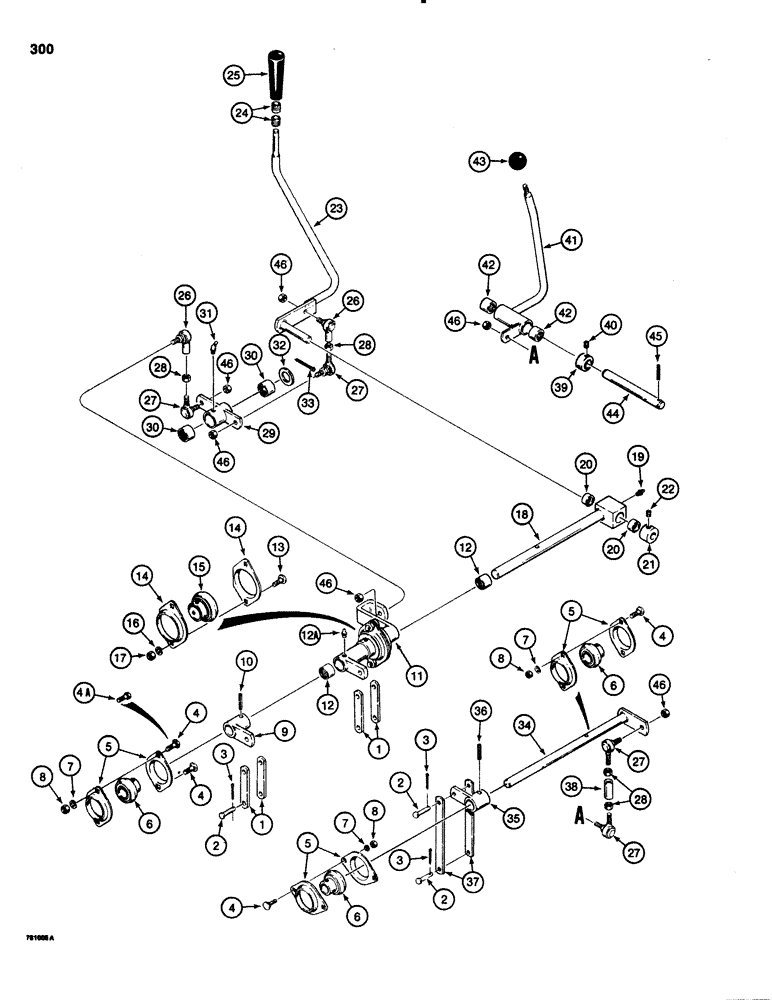

Запчасти Case 1150C (300) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO CONTROL LEVERS - THREE SPOOL VALVE (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figures 310 and 312, for mounting see Figure 294

1шт.

1

R27328

LINK

- short, at control valve spool

4шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Links 3/8" x 1.060"

6шт.

3

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

6шт.

4

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5-6шт.

4a

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4", used on models with raised transmission breather, if used

1шт.

5

F13360

FLANGE

- ball bearing

6шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

3шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

9

R27331

ELECTRICAL WIRE

BELLCRANK - links, dozer models and loader models without height control

1шт.

For special parts used on loader models with height control, see Figure 296.

1шт.

10

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R27340

TUBE

BELLCRANK ASSEMBLY - with ball bearing, dozer models and loader models without height control, Includes: Ref. 11 - 17

1шт.

For special parts used on loader models with height control, see Figure 296.

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - bellcrank shaft

1шт.

12

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- bellcrank assembly

2шт.

12a

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

13

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

14

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

15

NSS

NOT SOLD SEPARAT

BALL BEARING - tube

1шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

18

R27371

SHAFT

- bellcrank, lower, Includes: Ref. 19 and 20

1шт.

19

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

20

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

- shaft

2шт.

21

D43620

COLLAR

- locking, control lever, uses 83-55 set screw, if used

1шт.

22

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

If used Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

21

D81756

COLLAR

ASSEMBLY - locking, includes 178-888 set screw, if used, Includes: Ref. 22

1шт.

22

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC, if used

1шт.

23

R38652

LEVER

CONTROL LEVER - lift

1шт.

24

R38655

RING

BUSHING - knob, control lever

2шт.

25

R38654

KNOB

- control lever

1шт.

26

R36626

BALL

JOINT - female

2шт.

27

R36625

BALL

JOINT - male

4шт.

28

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

29

R27646

ROCKER

LEVER - ball joints, Includes: Ref. 30 and 31

1шт.

30

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- lever

2шт.

31

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

32

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

33

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

34

R27678

SHAFT

- bellcrank, upper

1шт.

35

R27689

LEVER

BELLCRANK - long links

1шт.

36

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

37

R41322

LINK

- long, at control valve spool

2шт.

38

R27647

LINK

- threaded, ball joints

1шт.

39

T10676

COLLAR

- locking, shaft retaining

1шт.

40

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

41

R25598

LEVER

CONTROL LEVER - equipment, Includes: Ref. 42

1шт.

42

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- control lever

2шт.

43

70213

KNOB

- control lever

1шт.

44

R27648

SHAFT

- control lever

1шт.

45

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

46

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

6шт.
