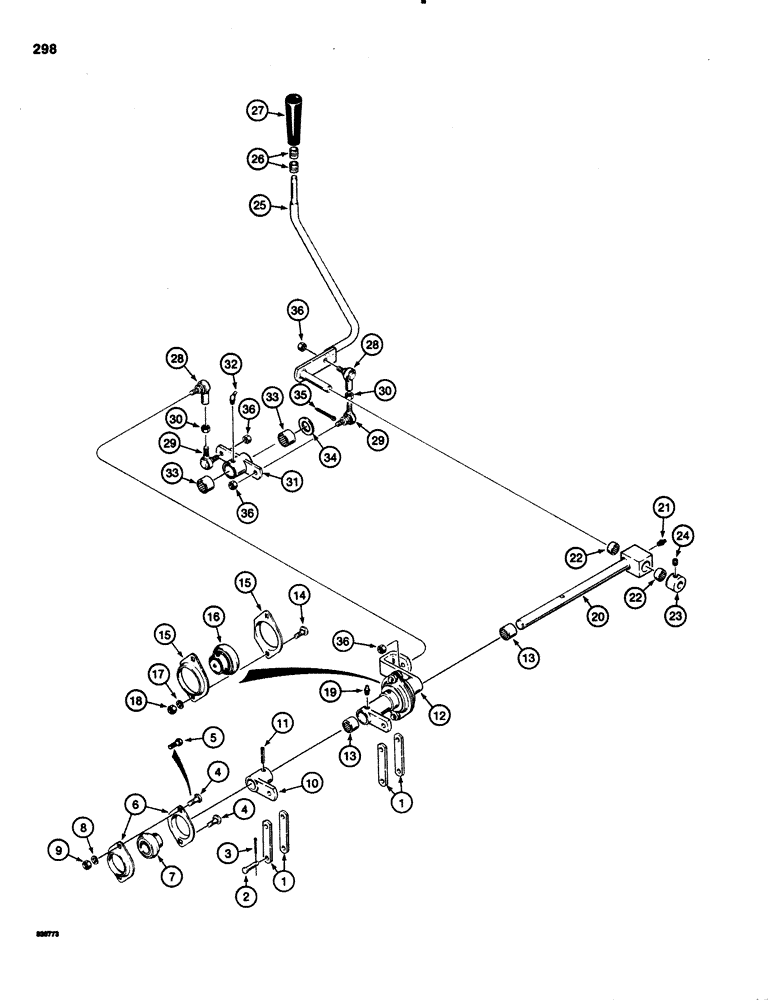

Запчасти Case 1150C (298) - EQUIPMENT CONTROL VALVE AND LEVERS, ONE LEVER - TWO SPOOL VALVE (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figure 308, for mounting see Figure 294

1шт.

1

R27328

LINK

- at control valve spool

4шт.

2

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

3

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

4шт.

4

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1-2шт.

5

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4", used on models with raised transmission breather, if used

1шт.

6

F13360

FLANGE

- ball bearing

2шт.

7

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

1шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

10

R27331

ELECTRICAL WIRE

BELLCRANK - links, dozer models and loader models without height control

1шт.

For special parts used on loader models with height control, see Figure 296.

1шт.

11

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

R27340

TUBE

BELLCRANK ASSEMBLY - with ball bearing, dozer models and loader models without height control, Includes: Ref. 12 - 19

1шт.

For special parts used on loader models with height control, see Figure 296.

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - bellcrank shaft

1шт.

13

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- bellcrank assembly

2шт.

14

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

15

NSS

NOT SOLD SEPARAT

FLANGE - ball bearing

2шт.

16

NSS

NOT SOLD SEPARAT

BALL BEARING - tube

1шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

20

R27371

SHAFT

- bellcrank, Includes: Ref. 21 and 22

1шт.

21

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

22

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

- shaft

2шт.

23

D43620

COLLAR

- locking, control lever, uses 83-55 set screw, if used

1шт.

24

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

If used Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

23

D81756

COLLAR

ASSEMBLY - locking, includes 178-888 set screw, if used , Includes: Ref. 24

1шт.

24

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC, if used

1шт.

25

R38652

LEVER

CONTROL LEVER - lift

1шт.

26

R38655

RING

BUSHING - knob, control lever

2шт.

27

R38654

KNOB

- control lever

1шт.

28

R36626

BALL

JOINT - female

2шт.

29

R36625

BALL

JOINT - male

2шт.

30

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

2шт.

31

R27646

ROCKER

LEVER - ball joints, Includes: Ref. 32 and 33

1шт.

32

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

33

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- lever

2шт.

34

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

35

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.

36

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

4шт.
