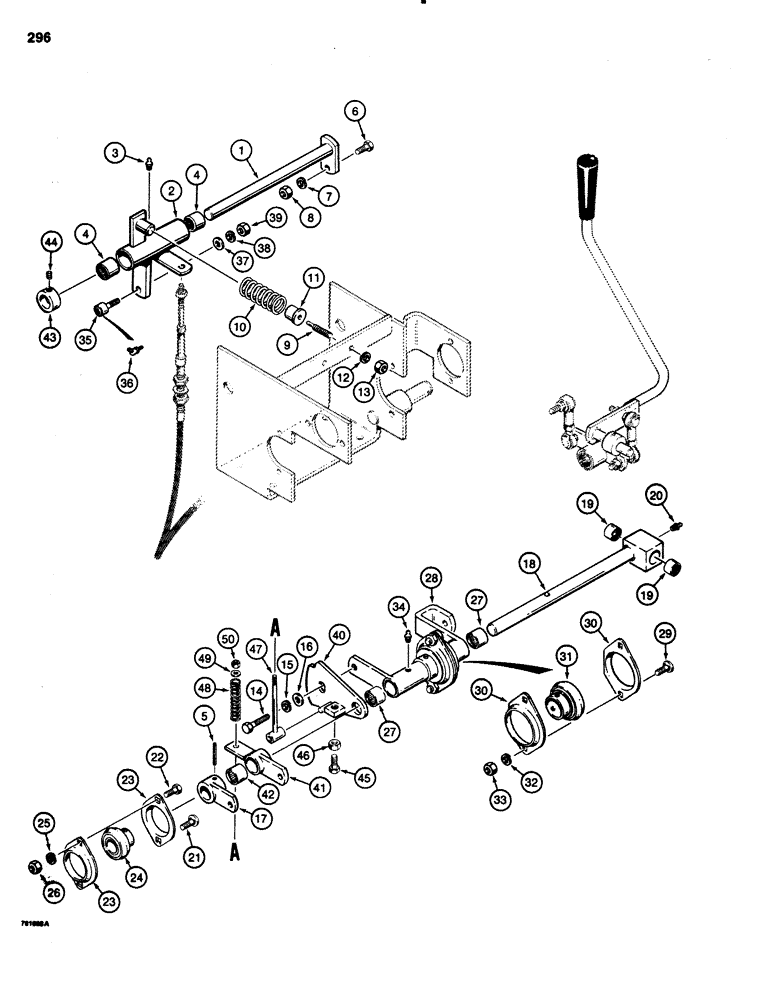

Запчасти Case 1150C (296) - EQUIPMENT CONTROL VALVE AND LEVERS, LOADER HEIGHT CONTROL LINKAGE (08) - HYDRAULICS

1

R27844

SHAFT

- rocker arm

1шт.

2

R27537

ROCKER

ARM - rocker, height control, Includes: Ref. 3 and 4

1шт.

3

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

4

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- rocker arm

2шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

R27875

SCREW

- special, adjusting

1шт.

10

R27876

SPRING

- detent

1шт.

11

R27817

GUIDE

- spring

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

17

R41263

LEVER

BELLCRANK - return-to-dig

1шт.

18

R27371

SHAFT

ASSEMBLY - cam, Includes: Ref. 19 and 20

1шт.

19

R27370

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.562"

- shaft assembly

2шт.

20

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

21

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

22

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4"

1шт.

23

F13360

FLANGE

- bearing

2шт.

24

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

- shaft

1шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

R27341

TUBE

ASSEMBLY - cross, Includes: Ref. 27 - 34

1шт.

27

R27649

NEEDLE BEARING,0.75" ID x 1" OD x 0.687"

- tube assembly

2шт.

28

NSS

NOT SOLD SEPARAT

TUBE AND ARM - cross

1шт.

29

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

30

NSS

NOT SOLD SEPARAT

FLANGE - bearing

2шт.

31

NSS

NOT SOLD SEPARAT

BALL BEARING - shaft

1шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

34

219-410

LUBE NIPPLE,3/16" NPTF

1шт.

35

R33825

CAM FOLLOWER

FOLLOWER - cam, Includes: Ref. 36

1шт.

36

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive type

1шт.

37

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

1шт.

40

R27846

CAM

- link

1шт.

41

R27529

LINK

BELLCRANK ASSEMBLY - valve actuating, Includes: Ref. 42

1шт.

42

R24879

BEARING

NEEDLE BEARING - bellcrank assembly

1шт.

43

T10676

COLLAR

- locking

1шт.

44

83-55

SET SCREW,Hex Soc, 5/16"-18 x 5/16", Cup Pt

1шт.

45

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

47

R27864

EYE

GUIDE - spring

1шт.

48

R29624

SPRING

- detent

1шт.

49

195-20

WASHER

- flat, 1/4"

1шт.

50

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.
