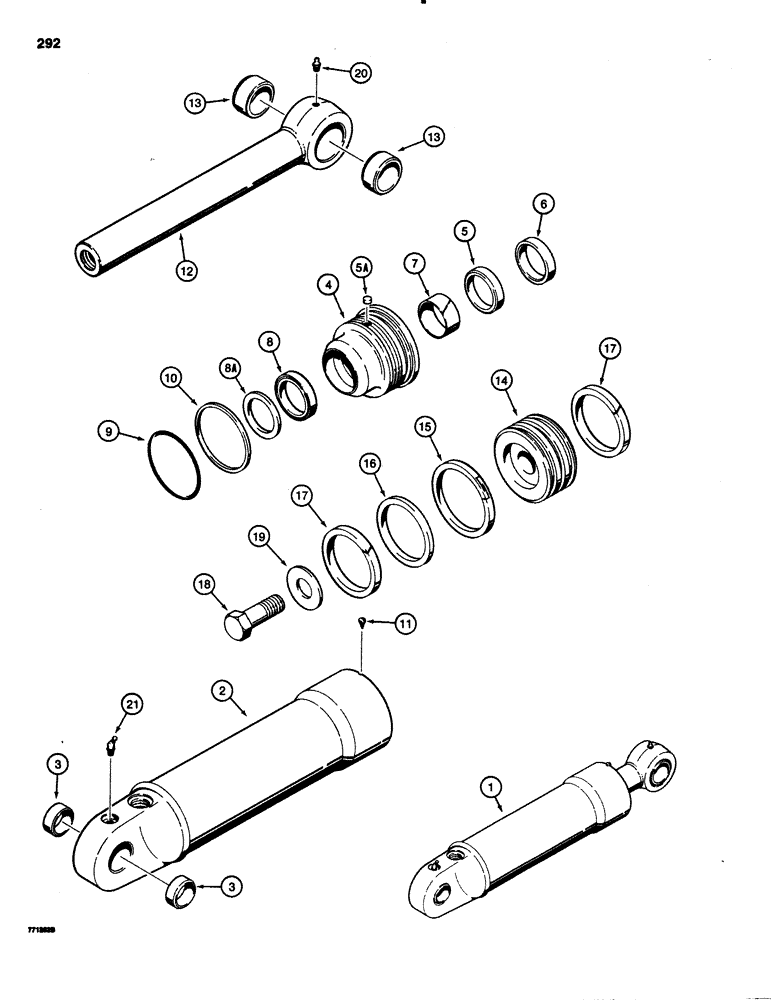

Запчасти Case 1150C (292) - G101272 AND G101273 RIPPER CYLINDERS (08) - HYDRAULICS

1

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - ripper, right-hand, 4" (102 mm) diameter x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

1

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER ASSEMBLY - ripper, left-hand, 4" (102 mm) diameter x 10" (254 mm) stroke, Includes: Ref. 2 - 20

1шт.

2

G100284

TUBE,18.75" L

- G101272 cylinder, right-hand, Includes: Ref. 3

1шт.

2

G100285

TUBE,18.75" L

- G101273 cylinder, left-hand, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G104407

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5a

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

8

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

Part of seal kit P/N G100778

1шт.

8a

G102647

SEAL

- piston rod, narrow, used in addition to ref. 8 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

12

G100290

ROD

- piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- rubber, piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105545

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105545

SEAL

KIT - seal, Includes Includes Refs. 6, 7, 8, 9, 10, 15, 16 and 17 and G102401 kit plus ref. 8A above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

G100778

SEAL

- rod, service option - severe heat or cold, Includes Ref 8

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
