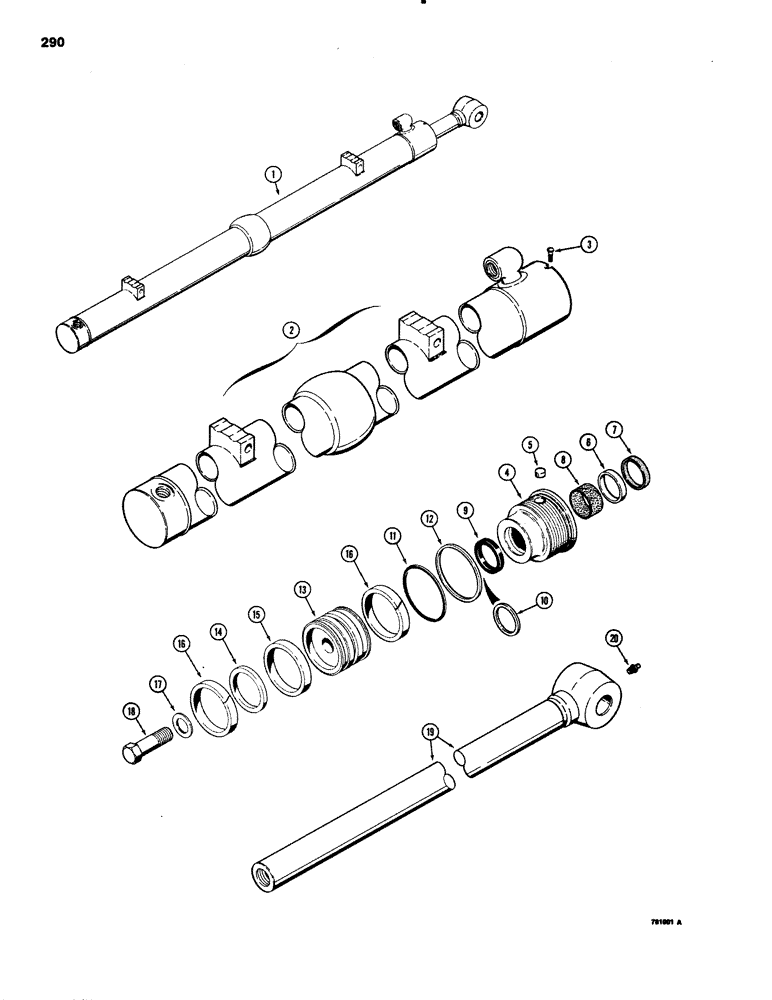

Запчасти Case 1150C (290) - G101266 AND G101267 DOZER ANGLE CYLINDERS (08) - HYDRAULICS

1

G101267

CYLINDER

ASSEMBLY - angle, standard dozer models, 3" (76 mm) diameter x 45-7/8" (1165 mm) stroke, Includes: Ref. 2 - 20

2шт.

1

G101266

CYLINDER ASSY.

CYLINDER ASSEMBLY - angle, wide track dozer models, 3" (76 mm) diameter x 45-7/8" (1165 mm) stroke, Includes: Ref. 2 - 20

2шт.

2

G35385

TUBE,52.84" L

- G101266 cylinder

1шт.

2

G35392

TUBE,52.84" L

- G101267 cylinder

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

G104037

GLAND

ASSEMBLY - cylinder, interchangeable with G34633 gland assembly, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

9

D36970

CUP

U-CUP SEAL - piston rod, wide

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G100777

1шт.

Part of seal kit P/N G105549

1шт.

10

G103705

SEAL

- piston rod, narrow, used in addition to ref. 9 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

13

G100704

PISTON

- cylinder

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

15

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105549

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(superfine thread) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

19

G35389

ROD

- piston, 1-3/4" (44 mm) diameter

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, if used

1шт.

G105549

SEAL

KIT - seal, Includes Refs. 7, 8, 9, 10, 11, 12, 14, 15 and 16 same as G102405 kit plus ref. 10 above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- rod, service option - severe heat or cold, Includes Ref 9

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
