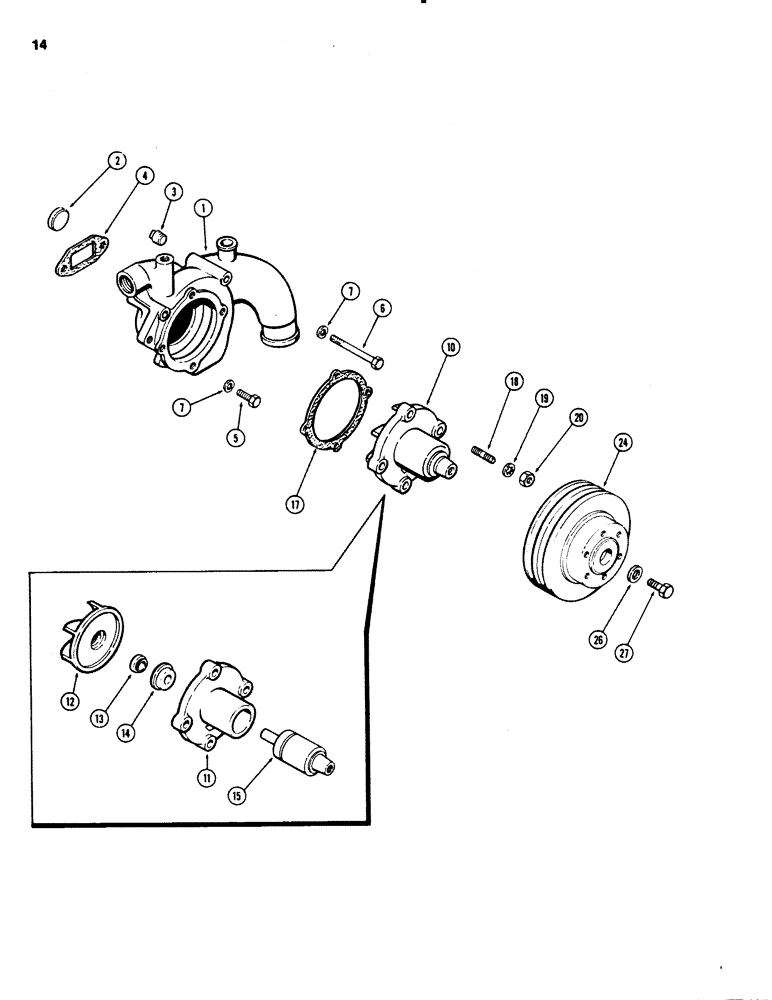

Запчасти Case 1150C (014) - WATER PUMP, 451BD DIESEL ENGINE, WITH TAPPED SHAFT (02) - ENGINE

1

A60630

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8 inch cup type (34.93 mm)

1шт.

3

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4 inch PT, square head

1шт.

4

A58649

GASKET

-, Serial Range: body-block

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Body to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Body to block Hex, 3/8"-16 x 4", G5

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

A48369

PUMP

ASSEMBLY - water, remanufactured, Includes: Ref. 11 -15

1шт.

A48335

CORE-WATER PUMP

RETURN NUMBER - use this part no. to return water pump core for credit, Includes: Ref. 11 - 15

1шт.

10

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - water pump (Order A157145)

1шт.

12

A152126

IMPELLER

- water pump

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

- pump shaft

1шт.

15

A156995

BEARING

SHAFT BEARING ASSEMBLY - pump

1шт.

17

A58646

GASKET

-, Serial Range: pump-body

1шт.

18

A166044

STUD

- pump to body, 3/8 x 1-7/16 inch NC-NF

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- 3/8 inch NC hex

4шт.

24

A65833

PULLEY

- fan, 7-5/8 inch diameter (193.68 mm) (Dozer Model)

1шт.

24

A65124

PULLEY

- fan, 8-3/4 inch diameter (222.25 mm) (Loader models)

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - pulley

1шт.

27

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- pulley retaining, 1/2 x 1-1/4 inch NF hex

1шт.
