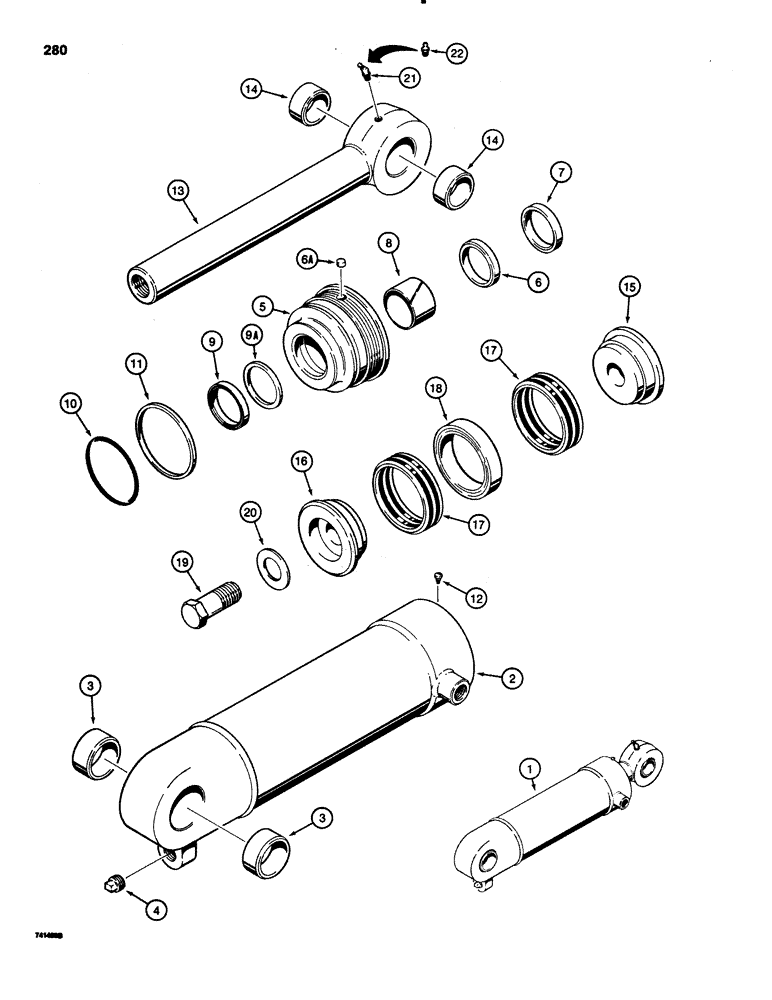

Запчасти Case 1150C (280) - G34638 AND G34639 LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

G34638

CYLINDER ASSY.

CYLINDER ASSEMBLY - right-hand clam, 4-1/2" (114 mm) ID x 10-1/2" (267 mm) stroke, Includes: Ref. 2 - 22

1шт.

1

G34639

CYLINDER

ASSEMBLY - left-hand clam, 4-1/2" (114 mm) ID x 10-1/2" (267 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G34640

TUBE,19.89" L

- G34638 cylinder, right-hand, Includes: Ref. 3 and 4

1шт.

2

G34641

JACK BODY,4.495" ID x 5.12" OD x 19.89" L

TUBE - G34639 cylinder, left-hand, Includes: Ref. 3 and 4

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- square head, 1/2" NPT

1шт.

G104950

GLAND

ASSEMBLY - cylinder, interchangeable with G34632 gland assembly, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

6a

G102569

PLUG

- nylon, thread-locking, gland, if used

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod, outer

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

9

D39359

RUBBER SEAL

U-CUP SEAL - piston rod, wide

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G100779

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

9a

G103447

RING

SEAL - piston rod, narrow, used in addtion to ref. 9 in some glands

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G34024

ROD

- piston, 2-1/4" (57 mm) diameter, Includes: Ref. 14

1шт.

14

D38478

BUSHING

- piston rod

2шт.

15

D46425

PISTON

- split, rod end

1шт.

16

D46931

PISTON

- split, bolt end

1шт.

17

D47205

PACKING

- piston

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G105520 same as G34628 kit plus ref. 9A above

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - packing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT, no longer used, replace with 219-1 straight grease fitting, ref. 22

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105520

GASKET KIT

KIT - seal, Includes Includes Refs. 7, 8, 9, 9A, 10, 11 and 17 and G34628 kit plus ref. 9A above

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

G100779

SEAL

- rod, service option - severe heat or cold

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
