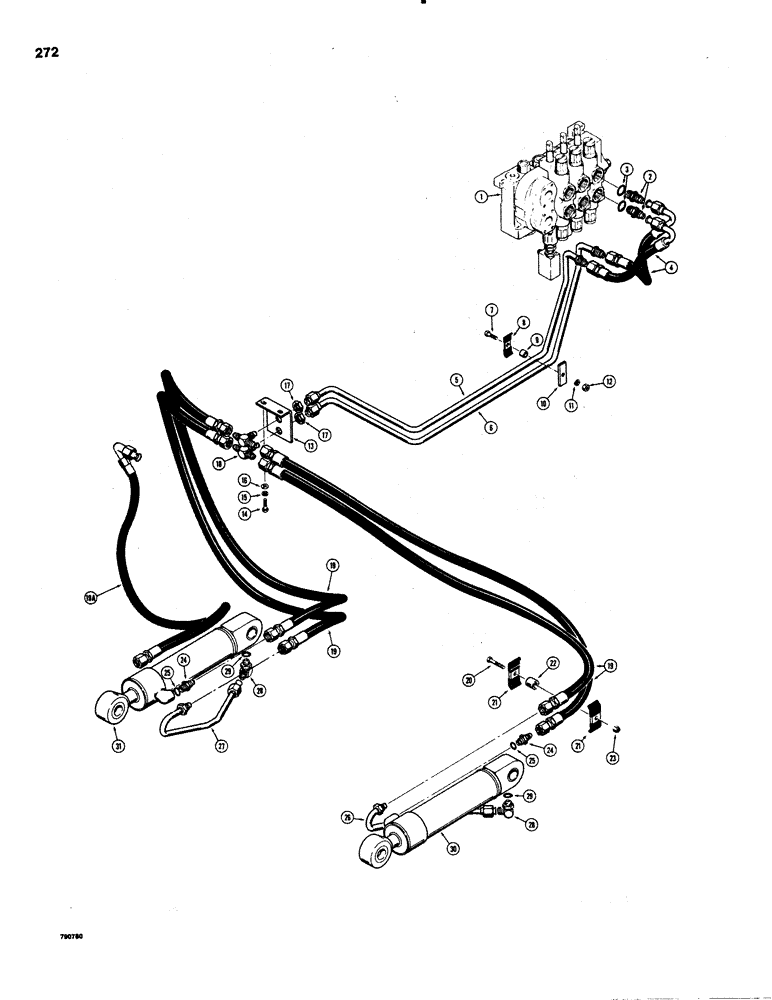

Запчасти Case 1150C (272) - RIPPER HYDRAULIC CIRCUIT, USED BEFORE TRACTOR SN 7308971 (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 310 - 314 for correct valve

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

R27628

HOSE

- at control valve

2шт.

5

R27629

TUBE,0.625" OD

- upper

1шт.

6

R27633

TUBE

- lower

1шт.

7

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

8

D40236

CLAMP

- tube

1шт.

9

D76209

SPACER

- clamp, split

1шт.

10

D40083

BLOCK

- clamp mounting

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

13

R27631

BRACKET

- tube and hose mounting

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

18

218-806

TEE,7/8"-14, 37 Degree, Blkhd

2шт.

19

D27978

HOSE

- at cylinder, 30-3/4" (781 mm) long, straight end fitting, service with R42533 hose

4шт.

19a

R42533

HOSE

- at cylinder, 28" (711 mm) long, 45 degree end fitting

4шт.

20

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

D33316

CLAMP

- hose

4шт.

22

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- clamp

2шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

24

D39885

BEARING

RESTRICTOR - male, straight, Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- restrictor

1шт.

26

R29282

TUBE,0.625" OD

- to closed end of cylinder, right-hand

1шт.

27

R29283

TUBE,0.625" OD

- to closed end of cylinder, left-hand

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, male, Incl. Ref. 28

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

30

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - ripper, right-hand, parts list Figure 292

1шт.

31

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

CYLINDER - ripper, left-hand, parts list Figure 292

1шт.
