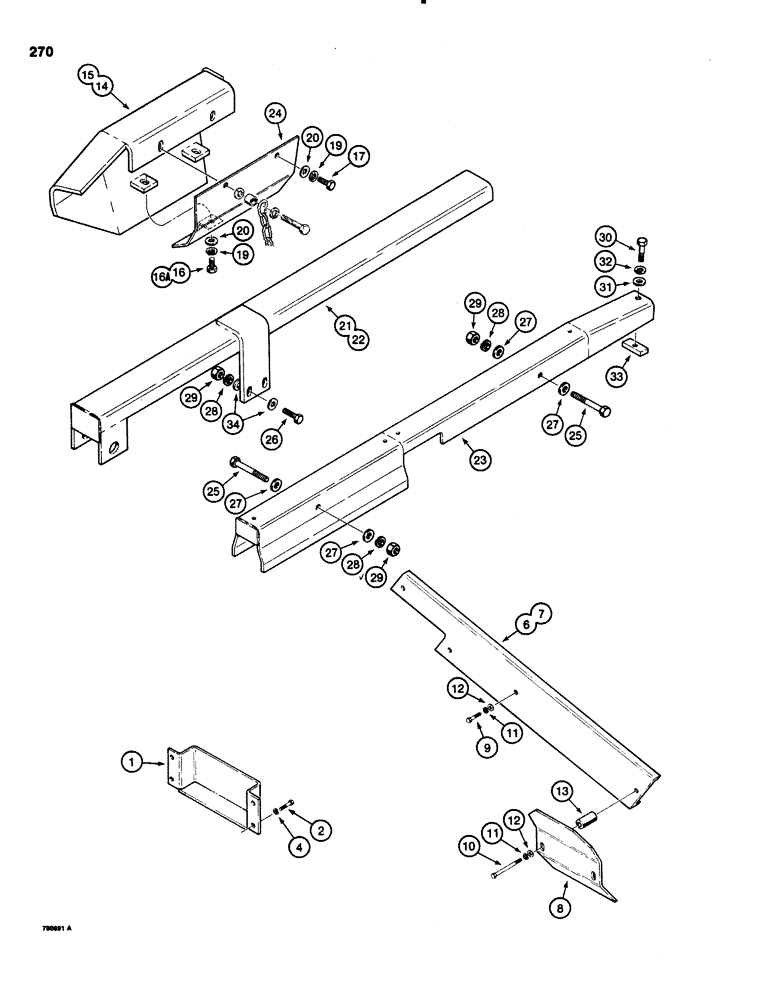

Запчасти Case 1150C (270) - ANGLE TILT PITCH HYDRAULIC GUARDS (08) - HYDRAULICS

1

R41555

GUARD ASSY.

GUARD - fittings at grille

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

6

R34413

GUARD

- channel, back of blade, left-hand

1шт.

7

R34414

GUARD

- channel, back of blade, right-hand

1шт.

8

R33757

GUARD

- back of blade, center

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

10

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

11

92-8

LOCK WASHER,1/2"

8шт.

12

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

13

R28699

BUSHING

SPACER - guards

2шт.

14

R34529

GUARD

- left-hand tilt cylinder, outer

1шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

15

R34530

GUARD

- right-hand tilt cylinder, outer

1шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

16

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used on cylinder guards with holes, if used Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

16a

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on cylinder guards with slots, if used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

17

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

19

92-8

LOCK WASHER,1/2"

6шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

20

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

21

R37087

GUARD

- left-hand, angle cylinder rod

1шт.

22

R37088

GUARD

- right-hand, angle cylinder rod

1шт.

23

R41349

GUARD ASSY.

GUARD - angle cylinders

2шт.

24

R39329

GUARD

- left-hand tilt cylinder, inner

1шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

24

R39330

GUARD

- right-hand tilt cylinder, inner

1шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

25

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

26

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

27

195-33

WASHER,1/2"

- flat, 1/2"

8шт.

Part of hose guard kit P/N R39331 plus page 269

1шт.

28

92-8

LOCK WASHER,1/2"

8шт.

29

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

30

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

31

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

2шт.

33

R35933

BLOCK

- tapped

2шт.

34

R24718

WASHER

- hardened

8шт.

R39331

GUARD ASSY.

KIT - hose guard, Includes Refs. 14, 15, 16, 17, 19, 24 and 27 plus additional items on Figure 268

1шт.
