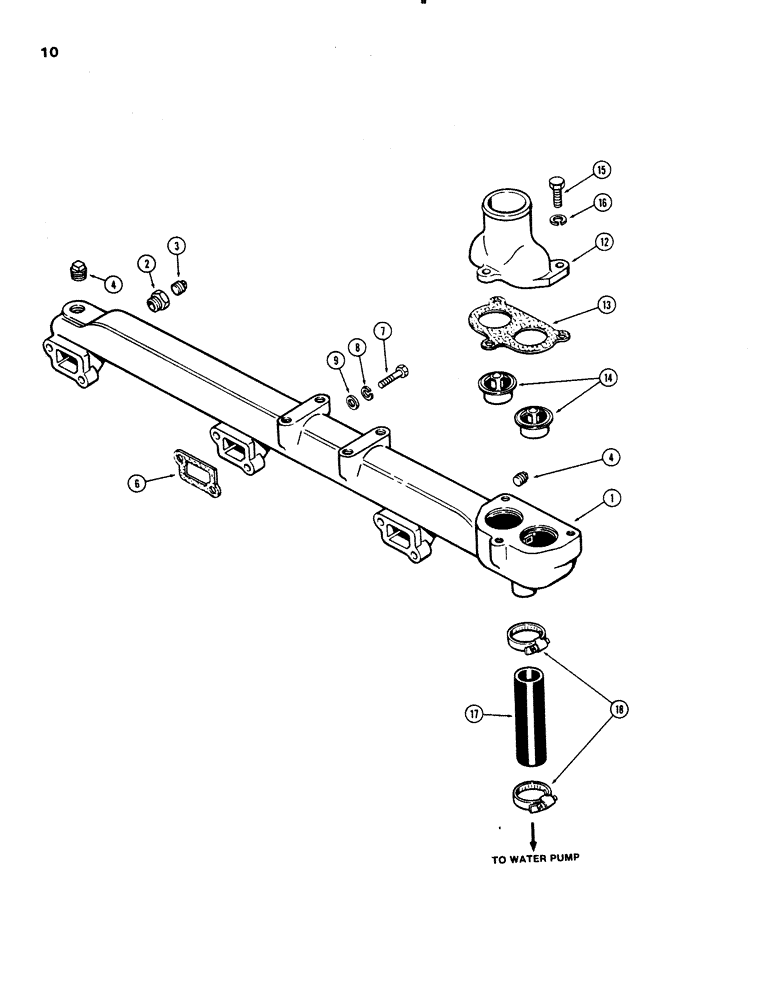

Запчасти Case 1150C (010) - WATER MANIFOLD AND THERMOSTAT, 451BD DIESEL ENGINE (02) - ENGINE

A153152

MANIFOLD

ASSEMBLY - water, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water (Order A153152)

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing, 1/2 PT to 3/8 inch PT

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8 inch PT, socket head

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2 inch PT, socket head

2шт.

6

A58637

MANIFOLD GASKET

- manifold

3шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (9.52 x 20.64 x 1.59 mm)

6шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A58639

GASKET

- thermostat housing

1шт.

14

A57641

THERMOSTAT

- 180 degree F (82 degree C)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass, 1-1/4 ID x 5-5/16 inch (31.75 x 134.94 mm)

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30.16 to 44.45 mm)

2шт.
