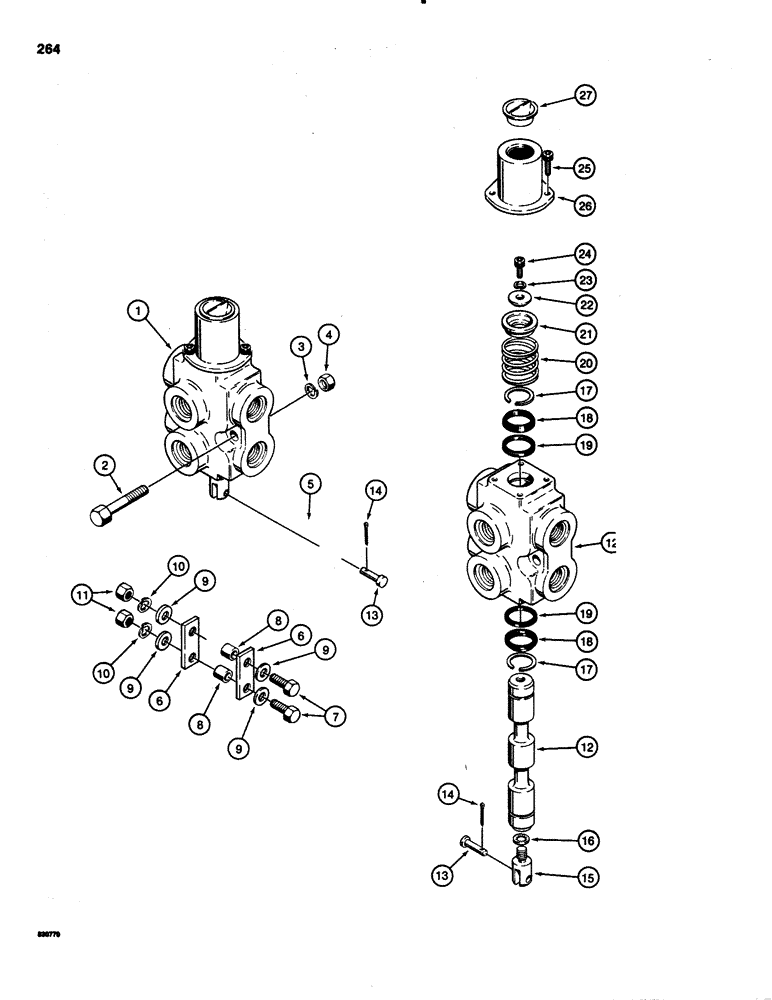

Запчасти Case 1150C (264) - SELECTOR VALVE AND CONTROLS, ATP DOZER MODELS ONLY, R24819 SELECTOR VALVE ASSY. (08) - HYDRAULICS

1

R24819

VALVE

SELECTOR VALVE - parts list below

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

5

R27516

HANDLE

- valve

1шт.

6

R27514

LINK

- handle to heel plate

2шт.

7

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

8

R30545

BUSHING

SPACER - valve handle links

2шт.

9

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

25-104

NUT,1/4"-20, G5

2шт.

R24819

VALVE

SELECTOR VALVE ASSEMBLY - tilt pitch hydraulic circuit, Includes: Ref. 12 - 27

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve

1шт.

13

R24869

AXLE PIN

CLEVIS PIN - spool eye

1шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

15

R24867

CLEVIS

- spool top

1шт.

16

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

17

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

18

R24871

SEAL

- dust

2шт.

19

R24866

RING

QUAD RING - spool

2шт.

20

N8540

SPRING

- valve

1шт.

21

R24872

SPRING SEAT

SEAT - spring

1шт.

22

R33483

WASHER

- special

1шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

24

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket head, 1/4" - 20 NC x 1/2"

1шт.

25

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket head, 1/4" - 20 NC x 3/4"

2шт.

26

N6521

CAP

- end

1шт.

27

N6522

PLUG

- dust, plastic

1шт.
