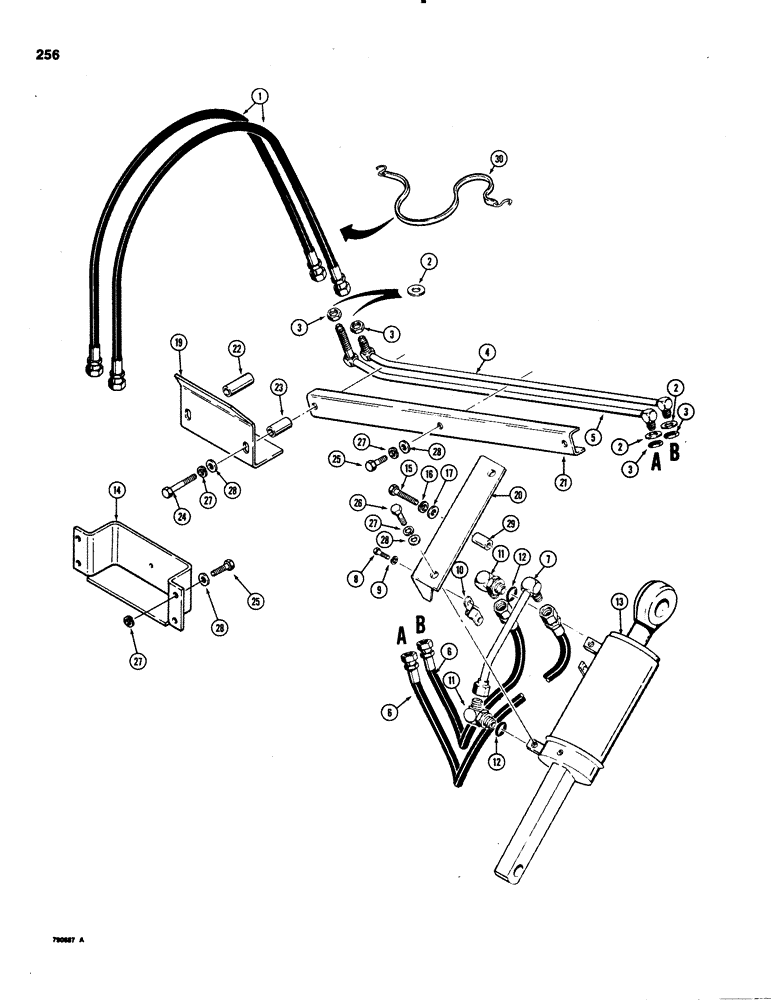

Запчасти Case 1150C (256) - TILT HYDRAULIC CIRCUIT - TILT DOZER MODELS, GRILLE TO CYLINDER (08) - HYDRAULICS

1

R31442

HOSE

- 46" (1168 mm) long

2шт.

2

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

4шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

4

R35387

TUBE,0.5" OD x 35.4, 12.6" L

- upper, 96" (2438 mm) dozer blade only

1шт.

4

R35416

TUBE,0.5" OD x 39.31, 12.5" L

- upper, 104" (2642 mm) dozer blade only

1шт.

4

R35325

PIPE,0.5" OD x 49.34, 12.38" L

TUBE - upper, 124" (3150 mm) dozer blade only

1шт.

5

R35395

TUBE,0.5" OD

- lower, 96" (2438 mm) dozer blade only

1шт.

5

R35418

TUBE

- lower, 104" (2642 mm) dozer blade only

1шт.

5

R35385

TUBE,0.5" OD x 50.73, 0.5" L

- lower, 124" (3150 mm) dozer blade only

1шт.

6

36210

HOSE

- to cylinder, 21-1/2" (546 mm) long

2шт.

7

R26115

TUBE,0.5" OD x 6.9, 0.48" L

- cylinder, closed end

1шт.

8

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 1/2"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

R26118

CLAMP

- tube

1шт.

11

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

G33933

CYLINDER BLOCK

CYLINDER - tilt, parts list Figure 286

1шт.

14

R41555

GUARD ASSY.

GUARD - on grille

1шт.

15

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

19

R28698

PLATE ASSY.

GUARD - blade, center

1шт.

20

R26580

GUARD

- cylinder

1шт.

21

R35398

CHANNEL

GUARD - channel, 96" (2438 mm) dozer blade only

1шт.

21

R35446

GUARD - channel, 104" (2642 mm) dozer blade only

1шт.

21

R35383

CHANNEL

GUARD - channel, 124" (3150 mm) dozer blade only

1шт.

22

R32602

BUSHING

SPACER - center guard, left-hand side

1шт.

23

R28699

BUSHING

SPACER - center guard, right-hand side

1шт.

24

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

10шт.

28

195-33

WASHER,1/2"

- flat, 1/2"

10шт.

29

R26583

SPACER

- cylinder guard

1шт.

30

R34737

STRAP

- hose retaining, 104" (2642 mm) and 124" (3150 mm) blades only

1шт.
