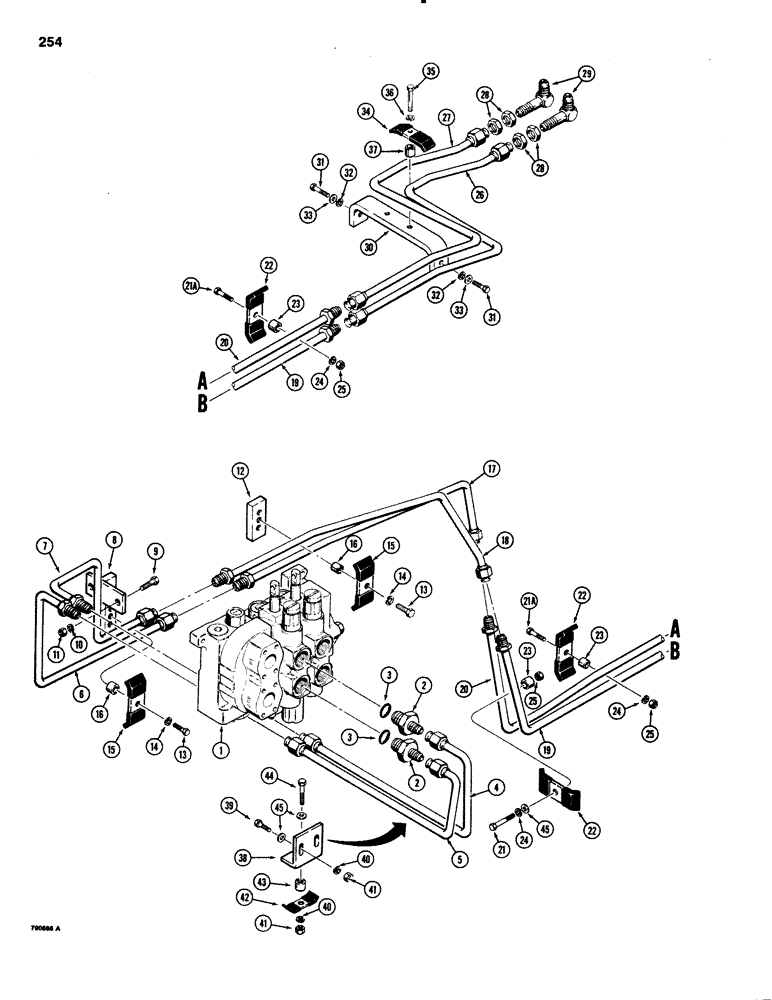

Запчасти Case 1150C (254) - TILT HYDRAULIC CIRCUIT - TILT DOZER MODELS, VALVE TO GRILLE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 308 - 314 for correct valve

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight, Includes: Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

R32145

TUBE,0.5" OD

- at valve, upper port

1шт.

5

R32147

TUBE,0.5" OD

- at valve, lower port

1шт.

6

R32194

TUBE,13 mm OD

- to valve, lower port

1шт.

REFS. 6 AND 7 REFERENCES ARE REVERSED, THE R32192 HAS 2 BENDS, AND THE R32194 HAS 3 BENDS PER THE PRINTS.

1шт.

7

R32192

TUBE,0.5" OD

- to valve, upper port

1шт.

8

R27748

BRACKET

- tube mounting

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

R27517

BLOCK

- tapped

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

D40236

CLAMP

- tube

2шт.

16

C18330

SPACER

- clamp

2шт.

17

R30543

TUBE,0.5" OD

- to valve, lower port

1шт.

18

R29930

TUBE,0.5" OD

- to valve, upper port

1шт.

19

R27428

PIPE,0.5" OD

TUBE - to valve, upper port

1шт.

20

R30541

TUBE,0.5" OD x 45.05, 7.45" L

- to valve, lower port

1шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

21a

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

22

D40236

CLAMP

- tubes

3шт.

23

C18330

SPACER

- tubes

3шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

26

R37973

TUBE,0.5" OD

- to valve, upper port

1шт.

27

R30759

TUBE,0.5" OD

- to valve, lower port

1шт.

28

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

29

R33311

FITTING

ELBOW - 90 degree, special

2шт.

30

R35905

SUPPORT

- tubes

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

34

R35909

CLAMP

- tube

1шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

C18330

SPACER

- clamp

1шт.

38

R42737

BRACKET

- clamp, tubes, at valve

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

3шт.

41

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

42

D40236

CLAMP

- tubes, at valve

1шт.

43

C18330

SPACER

- clamp

1шт.

44

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

45

95-6

WASHER,3/8"

- flat, 3/8"

4шт.
