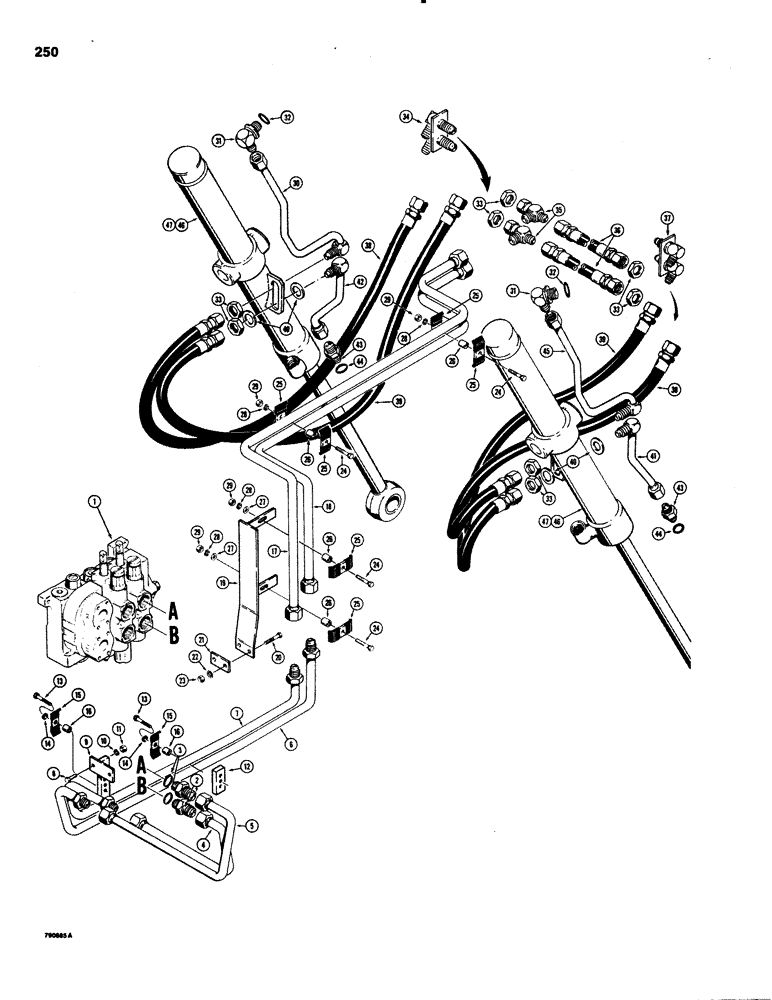

Запчасти Case 1150C (250) - DOZER LIFT HYDRAULIC CIRCUIT, ALL DOZER MODELS (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 308 thru 314 for correct valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - male, straight, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

R27419

TUBE,1" OD

- at valve, lower, B port

1шт.

Ref. 4 and 5 should be changed in the picture, the R27419 is the longer of the two, per prints

1шт.

5

R27411

TUBE,1" OD

- at valve, upper, A port

1шт.

6

R27413

TUBE,1" OD

- intermediate, A port

1шт.

7

R27415

TUBE,1" OD

- intermediate, B port

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

R27748

BRACKET

- tube mounting

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

R27517

BLOCK

- tapped, clamp mounting

1шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

D40236

CLAMP

- tubes

2шт.

16

D76210

SPACER

- tubes

2шт.

17

R27424

TUBE,1" OD

- upper, B port, models without turbocharger

1шт.

17

R39742

TUBE,1" OD

- upper, B port, models with turbocharger

1шт.

18

R27422

TUBE

- lower, A port, models without turbocharger

1шт.

18

R33877

TUBE,1" OD

- lower, A port, models with turbocharger

1шт.

19

R27421

BRACKET

- mounting, tube

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

21

R27439

BUSHING

PLATE - shim, bracket

1шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

25

D40236

CLAMP

- tube

6шт.

26

D76210

SPACER

- clamp

4шт.

27

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

30

R49612

PIPE

TUBE - to closed end of cylinder, left-hand

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 32 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16" - 12 NF

8шт.

34

R30963

MANIFOLD

- left-hand

1шт.

35

218-5483

TEE,1-1/16" - 12 JIC x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

- male, female

2шт.

36

R25834

HOSE

- crossover, 25" (635 mm) long

2шт.

37

R30962

MANIFOLD

- right-hand

1шт.

38

R25834

HOSE

- 25" (635 mm) long, to closed end of cylinder

2шт.

39

D21788

HOSE

- 31" (787 mm) long, to rod end of cylinder

2шт.

40

R47989

WASHER

- flat

8шт.

41

R27670

TUBE

- to rod end of cylinder, right-hand, tilt dozer models

1шт.

41

R27519

TUBE

- to rod end of cylinder, right-hand, ATP dozer models

1шт.

42

R27518

TUBE,0.75" OD

- to rod end of cylinder, left-hand, ATP dozer models

1шт.

42

R27669

PIPE,0.75" OD

TUBE - to rod end of cylinder, left-hand, tilt dozer models

1шт.

43

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 44

2шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

45

R49616

PIPE

TUBE - to closed end of cylinder, right-hand

1шт.

46

REF

INSTRUCTION

CYLINDER - lift, tilt dozer models, see Figure 282

2шт.

47

REF

INSTRUCTION

CYLINDER - lift, ATP dozer models, see Figure 284

2шт.
