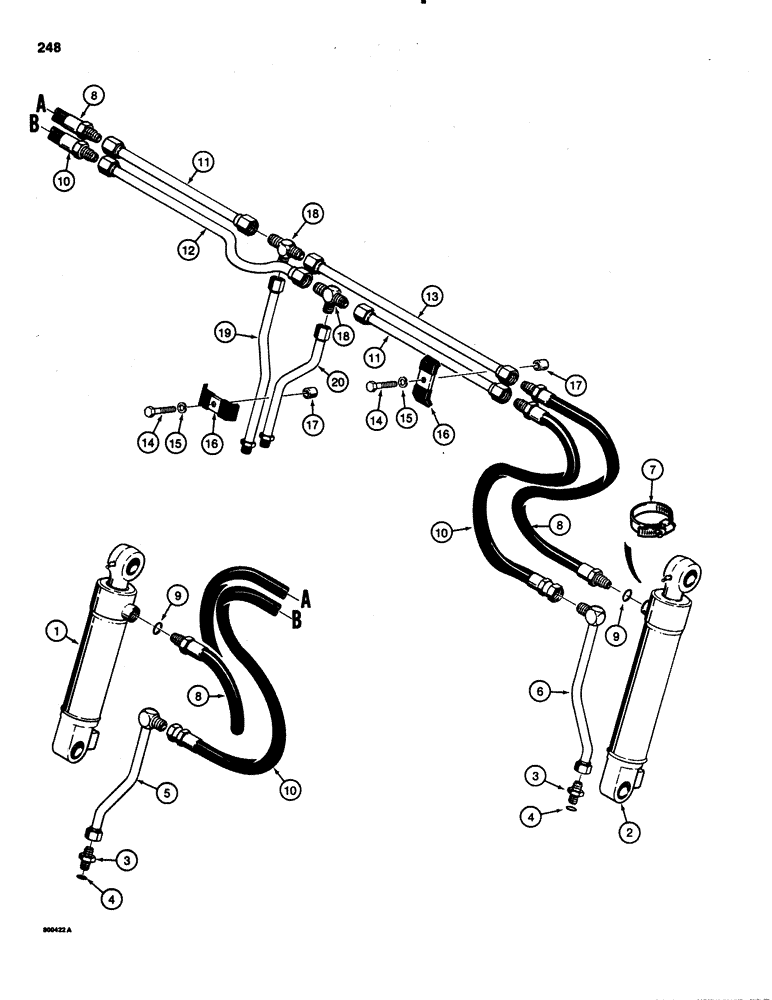

Запчасти Case 1150C (248) - CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

G34639

CYLINDER

- clam, left-hand, parts list Figure 280

1шт.

2

G34638

CYLINDER ASSY.

CYLINDER - clam, right-hand, parts list Figure 280

1шт.

3

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

5

D51304

TUBE

- left-hand cylinder, closed end

1шт.

6

D51306

TUBE

- right-hand cylinder, closed end

1шт.

7

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube to cylinder

2шт.

8

D51320

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

- upper, rod end of cylinder, 26" (660 mm) long, Includes: Ref. 9

2шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

10

D27073

HOSE

- lower, closed end of cylinder, 26" (660 mm) long

2шт.

11

D51258

TUBE

- right-hand lower, left-hand upper

2шт.

12

D51254

TUBE

- left-hand lower

1шт.

13

R31355

TUBE,0.625" OD x 21.2" L

- right-hand upper

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

3шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

D40236

CLAMP

- tubes

3шт.

17

D76209

SPACER

- clamp

3шт.

18

218-595

TEE,7/8"-14, 37 Degree

- male

2шт.

19

R25398

TUBE

- left-hand, vertical

1шт.

20

R25380

TUBE

- right-hand, vertical

1шт.
