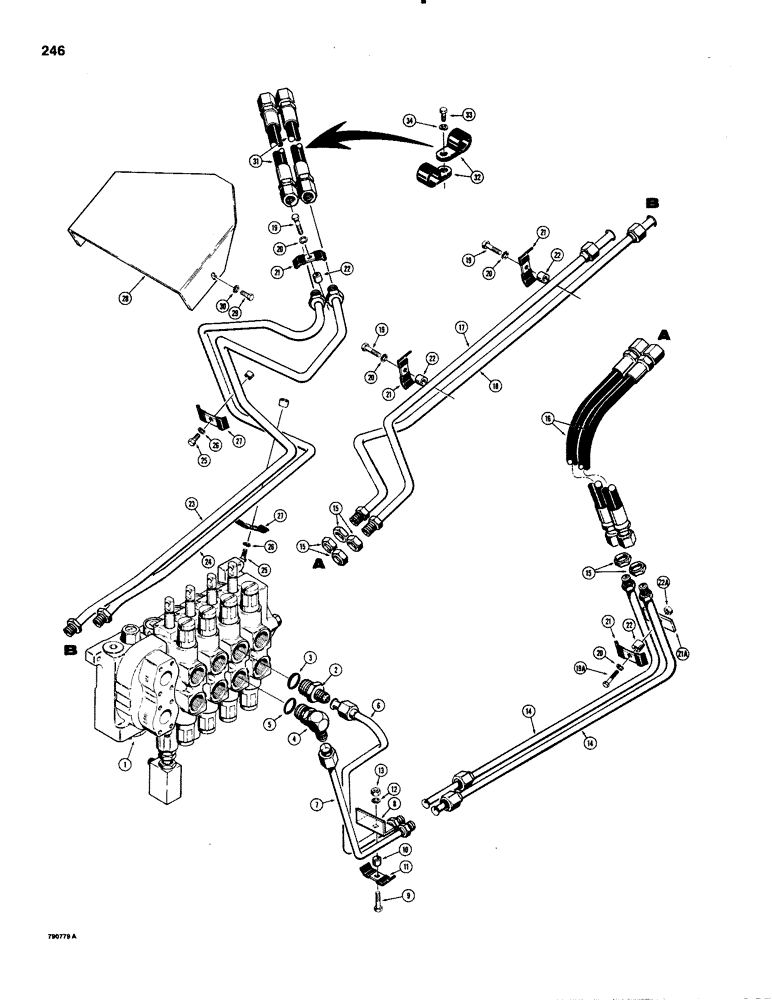

Запчасти Case 1150C (246) - LOADER CLAM HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 308 - 314 for correct valve

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, male, Includes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

R27729

PIPE,0.75" OD

TUBE - at valve, upper

1шт.

7

R27731

TUBE

- at valve, lower

1шт.

8

R27733

BRACKET

- tube support

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube

1шт.

11

D40236

CLAMP

- tube

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

14

R34467

TUBE,0.75" OD

- to hoses

2шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-3/16" - 12 NF

4шт.

REF. 15 BETWEEN THE TWO ROWS OF NUTS THERE IS A BRACKET R27738

1шт.

16

L15030

HYDRAULIC HOSE,0.75" ID x 30.00", SAE 100R2 Type A

HOSE, 0.75" ID x 30.00", SAE 100R2 Type A

2шт.

REF. 16 THERE ARE SOME NUTS SHOWN BETWEEN THE HOSES AND TUBES (REF. 15) NOT REQUIRED.

1шт.

17

R27739

TUBE

- loader lift frame, upper

1шт.

18

R27742

TUBE,0.75" OD

- loader lift frame, lower

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

3шт.

19a

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

D40236

CLAMP

- tube

4шт.

21a

R34469

PLATE ASSY.

BRACKET - clamp

1шт.

22

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube

4шт.

22a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

R27746

TUBE,0.75" OD

- loader lift frame, upper

1шт.

24

R27744

TUBE,0.75" OD

- loader lift frame, lower

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

D40236

CLAMP

- tube

2шт.

28

R30395

GUARD

- tubes

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

R31969

HOSE

- to bucket, 46" (1168 mm) long

2шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hoses, on back of loader clam bucket

2шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.
