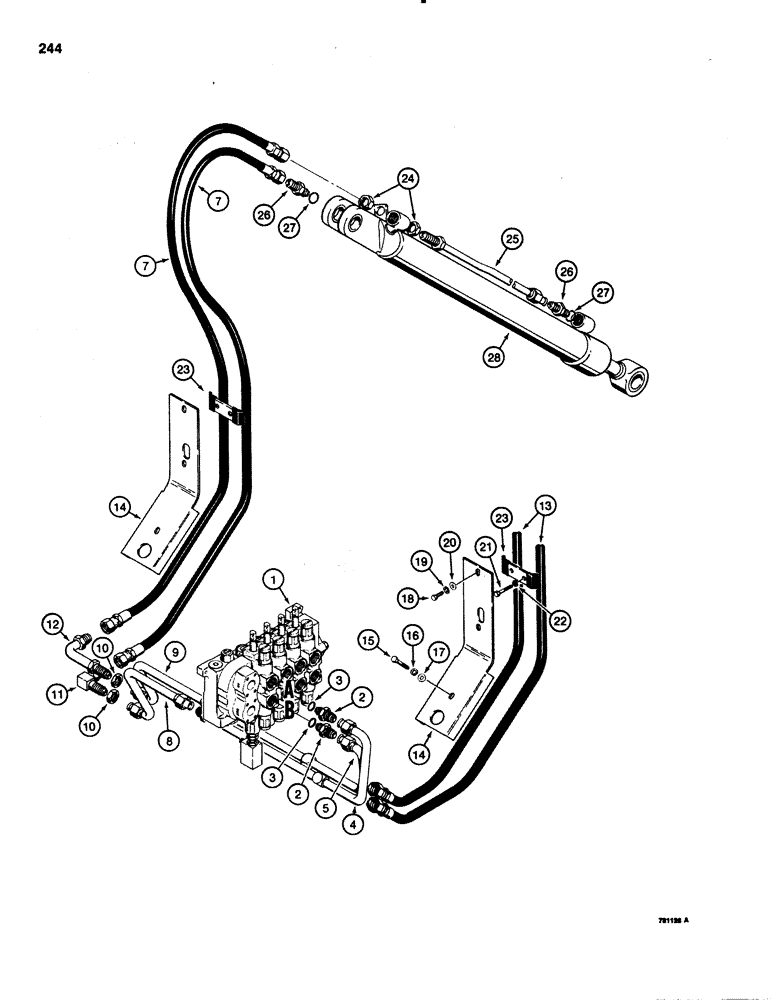

Запчасти Case 1150C (244) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 308 - 314 for correct valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

R41241

TUBE

- at valve, upper, A port

1шт.

5

R41240

TUBE,18.88, 7.1" L

- at valve, lower, B port

1шт.

7

R27800

HOSE

- 60" (1524 mm) long, left-hand

2шт.

8

R27786

TUBE

- crossover connection, A port

1шт.

9

R27784

TUBE

- crossover connection, B port

1шт.

10

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

11

R26018

FITTING

ELBOW - special

1шт.

12

R26020

TUBE

- upper, B port

1шт.

13

R30684

HOSE

- 70" (1778 mm) long, right-hand

2шт.

14

R33357

GUARD - hoses

2шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

May replace 1-1/4" bolt on some models Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

R31467

CLAMP

- hoses

2шт.

24

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16" - 12 NF

4шт.

25

R27807

TUBE

- to rod end of cylinder

2шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 27

4шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

28

G34765

CYLINDER

- bucket tilt, parts list Figure 278

2шт.
