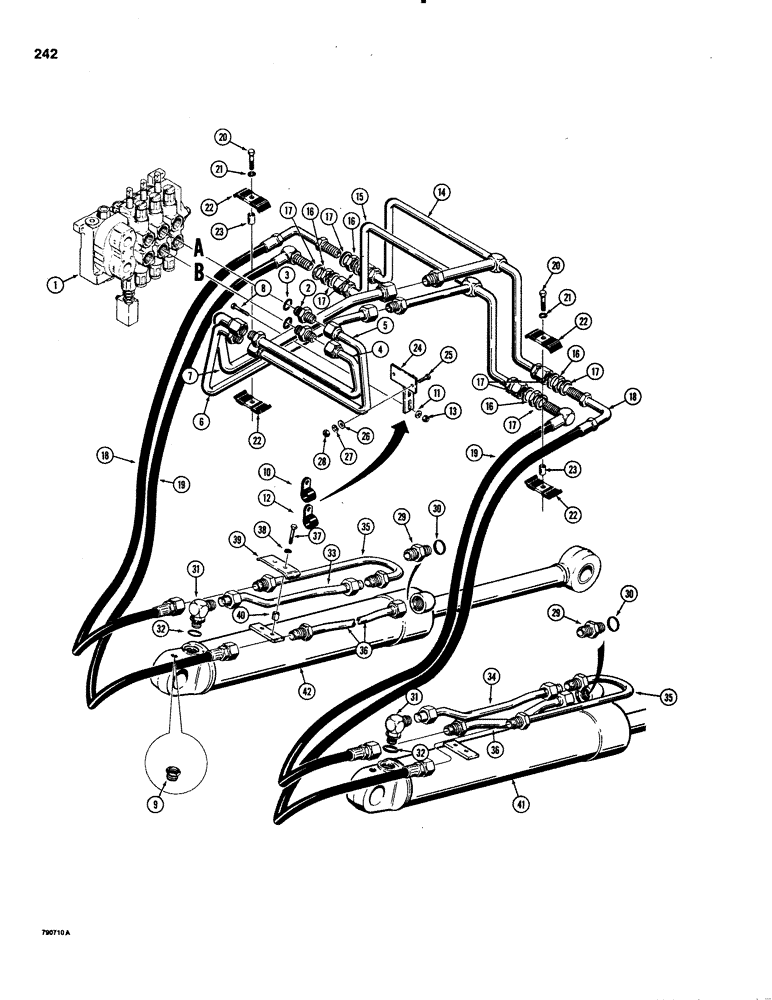

Запчасти Case 1150C (242) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 308 - 314 for correct valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 3

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

R27782

PIPE,1" OD

TUBE - at valve, lower, B port

1шт.

5

R27780

TUBE

- at valve, upper, A port, used before SN 7307711

1шт.

Do not mix old and new tubes on the same tractor.

1шт.

5

R42747

TUBE,1" OD

- at valve, upper, A port, used SN 7307711 and after

1шт.

Do not mix old and new tubes on the same tractor.

1шт.

6

R27792

TUBE

- to crossover, lower, A port, used before SN 7307711

1шт.

Do not mix old and new tubes on the same tractor.

1шт.

6

R42749

- to crossover, lower, A port, used SN 7307711 and after

1шт.

Do not mix old and new tubes on the same tractor.

1шт.

7

R27778

TUBE,1.25" OD

- to crossover, upper, B port

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

REDUCER - 1/4" - 1/8"

2шт.

For lube kit used on loader lift cylinders, see Figure 332.

1шт.

10

D40471

CLAMP

- item 7 tube, upper

1шт.

11

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

12

R14668

CLAMP

- item 6 tube, lower

1шт.

13

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

14

R31494

TUBE

- crossover, upper, B port

1шт.

15

R31490

TUBE

- crossover, lower A port

1шт.

16

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

4шт.

17

195-2131

WASHER,1 3/8" x 2" x .065"

- flat

8шт.

18

R27796

HOSE

- outer

2шт.

19

R27795

HOSE

- inner

2шт.

20

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

R27809

CLAMP

- hoses

4шт.

23

R46451

SPACER

- clamps

2шт.

24

R36862

SUPPORT

BRACKET - tube support

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

26

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

29

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, male, Incl. Ref. 30

2шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

31

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, adjustable, Incl. Ref. 32 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

33

R31597

TUBE,1" OD x 20.15, 2" L

- closed end of cylinder, left-hand

1шт.

34

R31598

TUBE

- closed end of cylinder, right-hand

1шт.

35

R31460

PIPE,1" OD x 16.9, 40" L

TUBE - closed end of cylinder

2шт.

36

R31456

TUBE,1" OD x 24.95, 1.5" L

- rod end of cylinder

2шт.

37

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

38

92-6

LOCK WASHER,3/8"

4шт.

39

R31466

CLAMP

- tube

2шт.

40

D76210

SPACER

- clamp

4шт.

41

G34836

CYLINDER

- right-hand lift, parts list Figure 276

1шт.

42

G34837

CYLINDER

- left-hand lift, parts list Figure 276

1шт.
