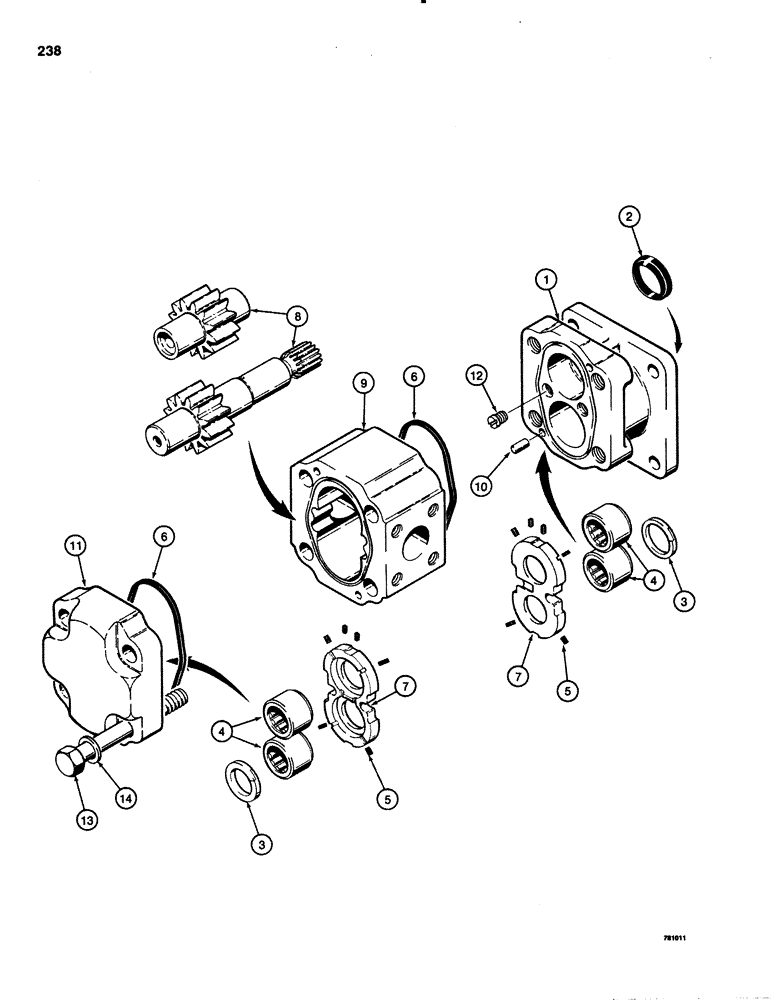

Запчасти Case 1150C (238) - R42142 HYDRAULIC PUMP, USED ON DOZER AND DRAWBAR MODELS BR TRAC SN 7308701 (08) - HYDRAULICS

R42142

PUMP

ASSEMBLY - hydraulic, Commercial Shearing No. 3139611004, dozer and drawbar models, Includes: Ref. 1 - 14

1шт.

1

D83213

COVER ASSY

COVER - shaft end

1шт.

2

L32318

SEAL

OIL SEAL - outer

1шт.

3

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

OIL SEAL - inner

2шт.

4

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- gear

4шт.

5

L32099

SEAL

- wear plate

12шт.

6

D41391

O-RING

GASKET - rear cover and gear housing

2шт.

7

D70680

PLATE

- wear

2шт.

8

D83211

GEAR-SET

GEAR SET - matched

1шт.

9

D83212

HOUSING

- gear

1шт.

10

W16323

DOWEL

PIN - cover locating

4шт.

11

D73613

COVER

- rear

1шт.

12

L32320

PLUG

- shaft cover

1шт.

13

26-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 8

- hex head, 5/8" - 11 NC x 5-3/4", grade 8

4шт.

14

D31957

WASHER

- hardened

4шт.
