(236) - R38214 HYDRAULIC PUMP, USED ON LOADER MODELS BEFORE TRACTOR SN 7308951

Запчасти Case 1150C (236) - R38214 HYDRAULIC PUMP, USED ON LOADER MODELS BEFORE TRACTOR SN 7308951 (08) - HYDRAULICS

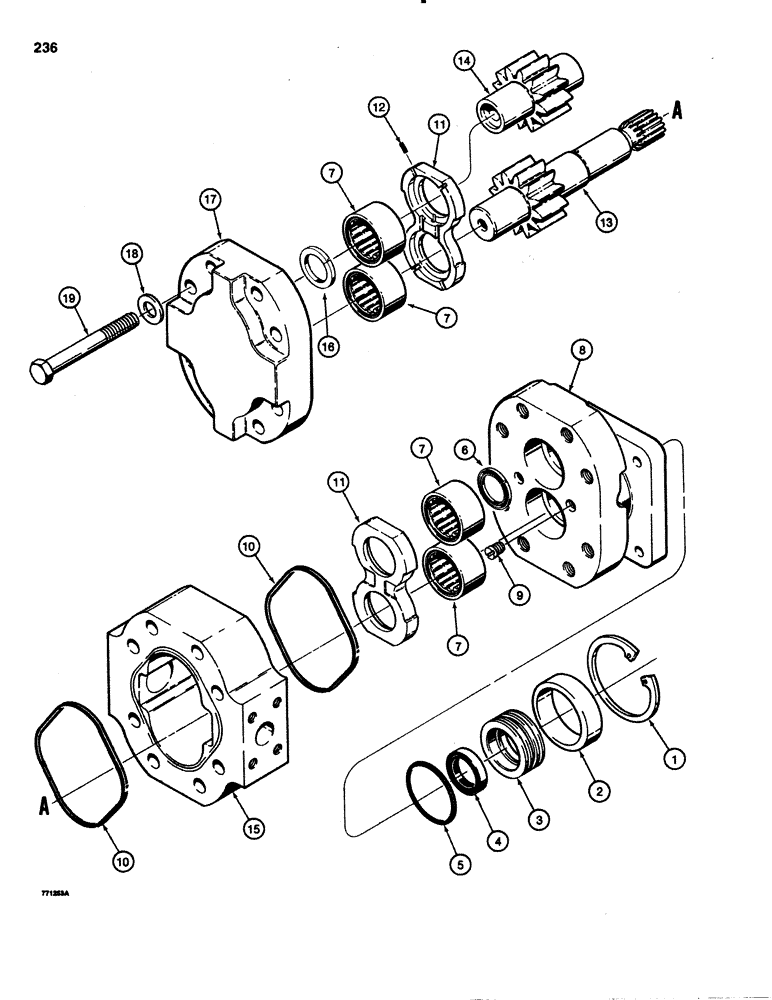

Схема запчастей Case 1150C - (236) - R38214 HYDRAULIC PUMP, USED ON LOADER MODELS BEFORE TRACTOR SN 7308951 (08) - HYDRAULICS
19
6
8
1
17
12
4
7
10
7
9
14
13
16
2
7
15
5
18
3
10
11
7
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R38214

PUMP

ASSEMBLY - hydraulic, Commercial Shearing No. 3169310040, loader models, Includes: Ref. 1 - 19

1шт.

1

NLS

NO LONGER SERVICED

3.156", Int, #315, pump

1шт.

2

W14026

SPACER

- cover

1шт.

3

W14025

RETAINER

- seal

1шт.

4

A16796

SEAL

OIL SEAL - drive gear

1шт.

5

A57116

O-RING,2.612 mm ID x 2.818 mm OD x -H288 mm

- retainer

1шт.

6

S82765

SEALING RING

OIL SEAL - driven gear

1шт.

7

A16793

NEEDLE BEARING

ROLLER BEARING - gear

4шт.

8

D77512

VALVE

COVER - shaft end

1шт.

9

L32320

PLUG

- cover

1шт.

10

S82795

GASKET

- cover

2шт.

11

S82770

PLATE

- wear

2шт.

12

W14886

PLUG

SEAL - wear plate

12шт.

S87297

GEAR-SET

GEAR SET - pump, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

14

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump

1шт.

15

D77513

HOUSING

- gear

1шт.

16

S82765

SEALING RING

OIL SEAL - driven gear

1шт.

17

W14027

COVER

- rear

1шт.

18

D31957

WASHER

- hardened

8шт.

19

26-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 8

- hex head, 5/8" - 11 NC x 5-1/4", grade 8

8шт.
