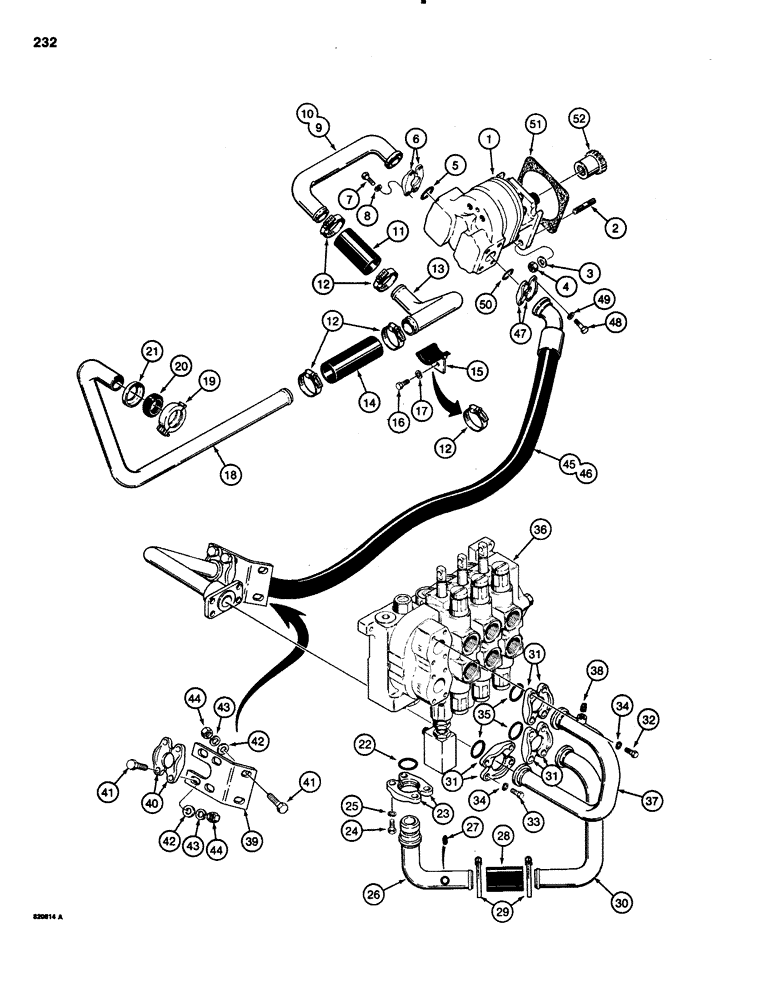

Запчасти Case 1150C (232) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO RESERVOIR AND CONTROL (08) - HYDRAULICS

1

R46243

PUMP

ASSEMBLY - used on loader models tractor SN 7308951 and after, used on dozer models tractor SN 7308701 and after, parts list Figure 240

1шт.

For the hydraulic circuit on models with a Commercial Shearing pump, see Figure 228.

1шт.

2

R46073

STUD

- 1/2" - 13 NC x 2"

4шт.

3

R24718

WASHER

- hardened, 1/2"

4шт.

4

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- 1-1/2"

1шт.

6

A14157

FLANGE

CLAMP - split flange

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

R45558

TUBE,50.8 - 60.5 mm OD x 317.5, 127 mm L

- dozer and drawbar models, used on tractor SN 7308701 - tractor SN 7308950

1шт.

9

R46557

PIPE,1.998" ID x 2 - 2.38" OD

TUBE - dozer and drawbar models, used on tractor SN 7308951 and after

1шт.

10

R43809

TUBE ASSY.

TUBE - loader models

1шт.

11

R43919

HOSE

- 2" (51 mm) ID x 5-1/2" (140 mm) long

1шт.

12

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

5шт.

13

R43814

TUBE,2" OD

- to pump

1шт.

14

R45493

HOSE,50.80 mm ID x 203.20 mm

1шт.

15

R38740

BRACKET

- tube

1шт.

16

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

R38734

TUBE,2" OD

- from reservoir to pump

1шт.

19

R30064

CLAMP

- tube, at hydraulic reservoir

1шт.

20

R30065

GASKET

- tube

1шт.

21

R30066

RETAINER

- gasket

1шт.

22

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- hydraulic reservoir

1шт.

23

R27612

CLAMP

- split flange, at hydraulic reservoir

2шт.

REF. 23-THE ARTWORK IS INCORRECT ON THIS PART NUMBER IT ONLY HAS 1 BOLT HOLE

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

R27310

TUBE

- return, at hydraulic reservoir

1шт.

27

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

28

R43918

HOSE

- 1-1/2" (38 mm) ID x 4-1/2" (114 mm) long

1шт.

29

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

2шт.

30

R40140

TUBE,1.5" OD

- return, at control valve

1шт.

31

A12301

CLAMP,Half

CLAMP - split flange

6шт.

32

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

8шт.

33

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

34

92-7

LOCK WASHER,7/16"

12шт.

35

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/4"

3шт.

36

REF

INSTRUCTION

CONTROL VALVE - see Figures 308 - 314 for correct control valve

1шт.

37

R33811

TUBE

- at control valve inlet

1шт.

38

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

39

R33616

BRACKET

- hose mounting

1шт.

40

A14157

FLANGE

CLAMP - split flange

2шт.

41

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

6шт.

42

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

43

92-8

LOCK WASHER,1/2"

6шт.

44

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

45

R45561

TUBE ASSY.

HOSE - to pump, dozer models, used on tractor SN 7308701 thru tractor SN 7308950

1шт.

45

R46576

HOSE

- to pump, dozer models, used on tractor SN 7308951 and after

1шт.

46

R38289

HOSE

- to pump, loader models

1шт.

47

A12301

CLAMP,Half

CLAMP - split flange

2шт.

48

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

49

92-7

LOCK WASHER,7/16"

4шт.

50

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- pump, 1-1/4"

1шт.

51

D32004

GASKET

- pump

1шт.

52

R46562

PINION

GEAR - equipment pump drive, 2" (51 mm) total length, used on tractor SN 7308951 and after

1шт.
