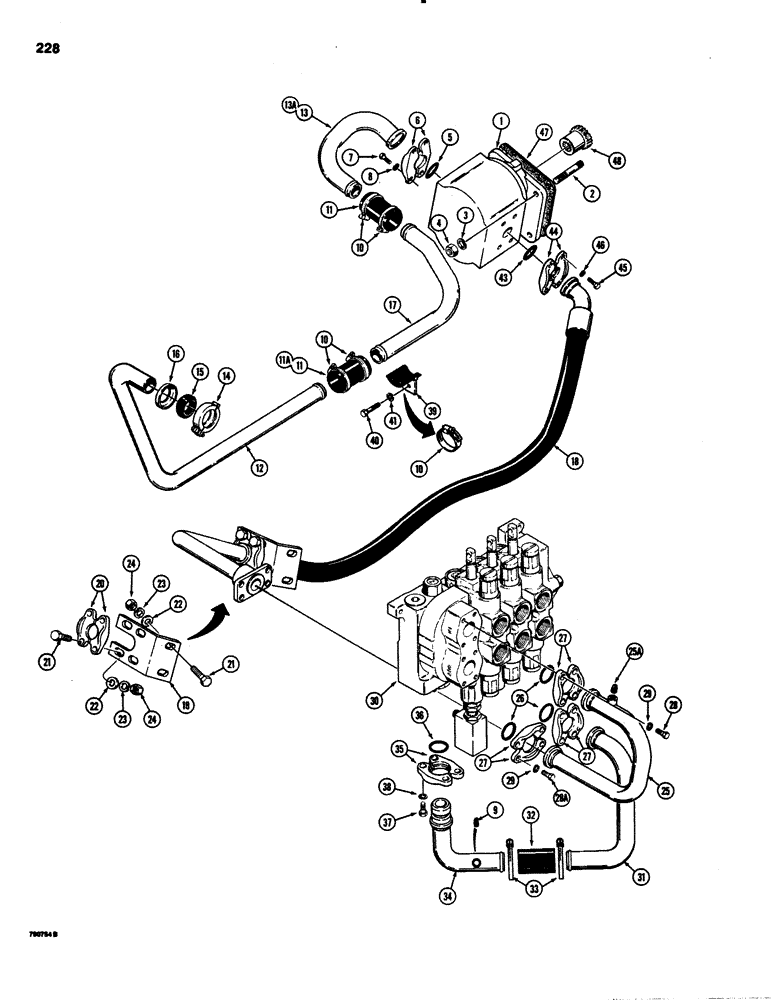

Запчасти Case 1150C (228) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO RESERVOIR AND CONTROL (08) - HYDRAULICS

1

R38214

PUMP

ASSEMBLY - loader models, used before tractor SN 7308951, parts list Figure 236

1шт.

For the hydraulic circuit on models with a Sperry Vickers pump, see Figure 232.

1шт.

1

R42142

PUMP

ASSEMBLY - dozer and drawbar models, used before tractor SN 7308701, parts list Figure 238

1шт.

For the hydraulic circuit on models with a Sperry Vickers pump, see Figure 232.

1шт.

2

G102127

STUD

- 1/2" - 13 NC x 3-3/8"

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

5

S6592

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 2", dozer and drawbar models

1шт.

5

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- 1-1/2", loader models

1шт.

6

A14141

FLANGE

CLAMP - split flange, dozer and drawbar models

2шт.

6

A14157

FLANGE

CLAMP - split flange, loader models

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

10

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

5шт.

11

R43919

HOSE

- 2" (51 mm) ID x 5-1/2" (140 mm) long, two used before tractor SN 7308496, one used on tractor SN 7308496 and after

1-2шт.

11a

R45493

HOSE,50.80 mm ID x 203.20 mm

Used on Tractor SN 7308496 and After 50.80 mm ID x 203.20 mm

1шт.

12

R38734

TUBE,2" OD

- at reservoir

1шт.

13

R42138

TUBE

- dozer and drawbar models, used before tractor SN7308496

1шт.

13a

R43862

TUBE,2 - 2.81" OD

- dozer and drawbar models, used on tractor SN 7308496 thru 7308700

1шт.

13

R38738

PIPE FITTING,1.998" ID x 2 - 2.38" OD

TUBE - loader models, used before tractor SN 7308498

1шт.

13a

R43809

TUBE ASSY.

TUBE - loader models, used on tractor SN 7308498 and after

1шт.

14

R30064

CLAMP

- tube, at hydraulic reservoir

1шт.

15

R30065

GASKET

- tube

1шт.

16

R30066

RETAINER

- gasket

1шт.

17

R38735

TUBE,2" OD

- to pump, used before tractor SN 7308496

1шт.

17

R43814

TUBE,2" OD

- to pump, used tractor SN 7308496 and after

1шт.

18

R27927

HOSE

- dozer models, used before tractor SN 7308701

1шт.

18

R38289

HOSE

- loader models

1шт.

19

R33616

BRACKET

- hose mounting

1шт.

20

A14157

FLANGE

CLAMP - split flange

2шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

6шт.

22

195-33

WASHER,1/2"

- flat, 1/2"

6шт.

23

92-8

LOCK WASHER,1/2"

6шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

6шт.

25

R33811

TUBE

- pump to control valve, Includes: Ref. 25A

1шт.

25a

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

26

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- tubes

3шт.

27

A12301

CLAMP,Half

CLAMP - split flange

6шт.

28

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

8шт.

28a

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

29

92-7

LOCK WASHER,7/16"

12шт.

30

REF

INSTRUCTION

CONTROL VALVE - equipment, see Figures 308 - 314 for correct valve

1шт.

31

R40140

TUBE,1.5" OD

- to hydraulic reservoir, at control valve

1шт.

32

R43918

HOSE

- 1-1/2" (38 mm) ID x 4-1/2" (114 mm)

1шт.

33

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

adjustable 1.25/2.625 HD Worm

2шт.

34

R27310

TUBE

- return, at hydraulic reservoir

1шт.

35

R27612

CLAMP

- split flange

2шт.

This clamp only has one bolt hole.

1шт.

36

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- tube, at hydraulic reservoir

1шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

R38740

BRACKET

- tube support

1шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

43

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

- 1-1/2", dozer models

1шт.

43

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/4", loader models

1шт.

44

A14157

FLANGE

CLAMP - split flange, dozer models

2шт.

44

A12301

CLAMP,Half

CLAMP - split flange, loader models

2шт.

45

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Loader models

4шт.

45

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Dozer models Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

46

92-7

LOCK WASHER,7/16"

if used 7/16"

4шт.

46

92-8

LOCK WASHER,1/2"

if used 1/2"

4шт.

47

D32004

GASKET

- pump

1шт.

48

D37030

HUB

GEAR - equipment pump drive, 3" (76 mm) total length, used before tractor Sn 7308951

1шт.
