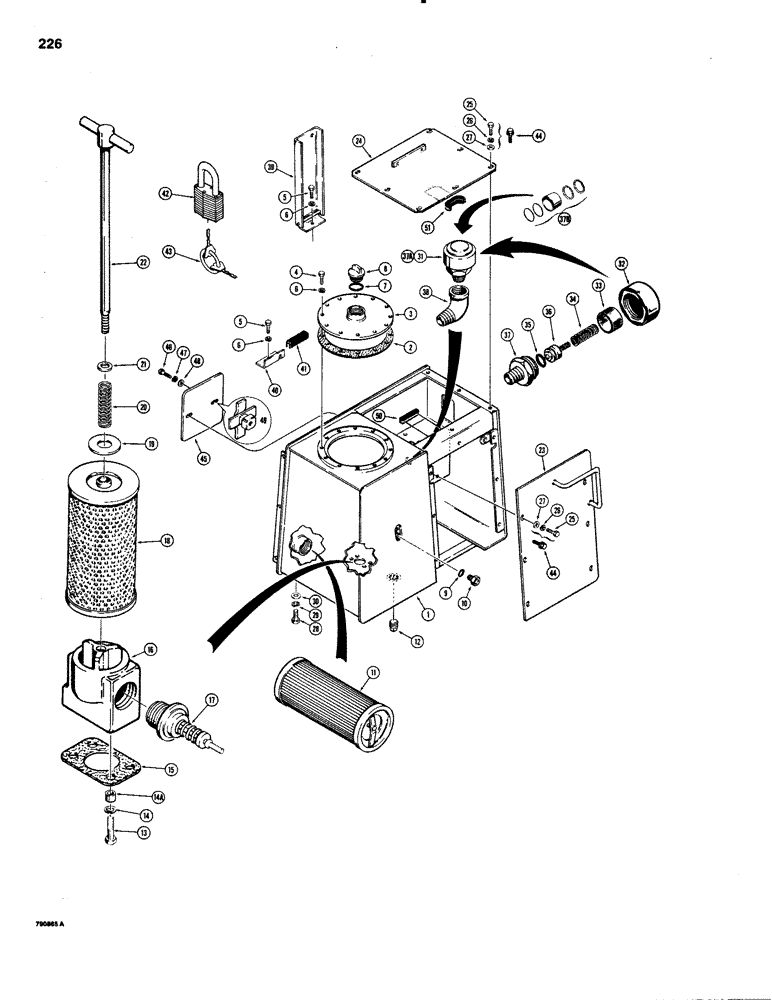

Запчасти Case 1150C (226) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

R43216

TANK

HYDRAULIC RESERVOIR - oil, includes decals

1шт.

2

R27346

GASKET

- cover

1шт.

3

R27322

PLATE

COVER - hydraulic reservoir

1шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

12шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with Ref. 39, if used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

12шт.

7

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- cap

1шт.

8

L100349

PLUG

CAP - filler, metal, may replace plastic cap used on some models

1шт.

10

R29753

ELECTRICAL GAUGE

SIGHT GAUGE - hydraulic reservoir

2шт.

11

D42995

FILTER

- suction

1шт.

12

221-18

PLUG - square head, 1-1/2" NPT Sq Hd, 1 1/2"-11 1/2 NPTF

1шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

14a

T53868

BUSHING

SPACER - bolt

2шт.

15

R27324

GASKET

- filter block

1шт.

16

R36277

BLOCK ASSY.

BLOCK - filter

1шт.

17

R27525

VALVE

BYPASS VALVE - filter

1шт.

18

L52029

FILTER, ELEMENT

ELEMENT - filter

1шт.

19

95-12

WASHER,3/4"

- flat, 3/4"

1шт.

20

F61200

SPRING

- filter

1шт.

21

95-8

WASHER,1/2"

flat 1/2"

1шт.

22

R36602

ROD

- filter

1шт.

23

R29648

HOOD

PLATE - side cover

1шт.

24

R43215

LARGE PLATE

PLATE - top cover, includes decals, all models except winch

1шт.

24

R43217

LARGE PLATE

PLATE - top cover, includes decals, winch model

1шт.

25

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

If used, may be replaced with flange head bolt, Ref. 44 Hex, 3/8"-16 x 1 1/8", G5, Full Thd

14шт.

26

92-6

LOCK WASHER,3/8"

if used 3/8"

14шт.

27

195-25

WASHER,3/8"

- flat, , if used 3/8"

14шт.

28

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

30

195-41

WASHER,5/8"

4шт.

31

R24861

BREATHER

ASSEMBLY - hydraulic reservoir, use R42714 breather, item 37A, Includes: Ref. 32 - 37

1шт.

32

R30266

CAP

- breather

1шт.

33

R30267

TUBE

FILTER - breather

1шт.

34

R30268

SPRING

- breather

1шт.

35

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- valve

1шт.

36

R30269

VALVE

- breather

1шт.

37

R30271

FITTING

ADAPTER - breather

1шт.

37a

R42714

BREATHER

ASSEMBLY - hydraulic reservoir, Includes: Ref. 37B

1шт.

37b

N6475

SET

KIT - breather, includes element, 2 O-rings and 2 snap rings

1шт.

38

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

39

R31153

GUARD

- filler cap, if used

1шт.

40

R31155

ANGLE

BRACKET - guard, if used

1шт.

41

R38772

RUBBER STRIP

TRIM - bracket

1шт.

42

D93753

PADLOCK

- hydraulic cap guard, includes keys, if used, Includes: Ref. 43

1шт.

43

R29555

KEY

- for Master padlock only

2шт.

43

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

44

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

May replace regular hex head bolt, lock washer and flat washer on some models Hex Flg, 3/8"-16 x 1", G8, Full Thd

14шт.

45

R30357

COVER

- control valve access, if used

1шт.

46

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

47

92-6

LOCK WASHER,3/8"

2шт.

48

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

49

R30355

STEEL SHEET NUT

RETAINER - cover

2шт.

50

REF

INSTRUCTION

TRIM - edge, reservoir frame, used on pressurized cab models with heater only, 2" (51 mm) long, cut from D52812

1шт.

For noise reduction pads, see Figure 402.

1шт.

51

REF

INSTRUCTION

TRIM - edge, cover plate, used on pressurized cab models with heater only, 3" (76 mm) long, cut from D52812

1шт.

For noise reduction pads, see Figure 402.

1шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.

For noise reduction pads, see Figure 402.

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- sight gauge

2шт.
