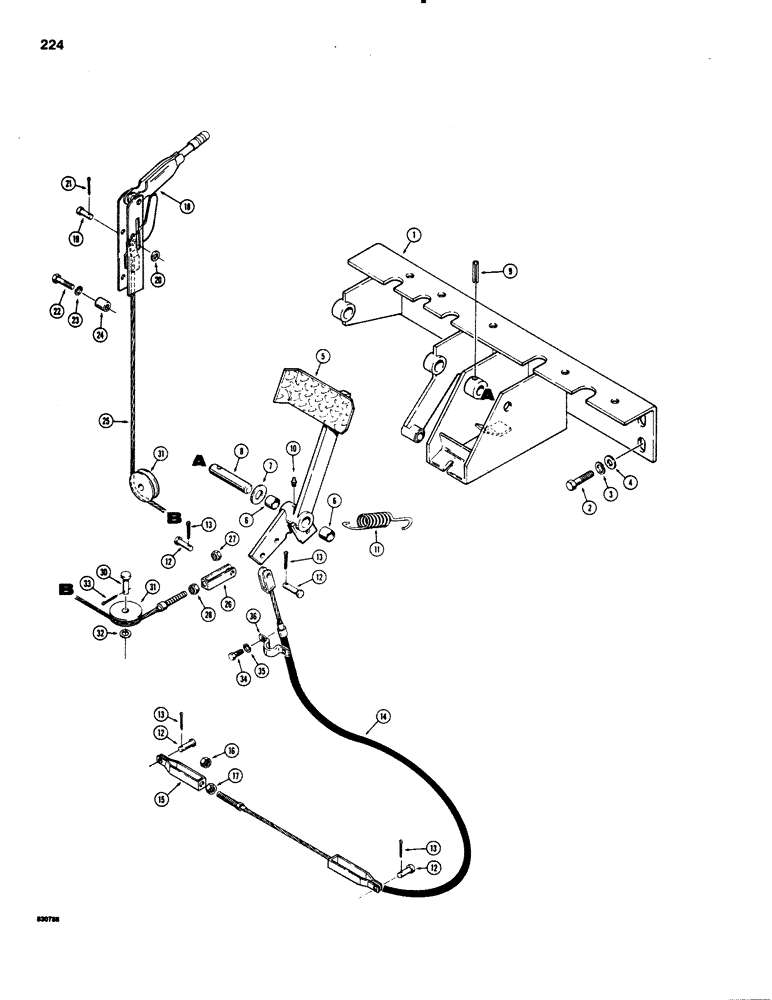

Запчасти Case 1150C (224) - PARKING BRAKES - MANUAL (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
R33728
FRAME
- brake mounting
1шт.
2
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
5шт.
4
195-41
WASHER,5/8"
5шт.
5
R27485
PEDAL - manual brake, Includes: Ref. 6
1шт.
6
R29752
BUSHING
- pedal
2шт.
7
D35268
SHIM,1/32" Thk
(0.76 mm) 1/32" Thk
1шт.
8
R27501
SHAFT
- pedal
1шт.
10
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
1шт.
11
R29843
SPRING
- pedal return
1шт.
12
141-53
CLEVIS PIN,5/16" x .940"
plated 5/16" x .940"
4шт.
13
132-26
COTTER PIN
PIN, Split (Cotter), 3/32" x 3/4"
4шт.
R35826
CABLE
ASSEMBLY - parking brake, pedal, Includes: Ref. 14 - 17
1шт.
14
NSS
NOT SOLD SEPARAT
CABLE - brake
1шт.
15
NSS
NOT SOLD SEPARAT
CLEVIS - cable
1шт.
16
129-122
NUT,5/16"-24, G5
1шт.
17
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
D40687
LEVER
ASSEMBLY - brake, manual, Includes: Ref. 18 - 21
1шт.
18
NSS
NOT SOLD SEPARAT
LEVER - manual brake
1шт.
19
D42458
PIN
CLEVIS PIN - lever
1шт.
20
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
1шт.
21
132-26
COTTER PIN
PIN, Split (Cotter), 3/32" x 3/4"
1шт.
22
26-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8
- hex head, 5/16"-18 NC x 1-1/2", grade 8
2шт.
23
92-5
LOCK WASHER,5/16"
2шт.
24
D40685
SPACER
- manual brake lever
2шт.
R27494
CABLE
ASSEMBLY - manual brake lever, Includes: Ref. 25 - 28
1шт.
25
NSS
NOT SOLD SEPARAT
CABLE - manual brake lever
1шт.
26
NSS
NOT SOLD SEPARAT
CLEVIS - cable
1шт.
27
129-122
NUT,5/16"-24, G5
1шт.
28
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
30
D42809
PIN
CLEVIS PIN - 3/8", sheave
2шт.
31
D32543
SHEAVE
- cable pulley
2шт.
32
195-25
WASHER,3/8"
- flat, 3/8"
2шт.
33
132-26
COTTER PIN
PIN, Split (Cotter), 3/32" x 3/4"
2шт.
34
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
2шт.
35
92-6
LOCK WASHER,3/8"
2шт.
36
R26118
CLAMP
- cable, brake pedal
1шт.
Выбрано товаров: 38
