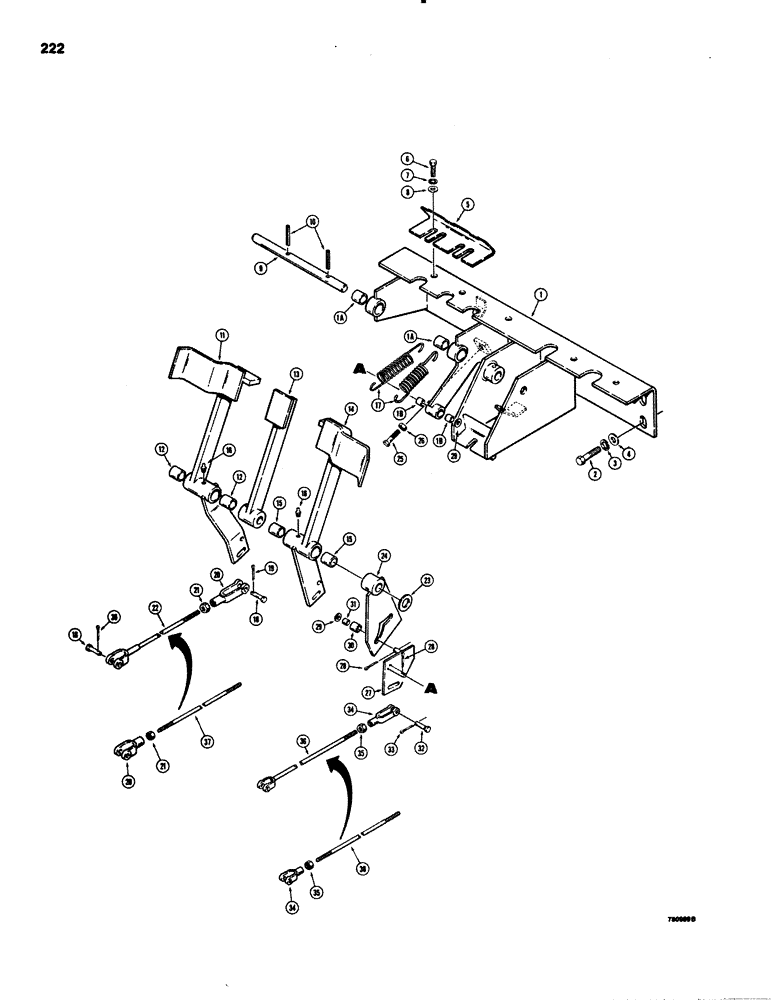

Запчасти Case 1150C (222) - POWER BRAKES (07) - BRAKES

1

R33728

FRAME

- brake mounting, Includes: Ref. 1A and 1B

1шт.

1a

R29752

BUSHING

- frame, pedal shaft

2шт.

1b

R27466

BUSHING

- frame, follower cam shaft

2шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

5шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

4

195-41

WASHER,5/8"

5шт.

5

R37371

SUPPORT

STOP - brake pedals

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

9

R27495

SHAFT

- brake pedals

1шт.

10

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

2шт.

11

R49048

PEDAL

- brake, left-hand, Includes: Ref. 12

1шт.

12

R29752

BUSHING

- pedal

2шт.

13

R27478

PEDAL

- modulator

1шт.

14

R27482

PEDAL

- brake, right-hand, Includes: Ref. 15

1шт.

15

R29752

BUSHING

- pedal

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

17

R29843

SPRING

- pedal return

2шт.

18

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

19

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

20

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end

2-4шт.

21

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

2-4шт.

22

REF

INSTRUCTION

ROD - brake control, includes clevis end, no longer used, order refs. 37, 20, and 21

2шт.

23

D35268

SHIM,1/32" Thk

(0.76 mm) 1/32" Thk

1шт.

24

R27491

CAM

- modulator

1шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

27

R33694

BRACKET

- cam follower

1шт.

28

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

30

R27497

COLLAR

BOSS - cam, Includes: Ref. 31

1шт.

31

R27466

BUSHING

- boss

1шт.

32

141-52

CLEVIS PIN,1/4" x .770"

- 1/4", plated

2шт.

33

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

34

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - rod end

1-2шт.

35

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1-2шт.

36

REF

INSTRUCTION

ROD - modulator control, includes clevis end, no longer used, order refs. 38, 34, and 35

1шт.

37

R46619

TRUSS ROD

ROD - brake control, without clevis end

2шт.

38

R46618

TRUSS ROD

ROD - modulator control, without clevis end

1шт.

39

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.
