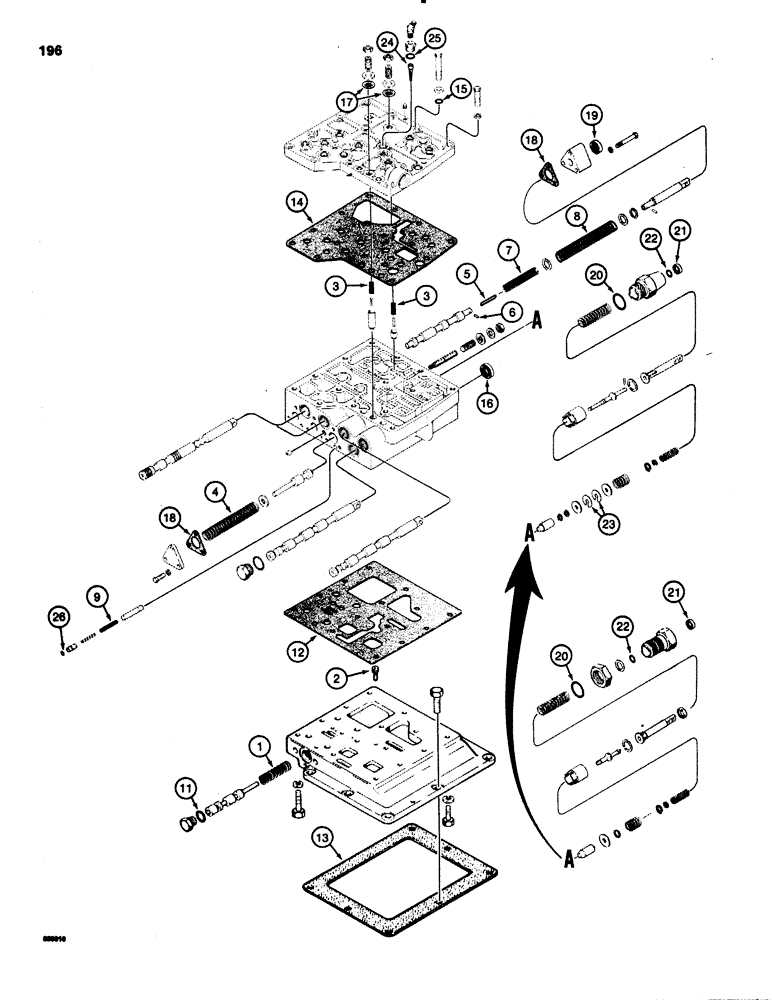

Запчасти Case 1150C (196) - TRANSMISSION SERVICE KIT, CONTROL VALVE OVERHAUL AND SEAL KITS (06) - POWER TRAIN

G101836

VALVE

KIT - overhaul, control valve, Includes: Ref. 1 - 26

1шт.

1

A50783

SPRING

- equalizer spool

1шт.

2

A51838

LOCK BOLT,1/4" - 20 x 0.75", Gr 8

SCREW - hex socket head, self-locking, 1/4" - 20 NC x 3/4"

1шт.

3

G100767

SPRING

- detent

5шт.

4

A50755

SPRING

- pressure regulator

1шт.

5

A51836

BRACKET

CLIP - brake spool return

2шт.

6

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

4шт.

7

A51839

SPRING

- brake actuator

2шт.

8

A50743

SPRING

- brake return

2шт.

9

A51837

SPRING

- range orifice spool

1шт.

10

G103916

VALVE

ASSEMBLY - modulator, parts list Figure 184, not shown

1шт.

G101835

GASKET KIT

KIT - seal, control valve, Includes: Ref. 11 - 26

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- spool plug

6шт.

12

G105098

GASKET

-, Serial Range: valve-base

1шт.

13

A50717

GASKET

- control valve spacer, top and bottom

2шт.

14

G107278

GASKET

- valve cover

1шт.

15

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- cover

1шт.

16

G105118

OIL SEAL

- valve body

5шт.

17

A50733

SEAL

- spool detent

6шт.

18

A50753

GASKET

- spool cover

5шт.

19

G105700

OIL SEAL

- brake actuator rod

2шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- modulator valve, large

1шт.

21

A50768

WIPER SEAL

- modulator rod

1шт.

22

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- modulator rod, small

1шт.

23

A142027

SHIM

- modulator valve, 0.005" (0.127 mm) thick

2шт.

23

A142028

SHIM

- modulator valve, 0.007" (0.178 mm) thick

2шт.

24

A50763

VALVE

FILTER - modulator valve

1шт.

26

A51274

O-RING,0.145" ID x 0.285" OD

- plug, range orifice spool

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- filter plug

1шт.
